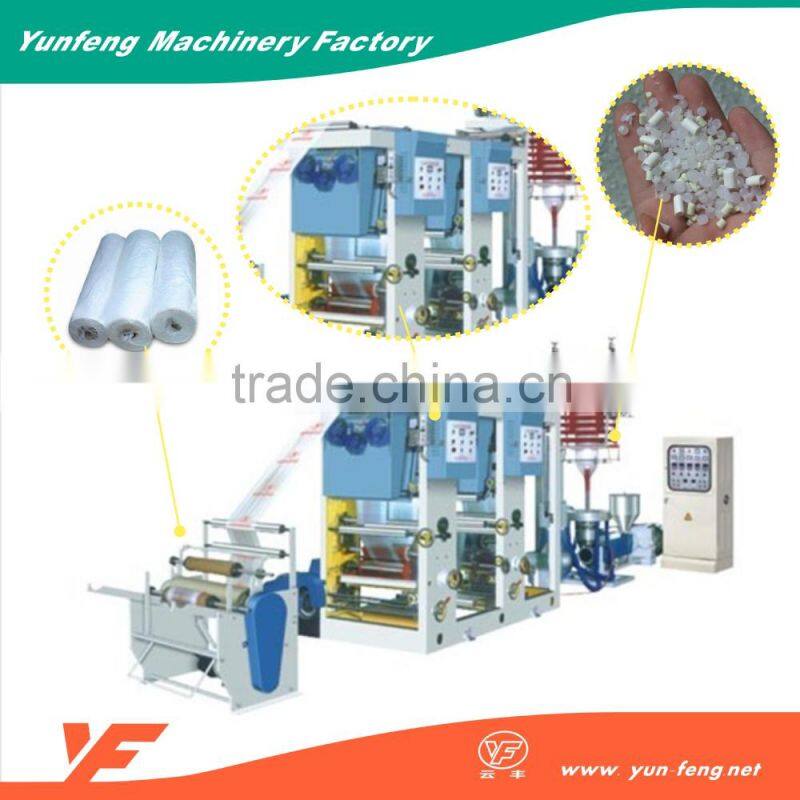

Film Blowing & Printing Connect-line

Film Blowing & Printing Connect-line photo-1

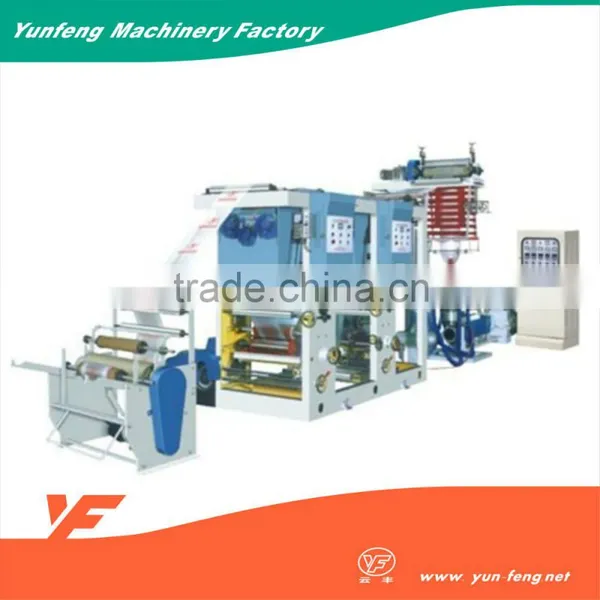

Film Blowing & Printing Connect-line photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Other, High Quality Film Extruder And Printer
Place of Origin Zhejiang, China
Brand Name YUNFENG
Model Number YF-FE
Voltage 220v 380v 440v
Power(W) 28kw 32kw 40kw
Dimension(L*W*H) 6000 x 2400 x 4000mm
Weight 3.5T 4T 5T
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

 Film Blowing & Printing Connect-line

Advantages:

1.All machines before shipment, we will examin and test it.(if customer come, we will waiting for you coming).

2.Our after-sale service is perfect. We have some engineer to test machine in foreign all over year. If you need engineer to test, we can arrange it.

3.Prompt Reply Within 12 Hours.

 4.Production quantity about 200-300sets each year.

Film Blowing & Printing Connect-line

 Film Blowing & Printing Connect-line







It is applied for to blowing plastic films like low density polythene (LDPE), high-density polythene (HDPE) and linear low density polythene (LLDPE),etc. It is widely applied to packing foodstuff, clothing, rubbish bags, vest ones, vest ones, etc. In the civil and industries sectors.



Type

45/600

55/800

60/1000

Suitable material

LDPE,HDPE

LDPE,HDPE

LDPE,HDPE

Screw diameter(mm)

Φ45

Φ55

Φ60

Screw(L/D)

28:1

28:1

28:1

Blowing film driving motor(kw)

11

15

18.5

Max.Extrusion output(kg/h)

35

50

70

Die size(mm)

40-80

80-130

100-160

Width of blowing film(mm)

600

800

1000

Thickness of blowing film(mm)

0.008-0.140

0.008-0.140

0.008-0.140

Printing length(mm)

250-1000

250-1000

250-1000

Precision of color printing(mm)

0.2/0.2

0.2/0.2

0.2/0.2

Weight of overall(kg)

4300

5000

6200

Cover dimensions(L×W×H)(mm)

7500×2000×3200

8000×2400×4000

8500×2600×4600



Film Blowing & Printing Connect-line

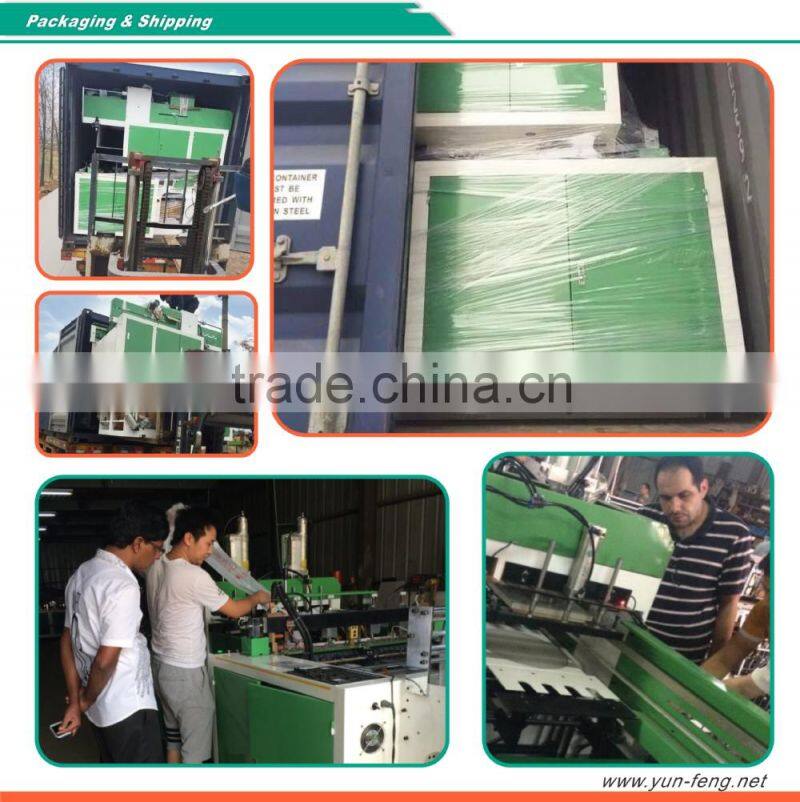

Packaging & Shipping



Payment:T/T 30% with the order,70% before the shipment

Delivery time:30-40 days

Packing:By standard export packing.

Installation: If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer.

Guarantee:One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life.







Add:Baixiang Industrial Zone,Ruian Wenzhou Zhejiang China.

Tel:+86-0577-65595931

Fax:+86-0577-65056335

Skype:miaoyuwei1205

Mob:86-13780172923



FAQ





1.   Q: Are you a factory or trading company?



A:We are factory .we are film extrusion machines,printing machines,bag making machines,slitting machines and other related machines manufacturer nearly 20 years.



2. Q: Where is your factory located? How can I visit there?



A:Our factory is located in Rui'an City, Zhejiang Province, China.The nearest airport is Wenzhou airport,From Shanghai to Wenzhou by air about 1 hour.we can go Wenzhou airport pick you.



3. Q: How about you to keep the quality and th after—sales service?



A:Our idea is“QUALITY IS THE FIRST IS THE MAOST IMPORTANT".We insit for the long time business, not once time business. From beginning to end, we will reply and try to solve within 12 hours.



4. Q: How about the payment term?



A: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.



5. What about warranty and do the engineers available to overseas?



A: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.But buyer need provided the ticket,food,hotel cost etc.



6.What about the service after sale?



A: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to slove the problem.



7.How about machine testing?



A: If you come,we will test machine with you toghther,If you need special material to test,please take it.If you cant come.we will test it by ourselves and send the video to you for your reference.
