Automatic Dispenser/automatic dispensing machine/glue dispensing machine
Applications:
1,LED package
2,Mobile phone plate coating or dispensing button
3,Speaker Dispensing
4,Dispensing sealing the battery case
5,The semiconductor package
6,Power component package
7,chip binding
8,Fixed and protected PCB electronic components
9,LCD glass board package
Automatic Dispenser/automatic dispensing machine/glue dispensing machine features
1,Could be a particular dispensing operations, mechanized production
2.Simple and convenient to operate, high-speed precision
3.Program files can be uploaded/downloaded through U disk,easy to manage
4.Has control buttons on the needle, no external teaching is more convenient than similar products debugging
5,Used LCD 5-inch color screen display
6,Does not cause noise pollution to production sites
7,Enabling 3D dispensing systems, regardless of any comple shape and dispensing path can be accurately completed
8,Can be equipped with single-tube or pipe dispensing, improve efficiency in the realization of different glue or dispensing path
9,Used for in all kinds of demand dispensing industry, such as:general common UV plastic, silicon, EPOXY, red gum, paste,AB glue,
COB vinyl, conductive plastic, aluminum heat glue,instant glue,paste and other points glue, can be used on the D-series devices.
Automatic Dispenser/automatic dispensing machine/glue dispensing machine specification
| Travel RangeX/Y/Z |
300/300/100(mm) |
| Table Max Load |
10KG |
| Z Axis |
4.5KG |
| Moving SpeedXY/Z |
0.1-800/400(mm/sec) |
| Analytical Ability |
0.01mm/Axis |
| Repeatability |
±0.01mm/200mm |
| Program Recording Capacity |
1000 |
| Display |
5 Inch LCD |
| Motor |
Japan micro-level precision stepper motor |
| Moving Mode |
Point to point, Continuous line |
| Transmission |
Japanese belt,Precision linear guide |
| Motion Makeup Function |
3 Axis |
| Edit Mode |
Teach box or computer file input |
| I/O Signal |
6In puts 6 Out puts |
| Power |
AC 220V/350W |
| Operating Temperature |
5-40℃ |
| Operating Humidity |
20-90%(no condensation) |
| Size(mm) |
522 x 560 x 565 |
| Weight(kg) |
62.5 |

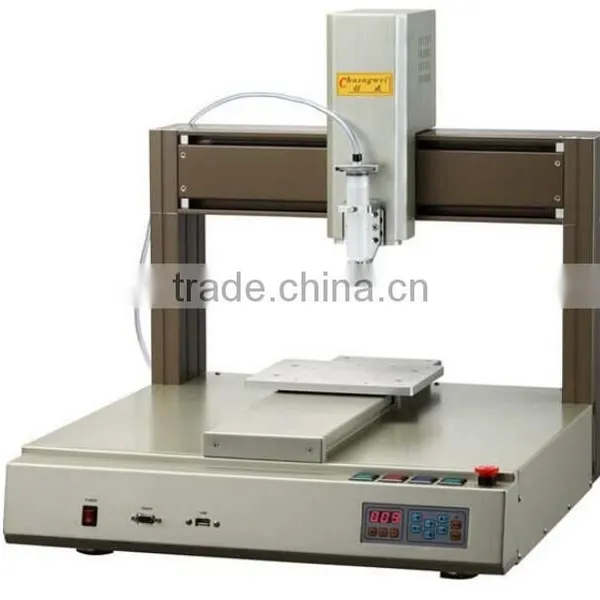

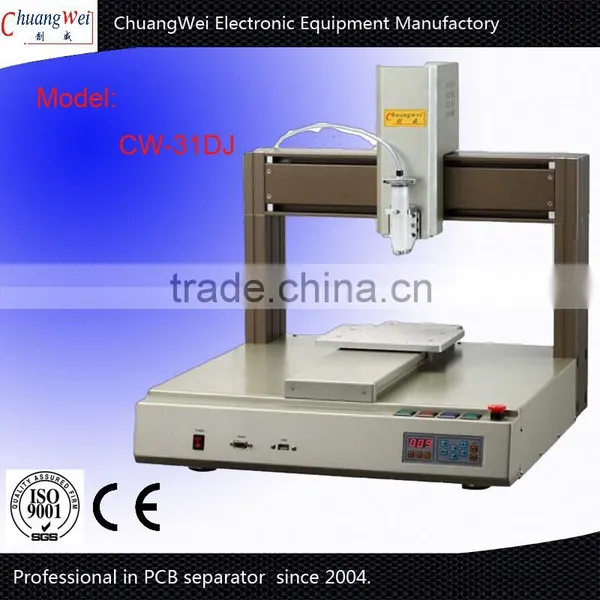

Automatic Dispenser/automatic dispensing machine/glue dispensing machine detail image
Automatic Dispenser/automatic dispensing machine/glue dispensing machine detail image

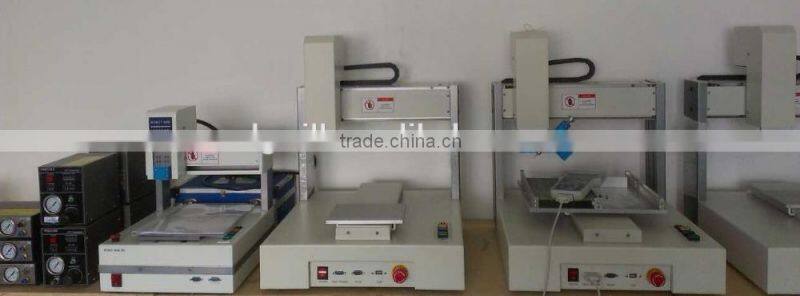

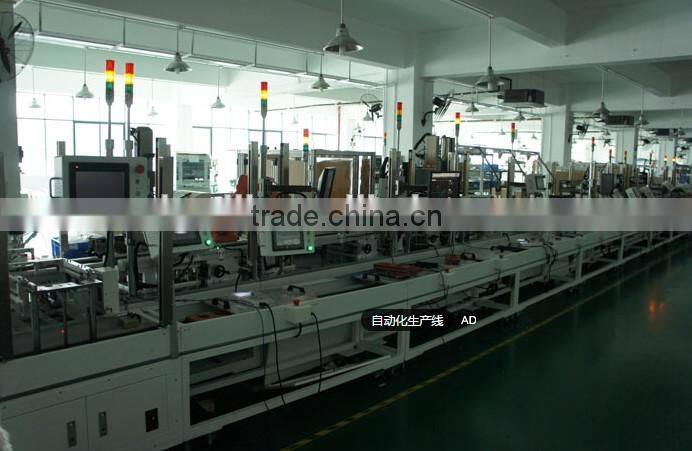

Automatic Dispenser/automatic dispensing machine/glue dispensing machine processing
Automatic Dispenser/automatic dispensing machine/glue dispensing machine partners
Automatic Dispenser/automatic dispensing machine/glue dispensing machine
