Automatic Glue Dispensing Machine, Dispensing Controller Supplier
US$ 11111.00 - 11111.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chuangwei
Model Number:
CWDJ-1A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMT Industrial Welding Machine/welding Machine Specifications for Electronic Appliances Production LineUS$ 111 - 11,111MOQ: 1 Set -
*Blade Rolling Type V-CUT PCB Depanelizer***depaneling Short or Long Rigid PCB **CWVC-1SUS$ 1 - 1,200MOQ: 1 Set
-
Economic Pcb Separator Quipment in Guangdong CWVC-1SJUS$ 1 - 1,200MOQ: 1 Set
-
ChuangWei Mini Type High Speed PCB Cutter CWVC-1SJUS$ 1 - 3MOQ: 1 Set
-
Factory Made PCB Separation PurchaseUS$ 1 - 3MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
chuangwei
Model Number
CWDJ-1A

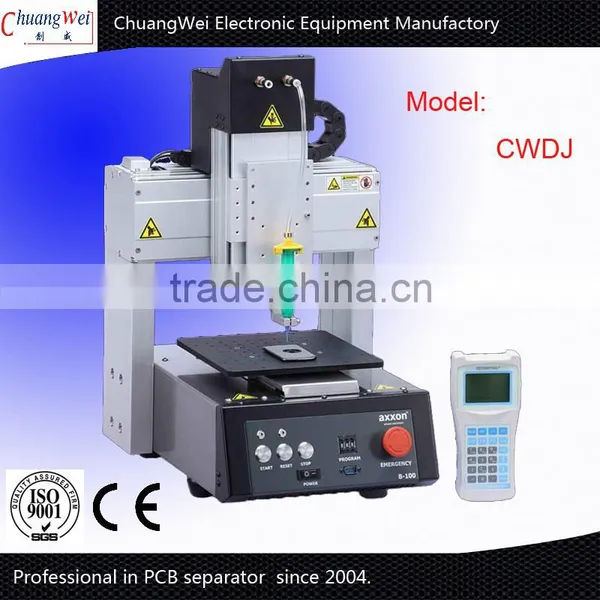

automatic glue dispensing machine, dispensing controller supplier
| Repeatability | +/- 0.01mm / axis |
| Resolution | 0.01mm/axis |
| Data memory | 100 programs, 4000 points/program |
| Data storage | CF card |
| Program Display | Teach pendant LCD |
| Operation system | PTP (point to point) & CP (continuous path) |
| Interpolation linear/circular | 3 axis |
| Program method | Teach pendant |
| I/O signals | 8 inputs / 8 outputs |
| External interface | RS232 |
| X/Y/Z working area (mm) | 300/300/100 |
| Load worktable | 10.0kg / 5.0kg |
| Speed PTP X&Y/Z (mm/sec) | 0.1~800/500 |
| Power supply | AC 90~260V 300W |
| Operating temperature | 10~40°C |
| Motor system | Micro stepping motor |
automatic glue dispensing machine Specification
1. English keyboard operation, easy to learn and easy to understand;
2. With a draw point, line, surface, arc, circle. Irregular curves and three-axis continuous interpolation functions such linkage;
Common application scope: automobile mechanical parts coating, cell phone buttons point glue, mobile
phone battery packaging, laptop battery package, the coil point glue, PCB bond fixed sealant, IC sealant, hornexternal punctuate glue,
PDA sealant, LCD sealant, IC packaging, IC bonding, casing bonding, optical device processing, mechanical seal, etc.
Applicable fluid: silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease,
silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.
Main use: the product in the process of bonding, infusion, coating, sealing, filling, drop, linear/arc/round glue,etc.

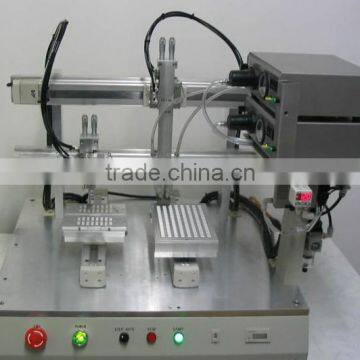

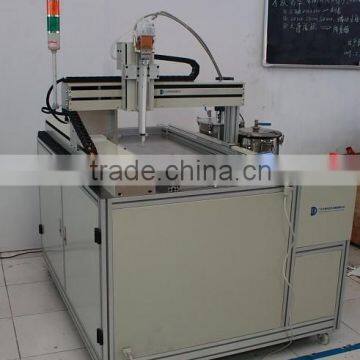

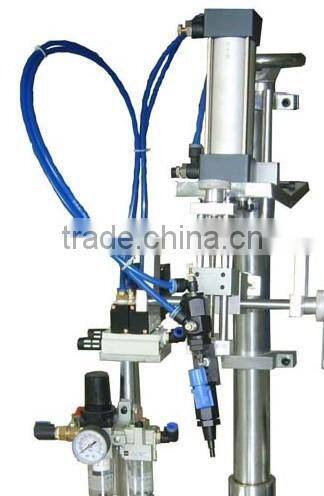

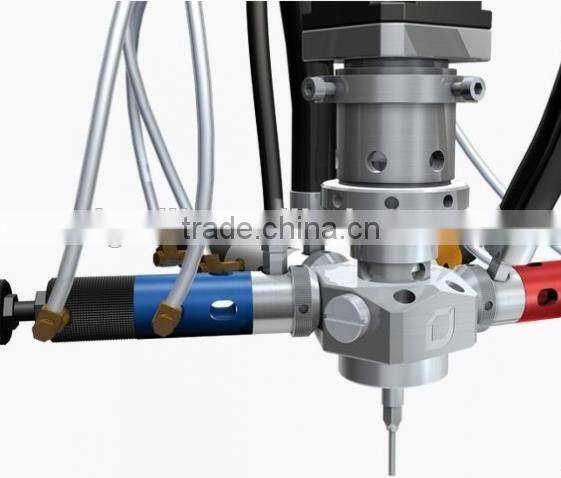

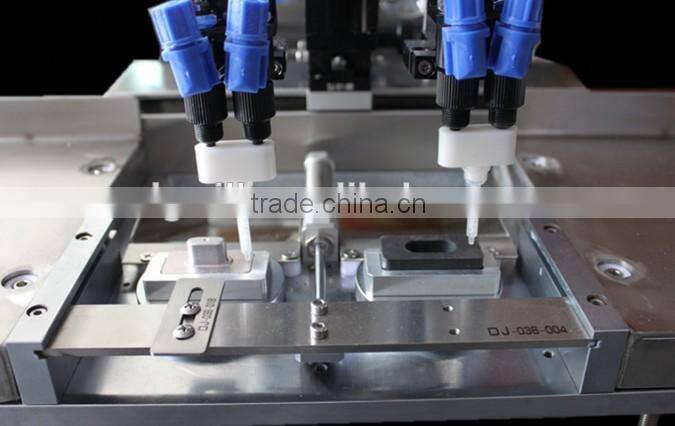

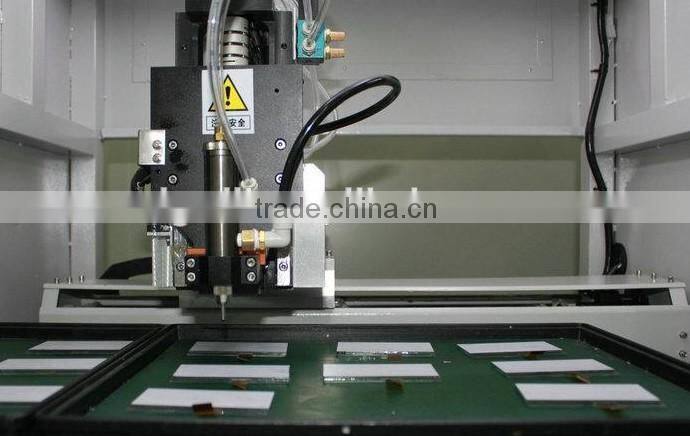

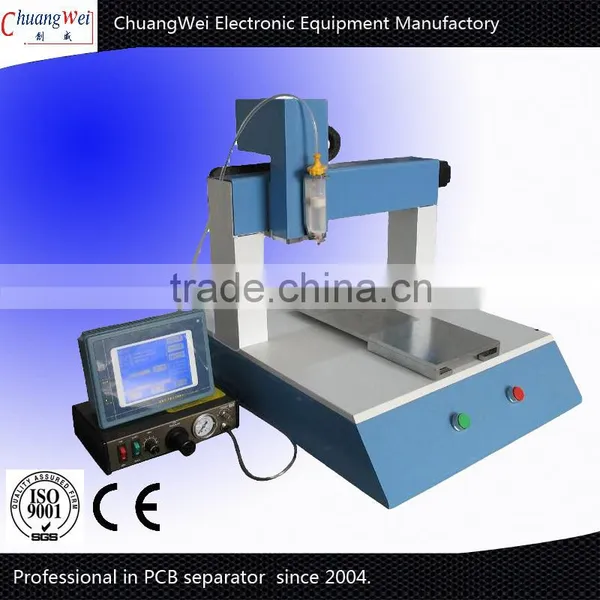

automatic glue dispensing machine detail image

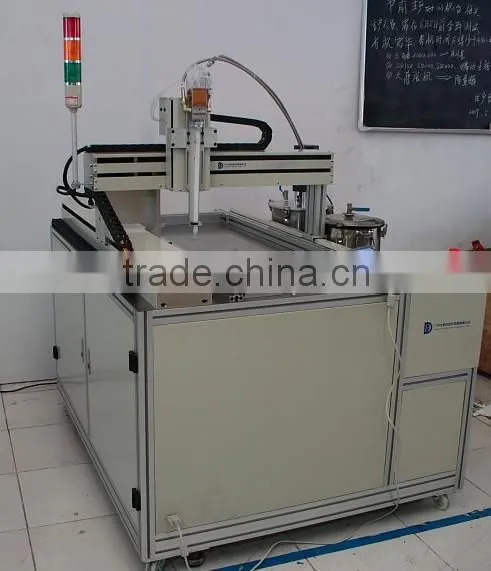

automatic glue dispensing machine detail image

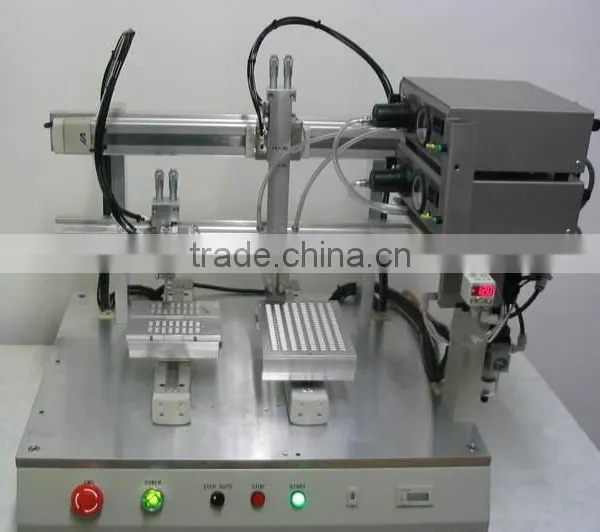

automatic glue dispensing machine detail image

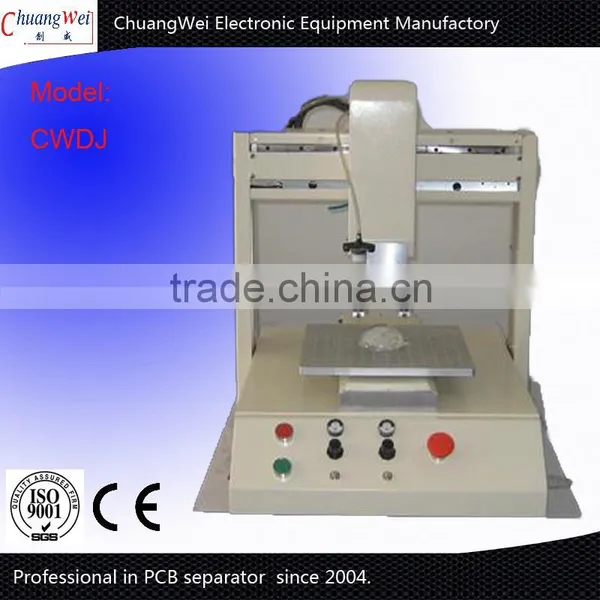

automatic glue dispensing machine detail image

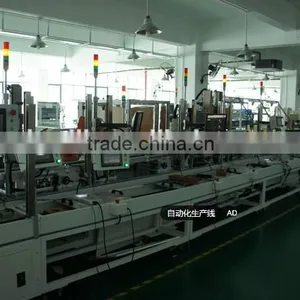

automatic glue dispensing machine process
