hot bar machine for Electronic Appliances Production Line
features
1.Closed Loop PID temperature control with visible LED display
2.LCD display programmable pressure switch for precise force control
3.Each heating cycle is triggered by a real time pressure sensor
4.Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5.Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6.Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7.Parts registration is adjusted by micrometer and secured by vacuum
lock
8.Optional CCD system for fine pitch component
hot bar machine specification
| Model | CWPP-1A |
| Max. Working Area | 200mm X 260mm |
| Fixture | 1 set |
| working air pressure | 0.45-0.7Mpa |
| Temperature setting | 20-500°C |
| Temperature precision | ±2°C |
| hot-pressing time | 1-99 s |
| force head pressure | 0.1-0.6 MPa |
| voltage | 110V/220V |
| Size | 620mm X 690mm X 570mm |
| Weight | 90Kg |
| momentary welding Power | 2000W |

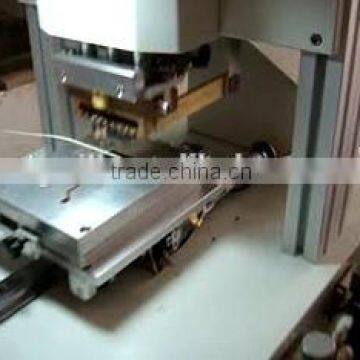

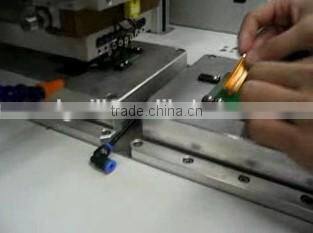

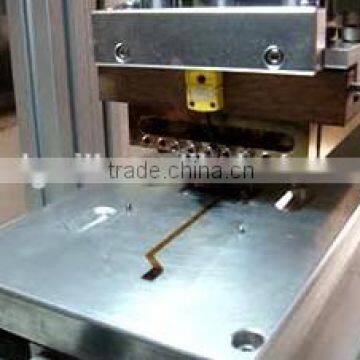

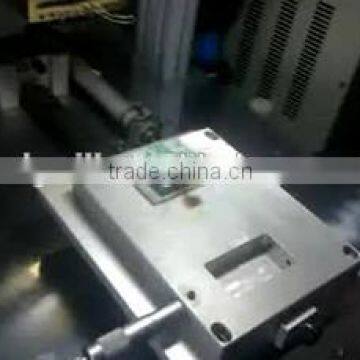

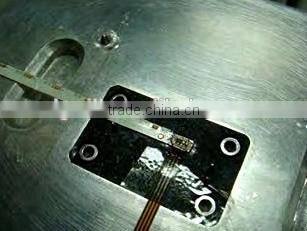

hot bar machine detail image
hot bar machine detail image
hot bar machine detail image
hot bar machine detail image

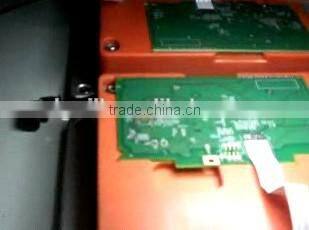

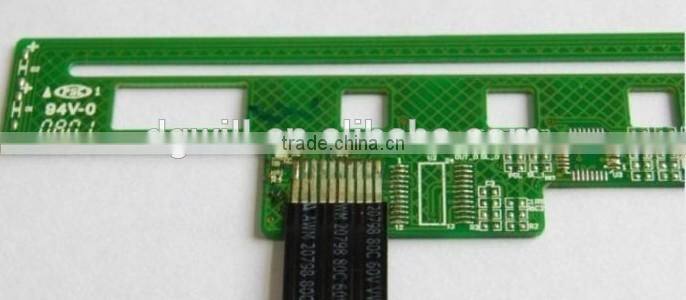

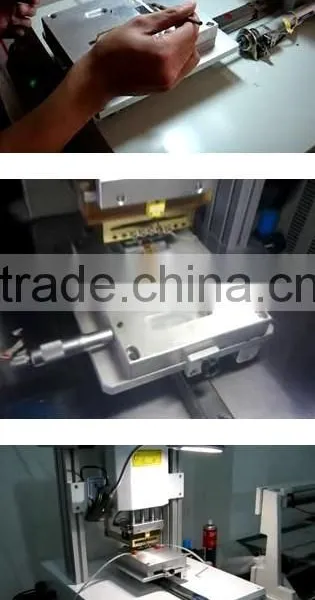

hot bar machine process

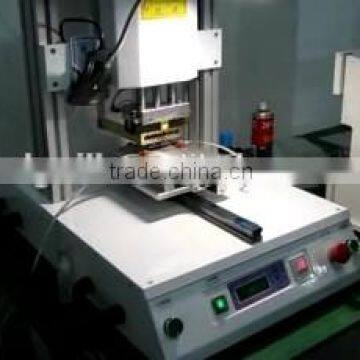

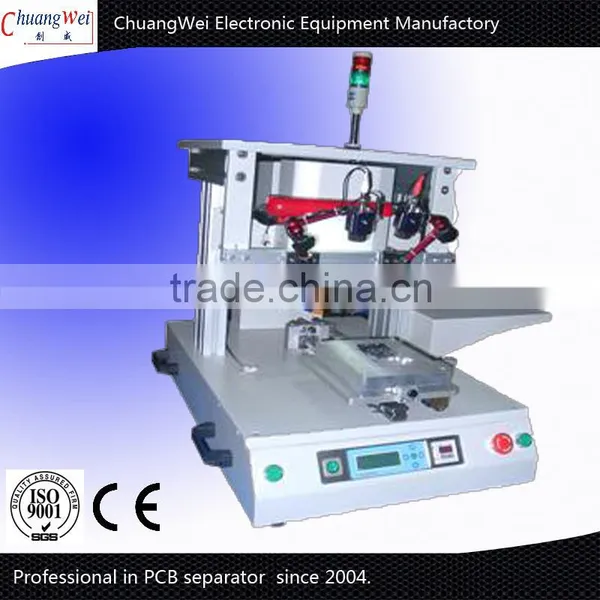

hot bar machine

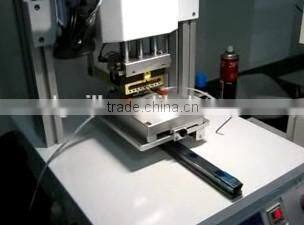

hot bar machine for Electronic Appliances Production Line
