Linear Vibrating Feeder

Specifications

vibrating feeder:
1,stable vibration, uniform feed amount
2, ISO 9001:2008
3,easily control the strength
4,6 months warranty

vibrating feeder perfect design,

Our vibrating feeder adopts linear vibrating feeding and the whole-base structure. Though the stepless adjustment the angle of eccentric block, you can control the vibrating strength conveniently and the amounts of feeding.

Advantages,

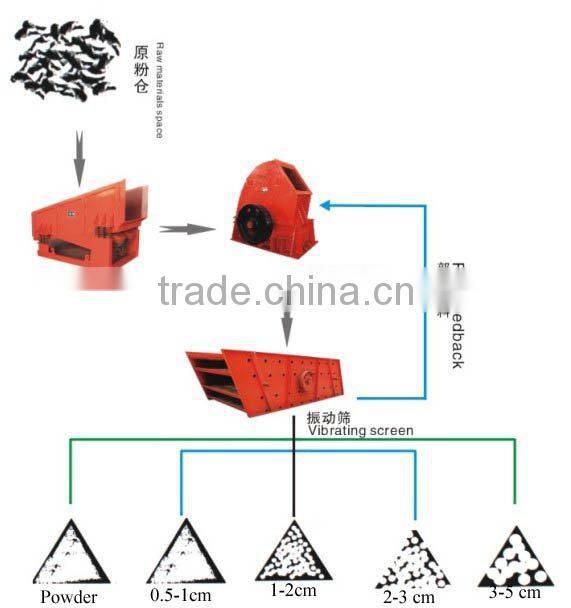

It is steady vibrating, reliable working, flexible adjustment, easy installment and so on. It is efficient to reduce the working cost and the pressure of workers, so it is the perfect machine as the continual and uniform feeder for stone crusher.

Our warranty,

We always offer our machine on the base of the result from our test basis, the feedback from our clients, and the research from our R&D, so we can guarantee the quality and function of our machine. We have more than 160 excellent and diligent workers and based on the advanced equipment so we can deliver the order on time and can meet the urgent requirements on terms.

We have many high quality installers; they are ready to serve you all the time. We have the best after-sale service, based on these terms, we are developing all the time and our scale is enlarging gradually.

Specification and parameters,

Types	Chute size mm(W×L)	Feeder size mm	Capacity t/h	Matched motor		Power KW	Theoretical Weight KG	Price FOB Chinese main port USD
				Motor size	Strength KN
ZG 0808	810×2800	≤450	60-100	YZU-30-6	30	2.2×2	2268	9144
ZG-0928	850×2800	≤500	80-120	YZU-40-6	40	3×2	2370	9480
ZG-1028A	970×2800	≤600	150-200	YZU-40-6	40	3×2	2431	9724
ZG-1028B	1000×2800	≤650	150-200	YZU-40-6	40	3×2	2449	9796
ZG-1128	1070×2800	≤700	200-250	YZU-50-6	50	3.7×2	2543	10172
ZG-1228	1255×2800	≤750	220-270	YZU-50-6	50	3.7×2	2830	11320
ZG-1328	1255×2800	≤800	220-280	YZU-75-6	50	4×2	2854	11416
ZG-1428	1350×2800	≤900	260-320	YZU-75-6	75	5.5×2	4065	16260
ZG-1528	1500×2800	≤1000	300-400	YZU-75-6	75	5.5×2	4196	16784
ZG-1828	1800×2800	≤1200	350-480	YZU-100-6	100	7.5×2	5021	20084









































Notes: The parameters are lust for reference, and the real data subject to the real products. We can produce the products according to the clients’ requirements.
