Specifications
sand washing machine priceISO 9001:2008
1.high clean ratio,reasonable structure,low power,less sand away
2.seperated from

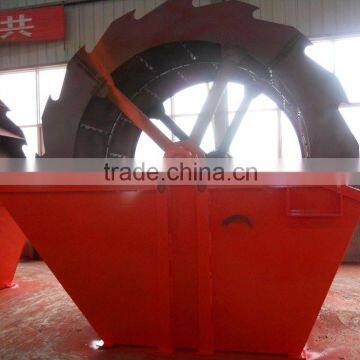

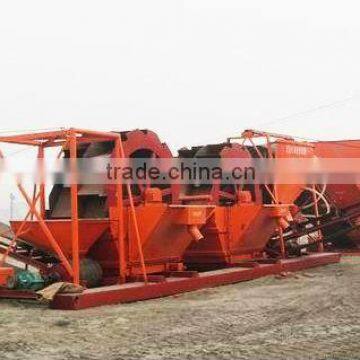

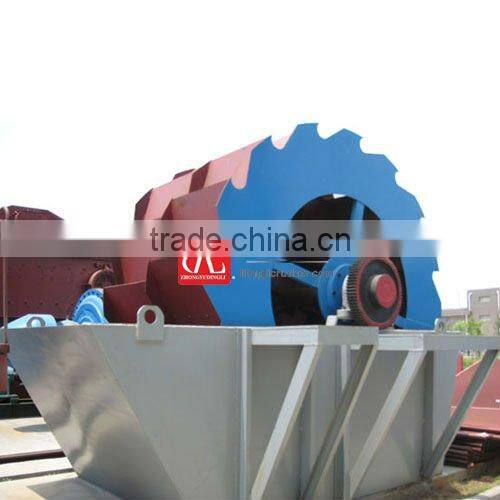

Dingli Industry sand washing machine XS series
XS series sand washer,with wheel structure,is the cimpulsory sand washing product for sand making machine.It can wash stone powder and residual away from the mixed sands produced by sand making machine,improve the sand quality mostly.
XS sand washer,adopting advanced technology and taking the stone sand industry's practical condition into consideration,is applied to wash,grad and dehydrate in sandstone factory,construction site,hydroelectric station dam,glass manufacturing and oil well development,These series sand washers are characterized as high clean ratio,reasonable structure,low power,less sand away.Especially,the moving parts are separated from the water and sand,so the stoppage is greatly less the traditional machine,and it is the first choice for sand washing.
We always offer our machine on the base of the result from our test basis,and the feedback from our clients,and the research from our R&D,so we can guarantee the quality and function of our machine.
construction manufacturer: sand washing machine
The XS series Wheel construction sand washing machine manufacturer which producted by my company is a kind of bucket-wheel-washing equipment, can separate sand and powder from the soil, is widely used in construction sites, gravel plants, concrete hydropower dam site and many other industries. Its novel seal structure, reliable transmission, ensuring the cleaning effect of dehydration, is an efficient sand washing equipment cooperate with the sand making machine.
manufacturer advantages: sand washing machine
1. The wheel construction sand washing machine manufacturer has simple structure, the impeller drive bearing devices and materials, water were isolated, greatly to prevent the bearing due to flooding, sand and pollutants lead to the damage of phenomenon.
2. Very little loss of the thin sand and the powder-fine, almost no wearing parts except screen.
3. long life, long time without maintenance.
work principle: sand washing machine
When the wheel construction sand washing machine manufacturer worked, the motor drive the impeller slow rotation through the V-belt, reducer, gear reducer, sand and gravel are carried into the washed tank trough the feeder tank, tumbling by the impeller, grinding each other to remove the impurities which cover on the gravel surface, while destroying the vapor-coated layer of sand to facilitate dehydration; as the same time, add water to create a strong water flow to remove impurities in time, and issue from the export of washing tank, so that to complete the cleaning effect. Clean sand and gravel away from the blade, at the end the gravel was poured from the rotation of impeller to the exit of tank, so complete the gravel cleaning effect.
Main Parameters: sand washing machine
| Model | Inpeller dia. | Feeding size | Capacity | Power | Weight | Dimension |
| XS2615 | 2600x1500mm | <10mm | 30-80t/h | 7.5kw | 2700kg | 3320x2200x2670mm |
| XS3016 | 3000x1600mm | <10mm | 80-160t/h | 18.5kw | 4300kg | 4500x3206x3480mm |
| XS3500 | 3500x1000mm | <10mm | 120-600t/h | 11kw | 9900kg | 4420x2930x3800mm |
packaging : sand washing machine
our company: sand washing machine
1) Xinxiang Dingli Mine Equipment CO., LTD is the leading manufacturer of hammer crusher,jaw crusher,impact crusher,vibrating screen,vibrating feeder, sand making and washing machine, belt conveyor, relevant drilling rig and etc. Our company has passed ISO quality certification,CE, quality system certificate and are also AAA grade reputable enterprise, Top 10 Famous Brand of Chinese Crushing Machine, Sandstone Association Mmbership Unit, and Enterprise of Taking the Contract First and Laying Stress on the Prestige etc.
2).Xinxiang dingli stone production line is based on field survey site conditions and actual customer requirements, the combination of various types of equipment, designed to provide customers a full set of stone production line equipment, to meet the needs of customers of different processes, with a large capacity, low energy, good quality aggregates, low powder output, low wear distinctive feature, fully embodies the rationality, effectiveness and suitability of the design.
Why Choose Us ?
hammer mill stone crusher price
Over 10 years experience in this field.
Exported to more than 30 countries in Africa, Asia, America.
Processional Research and Development team; Strict quality control.
Provide complete service equipment installation, testing ,maintenance and staff training.
Welcome your inquiry ! If you are interested in our equipments , please do not hesitate to contact us. We will reply you the details ASAP.
