Help Center30-80 T/h Sand Washing Plant
Related Products
-
80 T/h Sand Washing Machine Used in Sand MineralUS$ 3,001 - 10,001MOQ: 1 Set -
Efficient Sand Washing Machine Manufacturer of ChinaNegotiableMOQ: 1 Set
-
30-80 T/h Sand Washing MachineUS$ 9,999 - 60,001MOQ: 1 Set
-
Sand Washing Machine Artificial Sand MakingNegotiableMOQ: 1 Set
-
Artificial Sand Washer Manufacturer of ChinaNegotiableMOQ: 1 Set
Specifications
sand washing plant1. low energy comsumption
2. Innovative sealed structure
3.acting by rotating screw blade

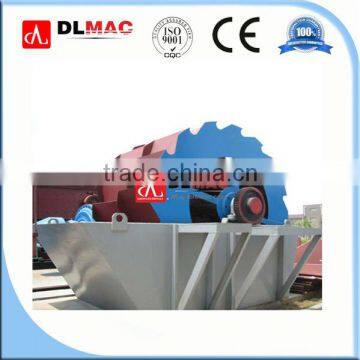

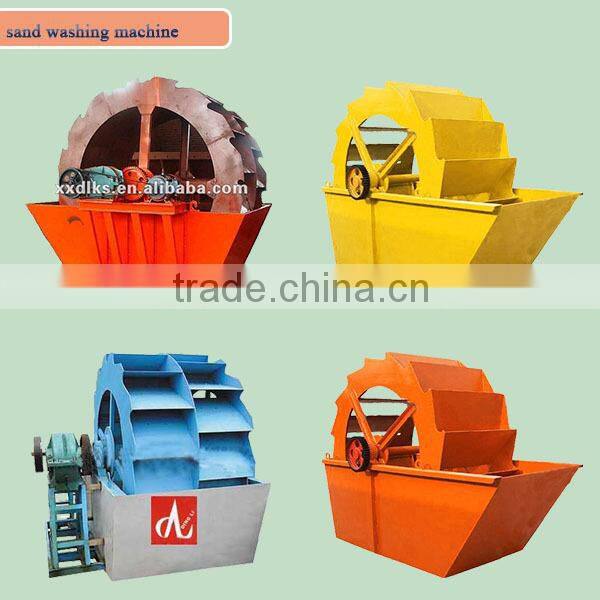

30-80 t/h sand washing plant
1-Features and Benefits--- sand washing plant
- Reasonable structure, stable performance, large output, high cleaness, low energy comsumption, less sand loss.
- Innovative sealed structure, fully enclosed oil bath type transmission device and adjustable overflow weir plate ensure its high-efficiency, good filtration effect, fine finished grain

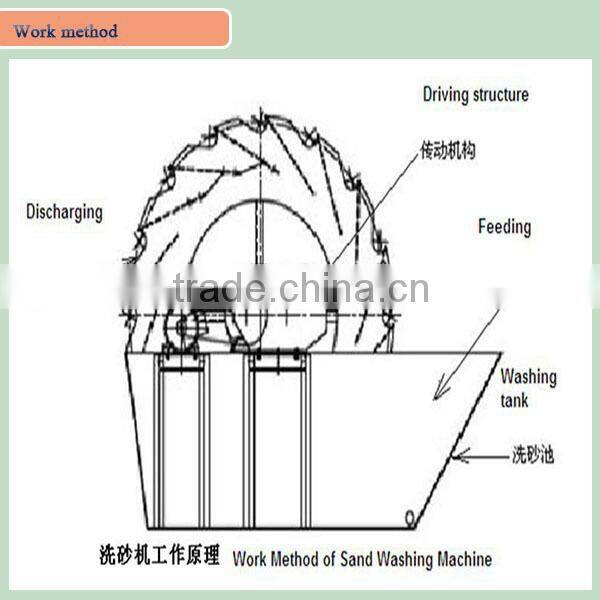

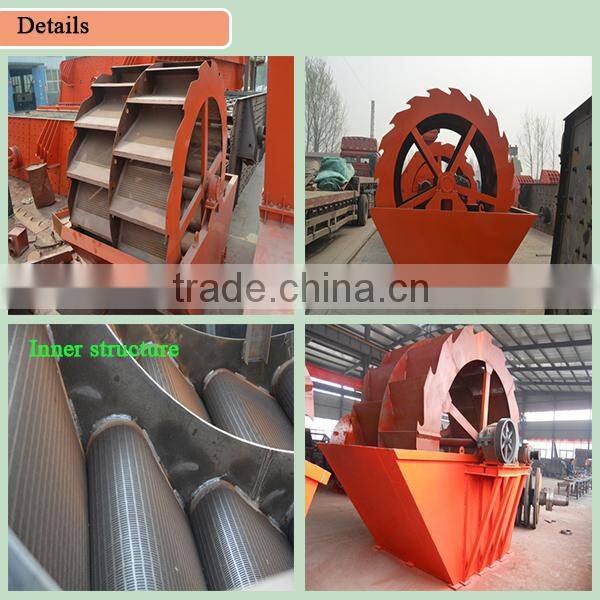

2-Working principle--- sand washing plant
- The sand is feeding into the sediment pool from the feeding box, acting by rotating screw blade, the sand is turning and rolling and grinding each other to eliminate impurity and water-air layer around sand to facilitate de-water. The fresh eater rising current from the porous plate carry foreign matter to water surface and overflow the weir plate, to finish washing processing
- The sand with bigger density sink down to tub bottom; the screw blade push this sand upwards, when passing through upper tub of proper length above water level, the water is draining into sediment pool from another drainage ditch, the de-watered sand is out from the discharging opening.
| Model | Inpeller dia. | Feeding size | Capacity | Power | Weight | Dimension |
| XS2615 | 2600x1500mm | <10mm | 30-80t/h | 7.5kw | 2700kg | 3320x2200x2670mm |
| XS3016 | 3000x1600mm | <10mm | 80-160t/h | 18.5kw | 4300kg | 4500x3206x3480mm |
| XS3500 | 3500x1000mm | <10mm | 120-600t/h | 11kw | 9900kg | 4420x2930x3800mm |
4-Packaging & Delivery of sand washing plant
Packaging Detail: standard export
Delivery Detail: 20 days after down payment

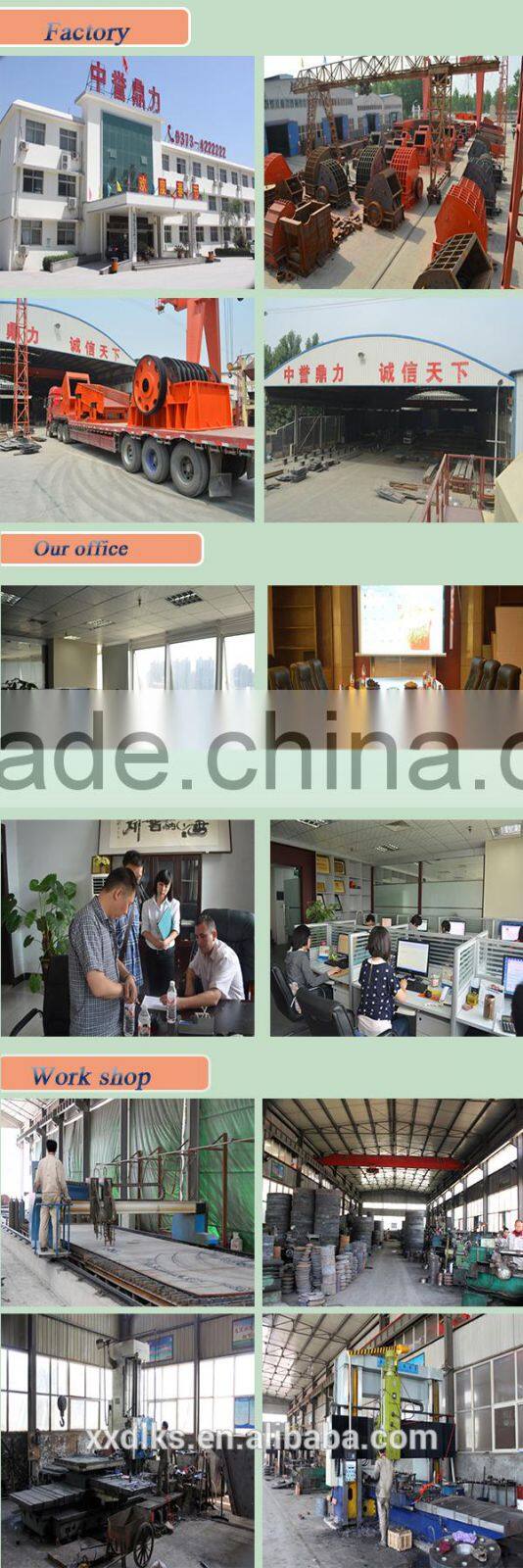

1-Introduction

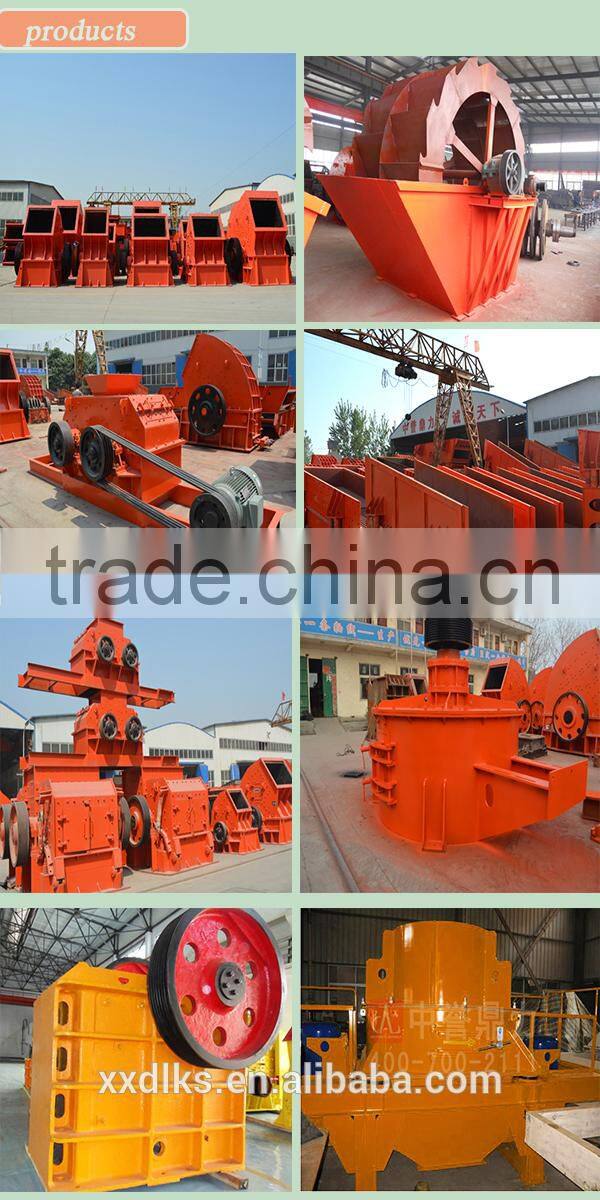

1) Xinxiang Dingli Mine Equipment CO., LTD is the leading manufacturer of hammer crusher,jaw crusher,impact crusher,
vibrating screen,vibrating feeder, sand making and washing machine, belt conveyor, relevant drilling rig and etc.
2) Our company has passed ISO quality certification,CE, quality system certificate and are also AAA grade reputable enterprise,
Top 10 Famous Brand of Chinese Crushing Machine, Sandstone Association Mmbership Unit, and Enterprise of Taking the Contract First and Laying Stress on the Prestige etc.
2-Development
Xinxiang city which have about 200 employees for mining equipme Our company has independently developed a range of products, not only represent the advanced international level in the same industry, and gain praise from customers at home and abroad with the advantages of high-quality and low power consumption.
The range of products includes rock crushing and screening machinery, drilling rigs.Our customers can be found in virtually every corner of the earth, and we realize our success comes directly from helping our customers be successful.
1.Xinxiang dingli stone production line is based on field survey site conditions and actual customer requirements, the combination of various types of equipment, designed to provide customers a full set of stone production line equipment, to meet the needs of customers of different processes, with a large capacity, low energy, good quality aggregates, low powder output, low wear distinctive feature, fully embodies the rationality, effectiveness and suitability of the design.
hammer mill stone crusher price

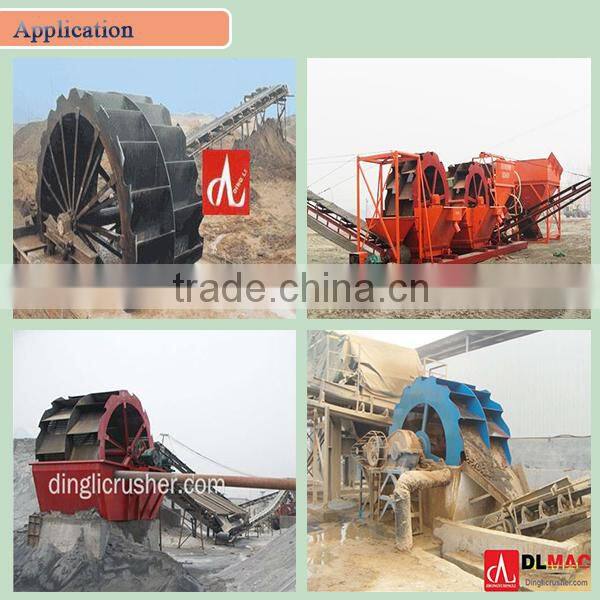

2.Stone production line can be used to aggregate and artificial sand operations hard limestone, granite, basalt, river pebbles, smelting slag and other materials and more widely used in water and electricity, building materials, highway, urban construction and other industries and fields in the surface layer of material production and processing freeway, highway road gravel, sand and gravel aggregate high-speed rail passenger line, hydroelectric sand and gravel, port and airport runway is particularly suitable for areas with special construction materials such as gravel
Over 10 years experience in this field.
Exported to more than 30 countries in Africa, Asia, America.
Processional Research and Development team; Strict quality control.
Provide complete service equipment installation, testing ,maintenance and staff training.
Welcome your inquiry ! If you are interested in our equipments , please do not hesitate to contact us. We will reply you the details ASAP.
