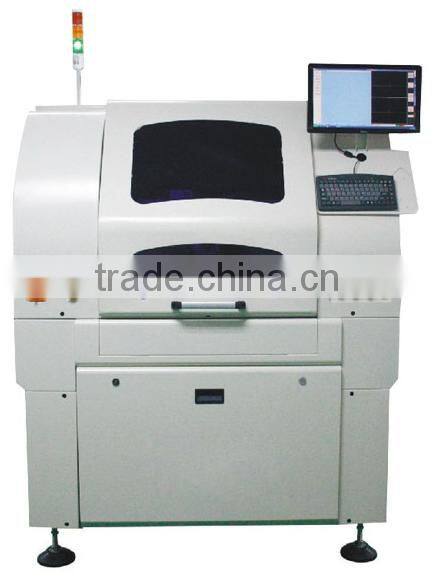

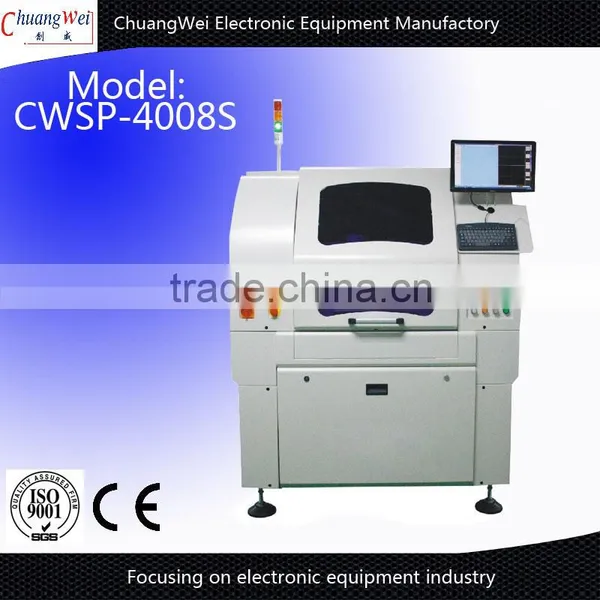

Help CenterManual Screen Printer for PCB Solder Paste Dispenser Printer With Vision
Related Products
-
Screen Printer for PCB Solder Paste Dispenser Printer With Vision SWSP-4008DUS$ 1 - 22,222MOQ: 1 Set -
Screen Printer for PCB Solder Paste DispenserUS$ 1 - 2MOQ: 1 Set
-
Screen Printer for PCB DispensingUS$ 1 - 2MOQ: 1 Set
-
Automatic Pcb Depaneling MachineUS$ 30,000 - 35,000MOQ: 1 Set
-
ac dc Tig 315 Pulse Welding MachineUS$ 121 - 5,532MOQ: 1 Set
Features
1. With digital pressure feedback of screw lift direct type scraper
2. Fast three-stage PCB transport system
3. Patented double camera high rigid stencil adjusting closed-loop registration system
4. Automatic and effective stencil cleaning system
5. Automatic and effective frame positioning
6. Humanized operation interface
| Item | SWSP-4008S | ||
| Accuracy | Accuracy | ±0.015mm | |
| Repeating Accuracy | ±0.005mm | ||
| Cycle Time | <9s | ||
| Stencil | Stencil Size | 470*380~737*737mm | |
| Stencil Positioning | Air valve | ||
| frame adjustment | frame adjustment | ||
| Stencil adjustment range | X:±15mm Y:±15mm | ||
| Stencil adjustment range | θ±2° | ||
| Stencil adjustment range | X:±15mm Y:±15mm | ||
| PCB | PCB Printing Size | 50*50~400*300mm | |
| PCB Thickness | 0.4~5mm | ||
| Transport Hight | 900±40mm | ||
| Transport Width | 50~300mm | ||
| Transport | Transport guide | Single guide,three-stage | |
| Work conditions | work mode | Single-Input Single-Output | |
Suitable for: Circuit industry. Photoelectric technology industry and biological medical science printing.
Suitable for high precise CCD registering screen-printing.
Ex: EL panels, LGP panels, BEF films, Touch panels , Flexible circuit board, Circuit
board BGA, Filp Chip and mobile phone window glass , portable computer screen glass.
