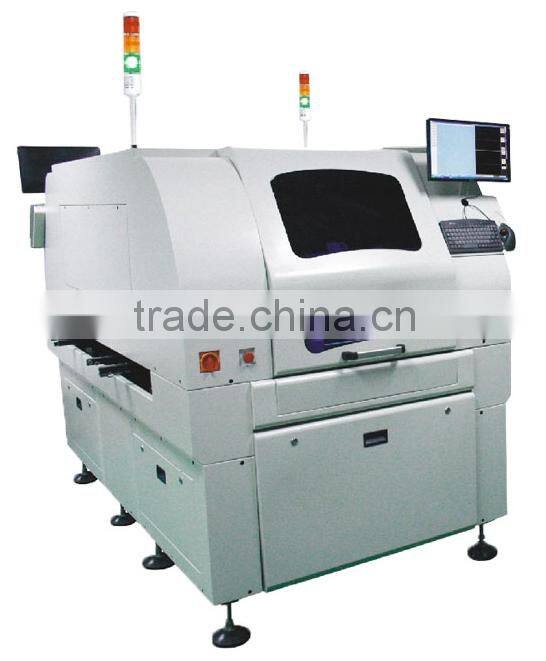

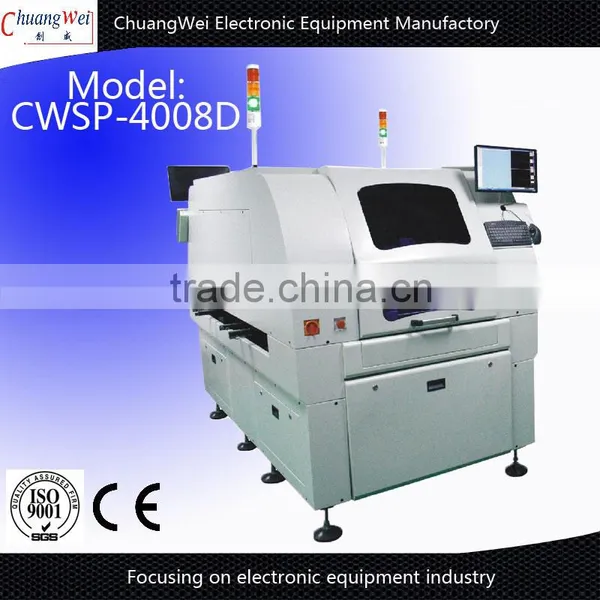

Help CenterScreen Printer for PCB Solder Paste Dispenser Printer With Vision SWSP-4008D
Related Products
-
Screen Printer for PCB Solder Paste DispenserUS$ 1 - 2MOQ: 1 Set -
Screen Printer for PCB DispensingUS$ 1 - 2MOQ: 1 Set
-
Automatic Pcb Depaneling MachineUS$ 30,000 - 35,000MOQ: 1 Set
-
ac dc Tig 315 Pulse Welding MachineUS$ 121 - 5,532MOQ: 1 Set
-
On-line Pulse Heat Bonding MachineUS$ 1 - 22,222MOQ: 1 Set
Features
1. With digital pressure feedback of screw lift direct type scraper
2. Double station double table, can operate independently
3. Fast three -stage PCB transport system
4. Left and right sides of the transportation guide with function of transfer machine
5. Patented double camera high rigid screen stencil adjusting closed-loop registration system
6. Automatic and effective stencil cleaning system
7. Automatic frame positioning
8. Humanized operation interface
| Item | SWSP-4008D | |
| Accuracy | ±0.015mm | |
| Accuracy | Repeating Accuracy | ±0.005mm |
| Cycle Time | <9s | |
| Stencil | Stencil Size | 470*380~737*737mm |
| Stencil Positioning | Air valve | |
| Stencil Adjustment | Stencil adjustment | |
| stencil adjustment range | X:±15mm Y:±15mm | |
| stencil adjustment angle | θ±2° | |
| PCB | PCB Printing Size | 50*50~400*300mm |
| PCB Thickness | 0.4~5mm | |
| transportation | Transport Hight | 900±40mm |
| Transport Width | 50~300mm | |
| Transport guide | Double guide, three stage | |
| working conditions | work mode | Double guide rail independent in and out way and Single-Input Single-Output into a double location |
Suitable for: Circuit industry. Photoelectric technology industry and biological medical science printing.
Suitable for high precise CCD registering screen-printing.
Ex: EL panels, LGP panels, BEF films, Touch panels , Flexible circuit board, Circuit
board BGA, Filp Chip and mobile phone window glass , portable computer screen glass.
