Pcb separator similary CAB MAESTRO 5L .V cut pcb separator/pcb depaneling machine with 3-9 sets of blades

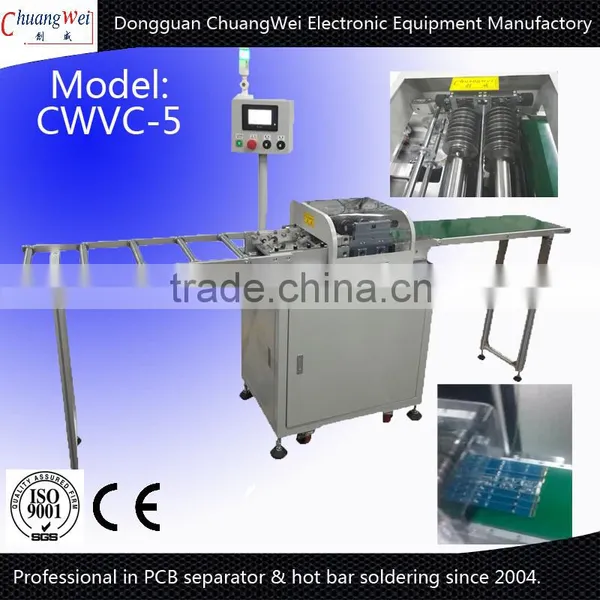

CWVC-5 with base frame is used most economically whenever large numbers of pre-scored PCBs need to be separated. The well-arranged control panel ensures easy operation.
1,This is LED multi group multi blade cutting machine CWVC-5.It is an automated equipment and it can butt joint your production line equipment.
It can cut all kind of board . 10pcbs in one panel ,19 pieces blade can cut without any problem.
2 . CWVC-5 can cut LED panel ,fiberboard,aluminun board,FR14 .this machine cutting length is unlimited and the cutting length minimum is 80mm .
The more important is this cutting machine can butt joint other automatic machine .such as the loader machine or unloader machine, Can greatly inmrove the production efficiency.
Features for pcb separator machine
Separating the whole light bar board one time, high-efficient cutting machine recommendation: ASC multi group of blades cutting machine .
Separating the whole light bar board one time, high-efficient cutting machine recommendation: ASC multigroup and multiblade cutting machine .
Features of machine:
The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
It can cut many boards with multiple sets of knives work at the same time.
The knife flywheel is adjustable as a whole from 0 to 5mm
The distance between knives is regulable as well, applying to pcb with width from 15mm to 20mm.
The blade is made of imported SKH51 high speed steel material, which is durable and have a long service life.
It is convenient to adjust the cutting speed through rotary knob.
No limits of the cutting length.
Thickness range of pcb: 0.2-5.0mm
With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
The machine adopts multiple blade to separate boards with simple operation and high efficiency, fitted for batch production.
Pcb depaneling machine Specification :
Maximum board length: unlimited
Board thickness:0.6-5.0mm
Plate feeding speed: 300-500mm/s
Blade material:SKD11
Working temperature: 10-35℃
Storage temperature:-20-50℃
Voltage: 230V
Dimension : 2160mm*570mm*1050mm

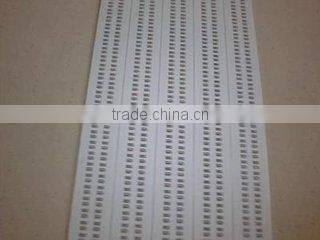

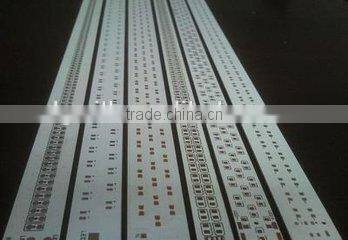

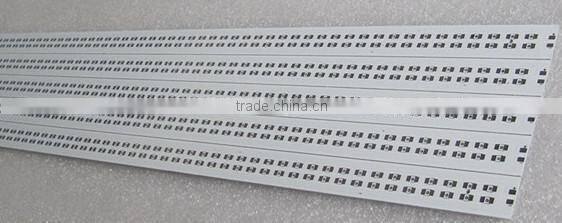

Cutting boards:
Package : plywood case
Chuangwei Electronic Equipment Manufactory limited specilizes in provision of peripheral SMT service and equipments .including pcb separator ,pcb depaneling machine, pcb cutting machine , CNC router ,solder pot, hot bar soldering machine ,screwing machine and glue dispensing machine . Chuangwei Prosses an experienced professional team and equipements with leading technology to provide first class product and service to the companies home and overseas.
With the corporation spirits of "hardworking, sincere, devoted, cooperative and innovative", we have won the customer`s trust and satisfaction with excellent quality and efficient professional service, which is further quaranteed by ISO9001:2000 quality management system and get CE certificate .
We expect a sincere and extensive cooperation with the customers to explore a beautiful future together.
CE certificate :
Business partners :
