V-cut PCB Depanelizer Machine With Multi-blade

V-cut PCB Depanelizer Machine With Multi-blade thumbnail-1
V-cut PCB Depanelizer Machine With Multi-blade thumbnail-2
V-cut PCB Depanelizer Machine With Multi-blade photo-1

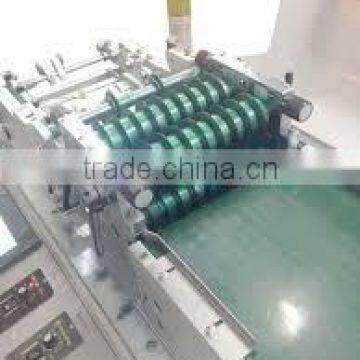

V-cut PCB Depanelizer Machine With Multi-blade photo-2
US$ 9,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chuangwei PCB Depanelizer
Model Number:

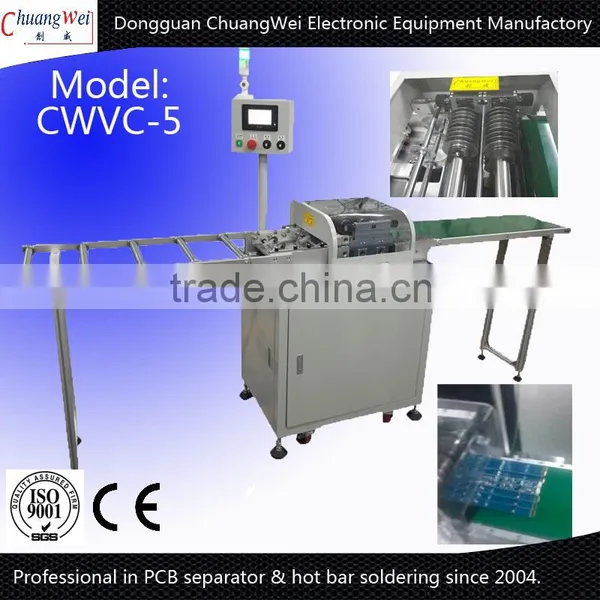

CWVC-5 pcb depaneling
Contact Supplier Request Quote Chat Now
Dongguan Chuangwei Electronic Equipment Manufactory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Chuangwei PCB Depanelizer
Model Number CWVC-5 pcb depaneling
Product Description
V-cut PCB Depanelizer Machine with multi-blade
Features for pcb depanelizer machine
  • Separating the whole light bar board one time, high-efficient cutting machine recommendation: ASC multi group of blades cutting machine .
  • Separating the whole light bar board one time, high-efficient cutting machine recommendation: ASC multigroup and multiblade cutting machine .
  • Features of machine:
  • The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
  • It can cut many boards with multiple sets of knives work at the same time.
  • The knife flywheel is adjustable as a whole from 0 to 5mm
  • The distance between knives is regulable as well, applying to pcb with width from 15mm to 20mm.
  • The blade is made of imported SKH51 high speed steel material, which is durable and have a long service life.
  • It is convenient to adjust the cutting speed through rotary knob.
  • No limits of the cutting length.
  • Thickness range of pcb: 0.2-5.0mm
  • With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
  • With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
  • The machine adopts multiple blade to separate boards with simple operation and high efficiency, fitted for batch production.
  • Specification for pcb depanelizer machine
  • Maximum board length: unlimited
  •     Board thickness:0.6-5.0mm
  •     Plate feeding speed: 300-500mm/s
  • Blade material:SKH-9
  •     Working temperature: 10-35℃
  • Storage temperature:-20-50℃
  •     Voltage: 230V
  •     Dimension : 2160mm*570mm*1050mm

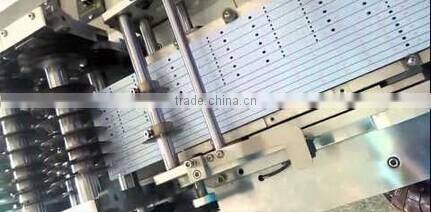

 V-cut PCB Depanelizer Machine with multi-blade


V-cut PCB Depanelizer Machine with multi-blade

 Company information :

Chuangwei Electronic Equipment Manufactory limited specilizes in provision of peripheral SMT service and equipments .including pcb separator ,pcb depaneling machine, pcb cutting machine , CNC router ,solder pot, hot bar soldering machine ,screwing machine and glue dispensing machine . Chuangwei Prosses an experienced professional team and equipements with leading technology to provide first class product and service to the companies home and overseas.

With the corporation spirits of "hardworking, sincere, devoted, cooperative and innovative", we have won the customer`s trust and satisfaction with excellent quality and efficient professional service, which is further quaranteed by ISO9001:2000 quality management system and get CE certificate .

We expect a sincere and extensive cooperation with the customers to explore a beautiful future together

V-cut PCB Depanelizer Machine with multi-bladeV-cut PCB Depanelizer Machine with multi-blade
