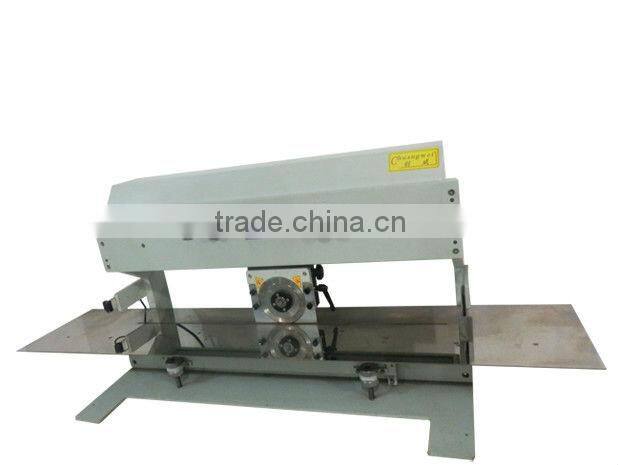

Automatic PCB depaneling Machine separation 460mm length pcb with large LCD control
Automatic PCB depaneling machine advantages:
1.Easy maintanance and operation
2.Low bending stress,no vibration
3.specially for resin substrate PCB with pre-scored V groove
4.safety use
PCB Depaneling's Specifications :
| Model | CWV-1A |
| Max. PCB cutting length | 460 or 600 mm(on request custom made) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100,200,300,500 mm/sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110/220v |
| PCB depaneling machine size | 770*510*450mm |
| PCB depaneling machine weight | 55kg |
Automatic PCB depaneling machine features :
1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2.Effectively reduce stress and prevent solder point chap from PCB cutting.
3.PCB cutting speed can be adjusted by the rotary knob
4.PCB cutting stroke can be set free and setting value can be showed in LCD
5.Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
6.Optional PCB conveyor belt to remove finished PCB cut

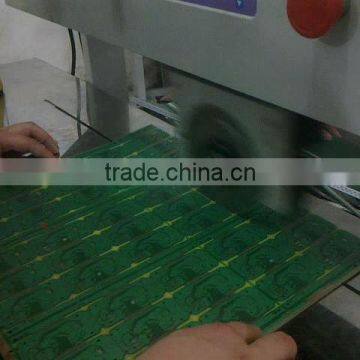

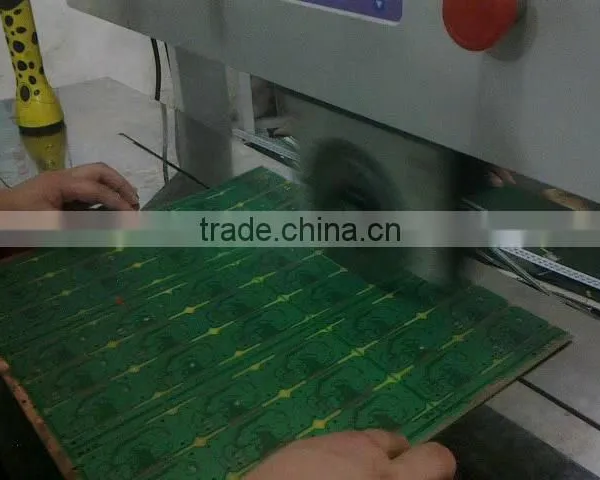

Contrast of Cutting Edge
Smooth Cutting Edge(by CWV-1A) Coarse Cutting Edge(by hand)
A:PC Board Cutting Thickness(mm):0.6~3.5
B:Minimum V-CUT Size(mm):0.25
C:PC Board V-CUT Fillister Thickness(mm):0.3~0.8

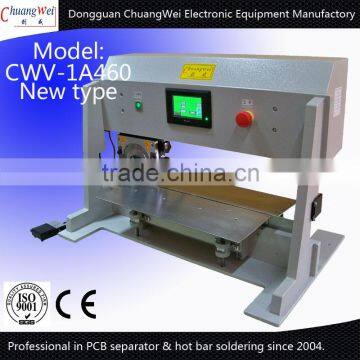

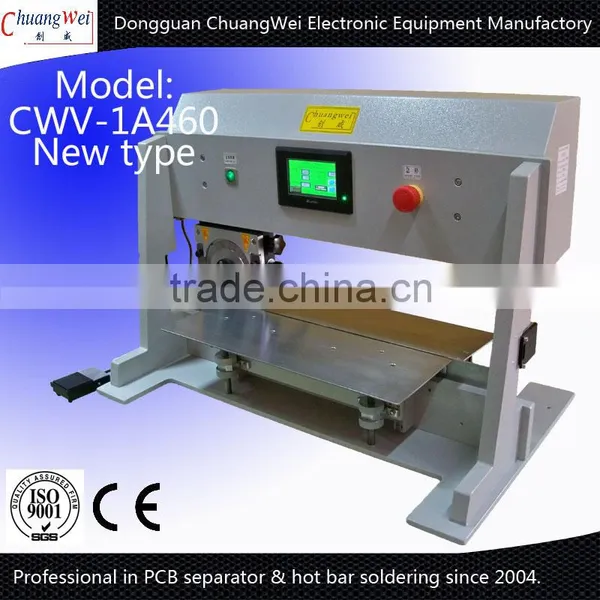

CWV-1A460:

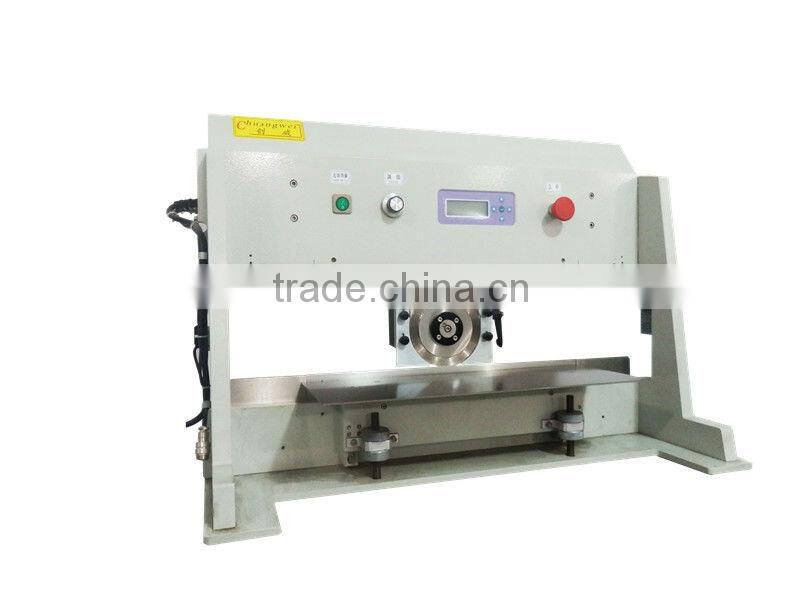

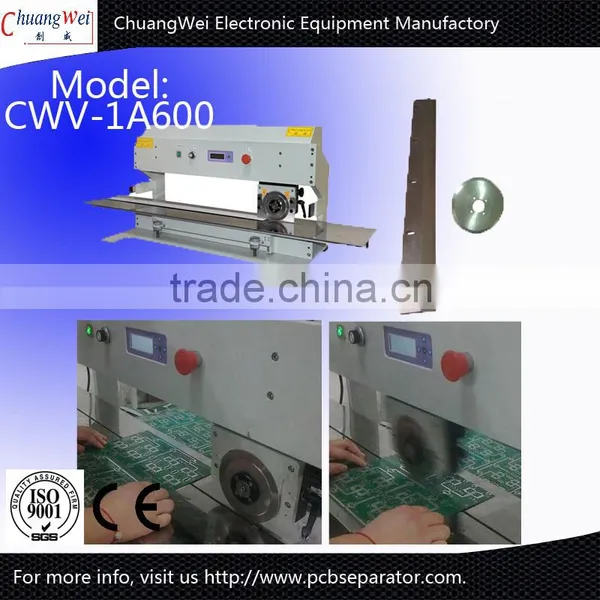

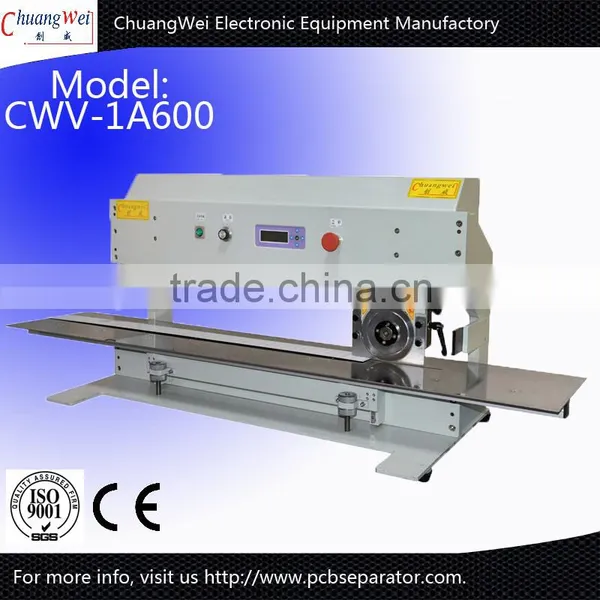

CWV-1A600:

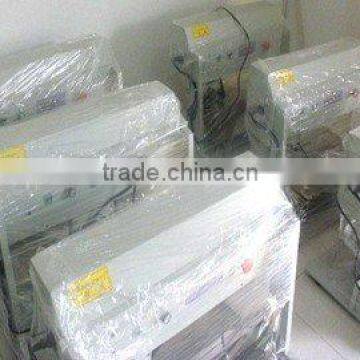

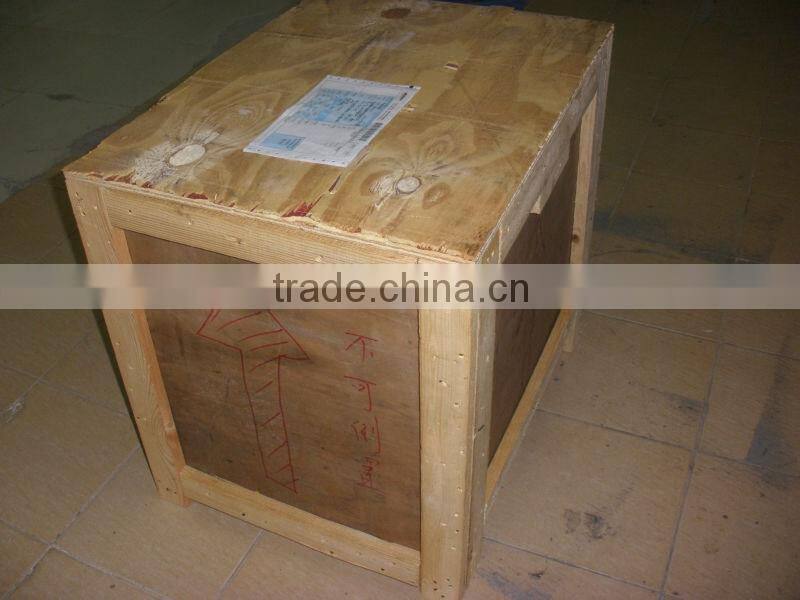

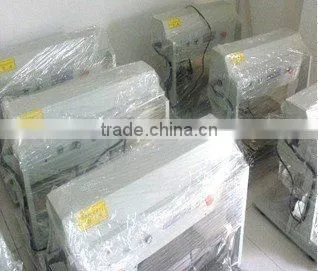

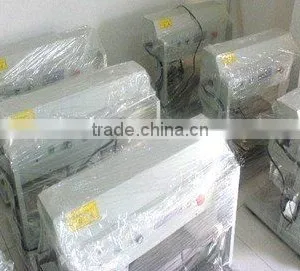

Package :plywooden case
Production process :
Chuangwei Electronic Equipment Manufactory limited specilizes in provision of peripheral SMT service and equipments .including pcb separator ,pcb depaneling machine, pcb cutting machine , CNC router ,solder pot, hot bar soldering machine ,screwing machine and glue dispensing machine . Chuangwei Prosses an experienced professional team and equipements with leading technology to provide first class product and service to the companies home and overseas.
With the corporation spirits of "hardworking, sincere, devoted, cooperative and innovative", we have won the customer`s trust and satisfaction with excellent quality and efficient professional service, which is further quaranteed by ISO9001:2000 quality management system and get CE certificate .
We expect a sincere and extensive cooperation with the customers to explore a beautiful future together
CE Certificate:
.
