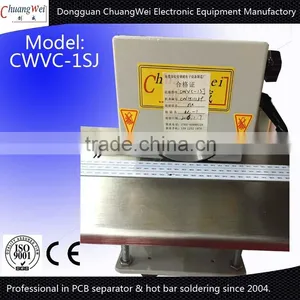

Chuangwei motor-driven V-CUT PCB separator
1.Max. PCB separating length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use
Chuangwei motor-driven V-CUT PCB separator specifications:
| Model | CWVC-1SJ |
| Max. PCB separating length | unlimited |
| PCB separating thickness | 1.0-3.5mm |
| Blade amount | up and down 2 circular blades |
| PCB separating mode | down circular blade with motor-driven |
| PCB separating spee | 0~400mm/s |
| Voltage and Power | 110/220 V 60W |
| PCB separator Size | 420X 280 X 400mm |
| PCB separator Weight | 25Kg |
| workbench | optional(can make different length according to your board) |
| Staff allocated | one person hold PCB and feed between the circular blades for separation,fix position on pre-scored V groove |
Chuangwei motor-driven V-CUT PCB separator features:
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
*** Chuangwei motor-driven V-CUT PCB separator motion video please see below: ***
/watch?v=ssiEW4hqQxo
***Chuangwei PCB separator machine***
***From 2004 we started to development,manufacture,sale,service for PCB separator machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB separator machine base your actual requires. (any shape,length,thickness of PCB,aluminiun PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
***Any interest please contact us freely.
***Chuangwei PCB separator machine***
seaworthy plywood case,safe, no need to fumigated (free):
Products List:
CE Certificate:
