Chuangwei motor-driven V-CUT PCB depanelizer machine
1.Max. PCB depaneling length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use
Chuangwei motor-driven V-CUT PCB depanelizer machine specifications:

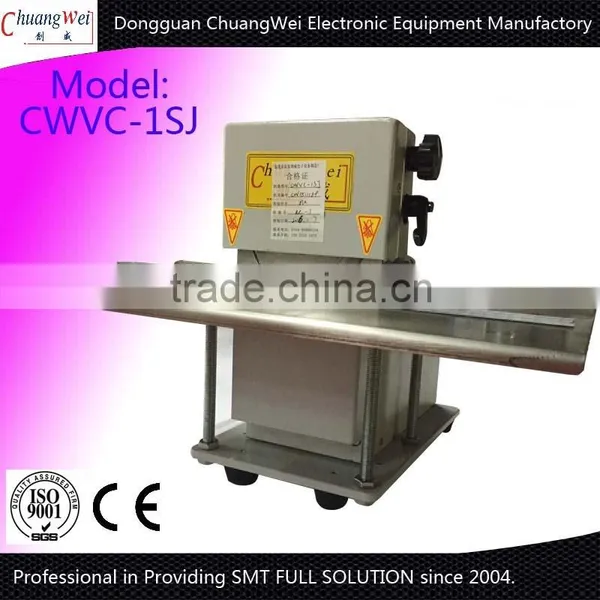

| Model | CWVC-1SJ |
| Max. PCB depaneling length | unlimited |
| PCB depaneling thickness | 1.0-3.5mm |
| Blade amount | up and down 2 circular blades |
| PCB depaneling mode | down circular blade with motor-driven |
| PCB depaneling speed | 0~400mm/s |
| Voltage and Power | 110/220V 60W |
| PCB depanelizer size | 420X 280 X 400mm |
| PCB depanelizer weight | 25Kg |
| workbench | optional(can make different length according to your board) |
`
Chuangwei motor-driven V-CUT PCB depanelizer machine features :
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
**Chuangwei motor-driven V-CUT PCB depanelizer machine video please see below:**
/watch?v=ssiEW4hqQxo
/edit?ns=1&video_id=_KHLRBnb7rs
/v_show/id_XNTkwMTM0NDc2.html
***Chuangwei PCB depanelizer machine***
***From 2004 we started to development,manufacture,sale,service for PCB depanelizer machine, until now,we have produced different kind PCB depanelizer machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB depanelizer machine base your actual requires.
***PCB depanelizer machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB depanelizer machine***
seaworthy plywood case,safe, no need to fumigated(PCB depanelizer machine CWVC-1S) (free):

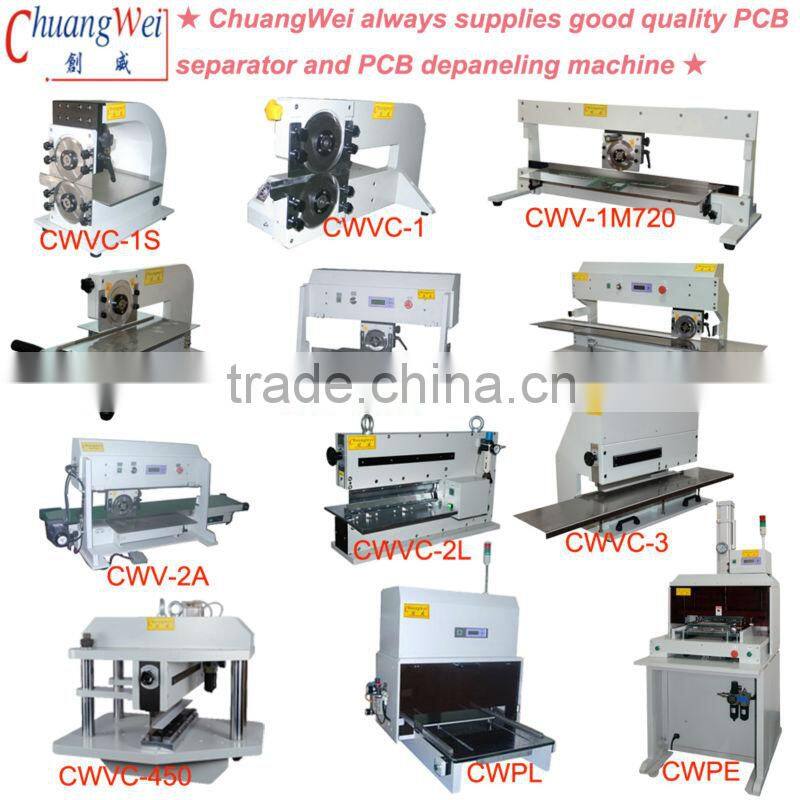

ChuangWei more related PCB depanelizer machine:
ChuangWei PCB depanelizer machine CE Certificate:
*Any interest please contact us freely.
***Chuangwei PCB depanelizer machine***
