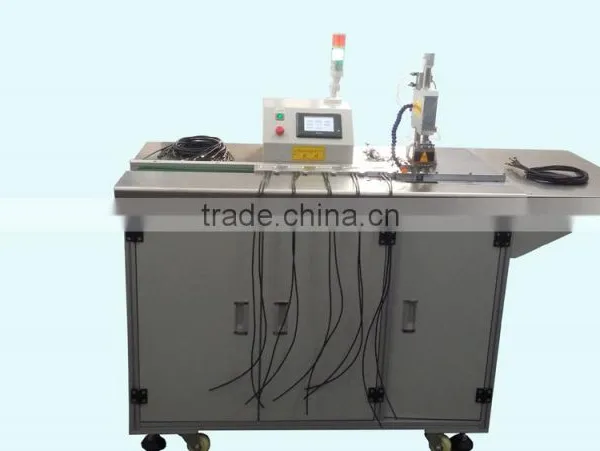

In-line Hot Bar Soldering Machine
In-line hot bar soldering machine sepecification:
Model |
CWPDY2IN |
Power Supply |
220V |
Load sustained rate |
20% |
Tem. range |
50-600℃ |
Max product size |
80mm |
Tem Control presicison |
±3% |
Thermode head size |
5-50mm |
Machine dimension |
1600*700*1300mm |
Machine Weight |
200kgs |
Pressure range |
10-50N |
Thermocouple |
E or K (optional) |
Cooling mode |
Air |
In-line hot bar soldering machine features:
1. On-line conveyor loading and landing automatically
2. Has alarm system, manual test & adjustment is available
3. Double side soldering at the same time
4. Advanced temp. controlling system, high precision temp & soldering time controlling
5. Stable temp. profit, high frequency inverter frequency, short power cycle.
6. LCD display for soldering temp.
7. Closed loop PID temperature control with visible LED display
8. Three section of heating setting, the temperature rises quickly and steadily
9. 20 groups of programs can be stored, using RRPROM to prevent data from missing

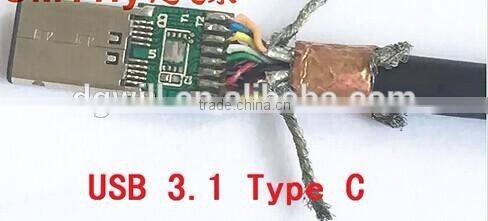

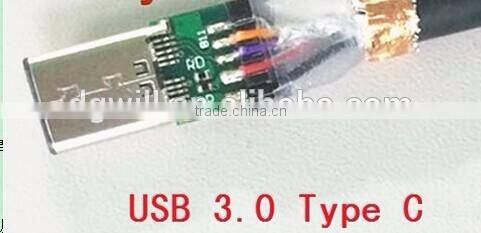

In-line hot bar soldering machine application:

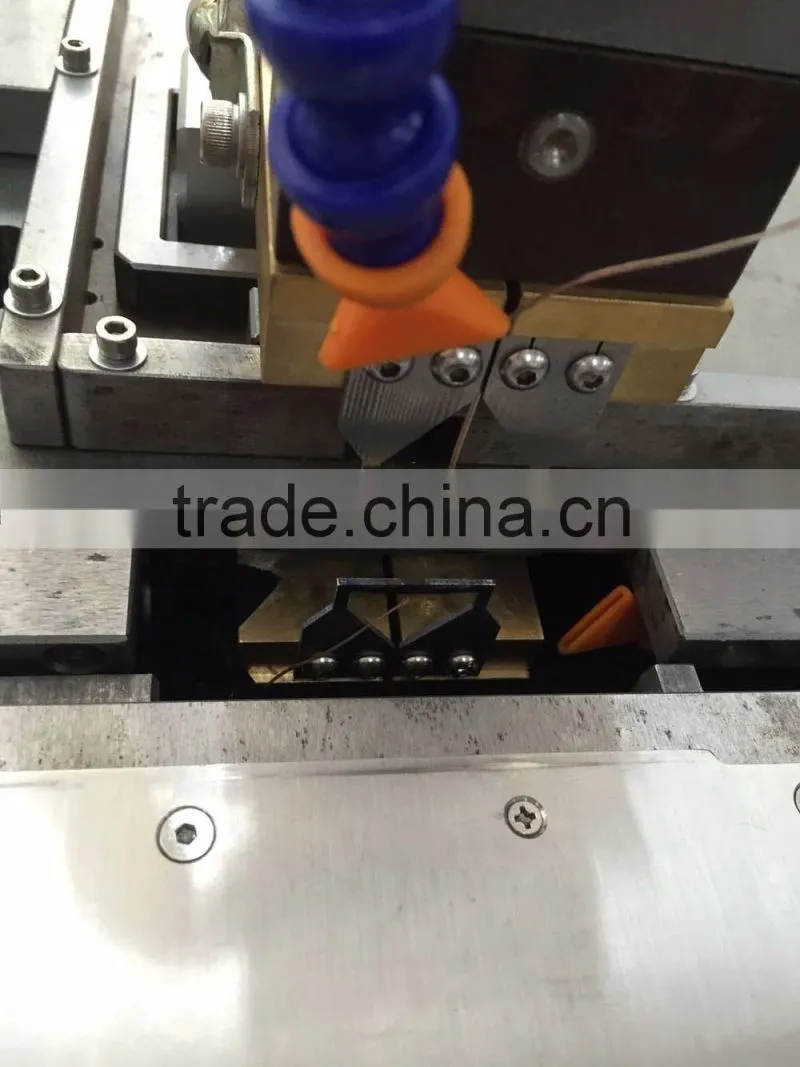

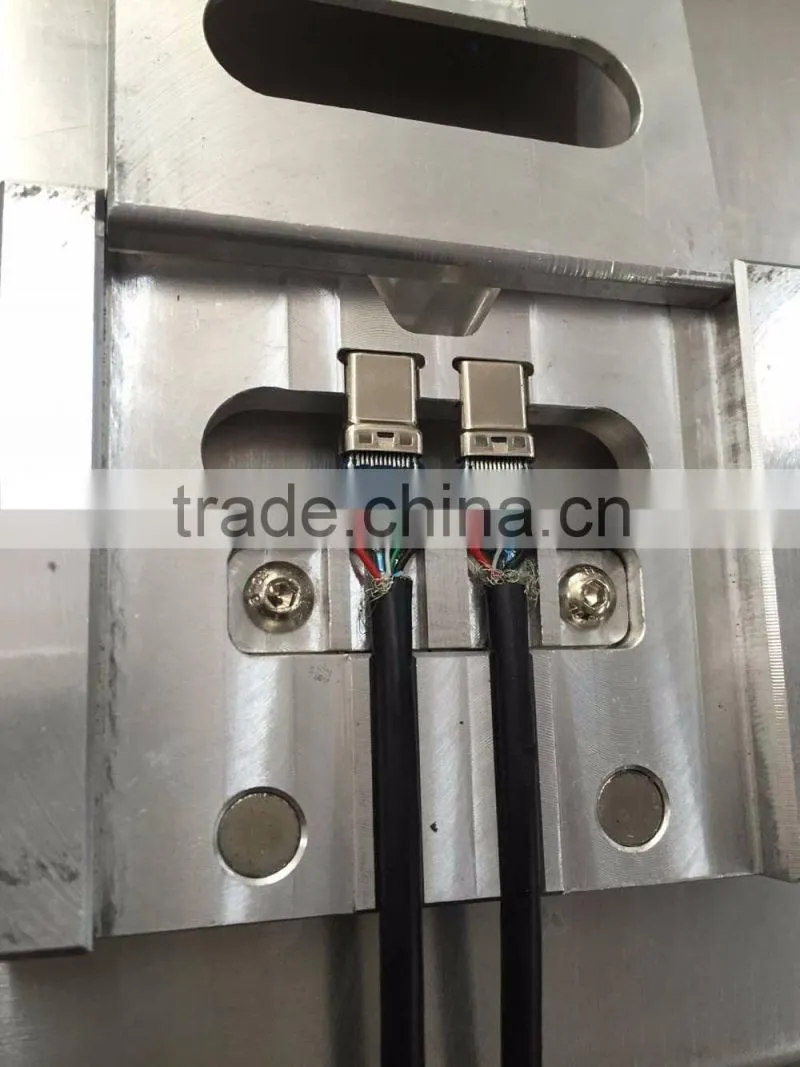

In-line hot bar soldering machine thermode head & fixtures:
FAQ:
1. Q:What is warranty of the machine?
A:1 year.
2. Q:How do you pack the machine?
A:We fix the machine on the plywood base with screws to ensure safe transportation.
3. Q:What is life time of thermode head and fixture?
A:About 3-12 months.
4. Q:What is material of thermode head?
A:Molybdenumn alloy
5. Q:What is material of fixture?
A:Bakelite or steel.
6. Q:How do you offer oversea service?
A:We could send engineer to do installation and training for client if needs.
7. Q:Can we see your machine in our country?
A:Yes, we would like to advise contact details of our clients who are using our machine.
8. Q:What is the capacity if we use this machine?
A:About 700pcs per hour
9. Q:What is the thermode head quantity?
A:Total 4. Upper 2, lower 2.
