On-line Hot Bar Soldering Machine

Dongguan Chuangwei Electronic Equipment Manufactory
On-line Hot Bar Soldering Machine thumbnail-1
On-line Hot Bar Soldering Machine thumbnail-2
On-line Hot Bar Soldering Machine thumbnail-3
On-line Hot Bar Soldering Machine thumbnail-4
On-line Hot Bar Soldering Machine photo-1

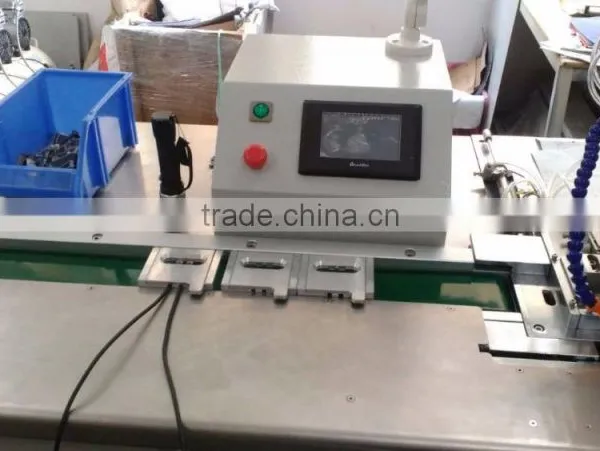

On-line Hot Bar Soldering Machine photo-2

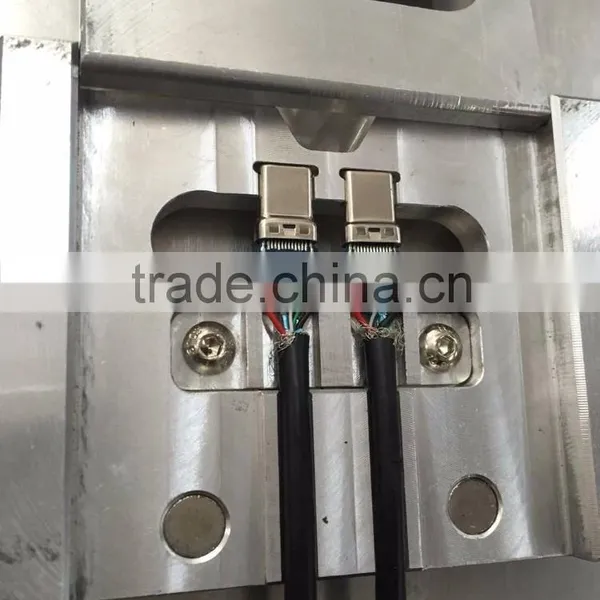

On-line Hot Bar Soldering Machine photo-3
On-line Hot Bar Soldering Machine photo-4
US$ 1 - 22,222 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chuangwei
Model Number:
CWPDY2IN
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong /guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Chuangwei
Model Number CWPDY2IN

On-line Hot Bar Soldering Machine





On-line hot bar soldering machine features:





1. On-line conveyor loading and landing automatically

2. Has alarm system, manual test & adjustment is available

3. Double side soldering at the same time

4. Advanced temp. controlling system, high precision temp & soldering time controlling

5. Stable temp. profit, high frequency inverter frequency, short power cycle.

6. LCD display for soldering temp.

7. Closed loop PID temperature control with visible LED display

8. Three section of heating setting, the temperature rises quickly and steadily

9. 20 groups of programs can be stored, using RRPROM to prevent data from missing









On-line hot bar soldering amchine sepecification:

Model

CWPDY2IN

Power Supply

220V

Load sustained rate

20%

Tem. range

50-600℃

Max product size

80mm

Tem Control presicison

±3%

Thermode head size

5-50mm

Machine dimension

1600*700*1300mm

Machine Weight

200kgs

Pressure range

10-50N

Thermocouple

E or K (optional)

Cooling mode

Air





On-line hot bar soldering machine details:

On-line Hot Bar Soldering MachineOn-line Hot Bar Soldering MachineOn-line Hot Bar Soldering MachineOn-line Hot Bar Soldering Machine





Production Flow:

On-line Hot Bar Soldering Machine
