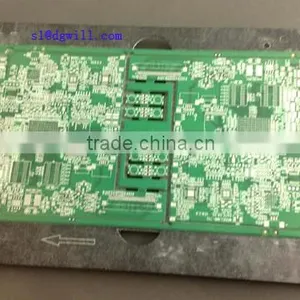

Help CenterSMT Carriers In Pcb Assembly
Related Products

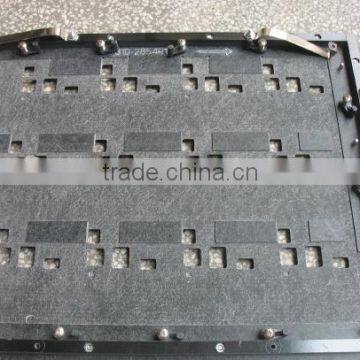

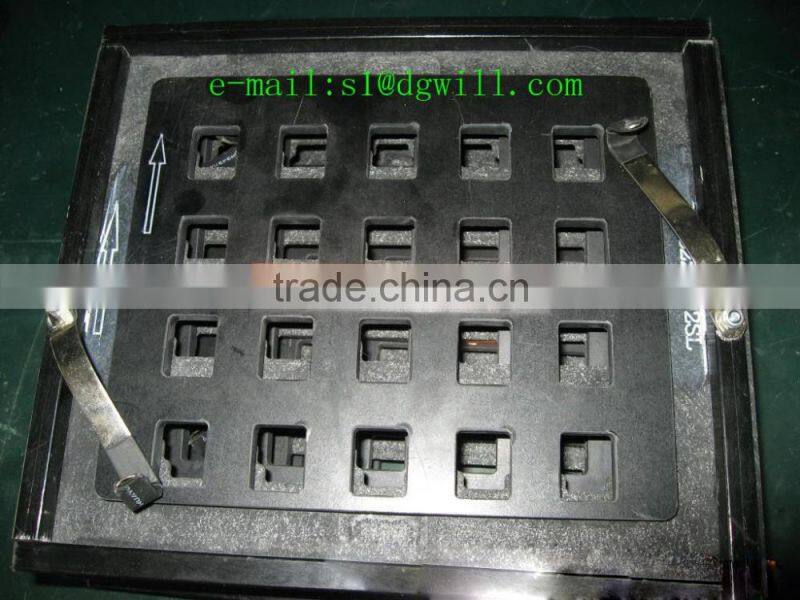

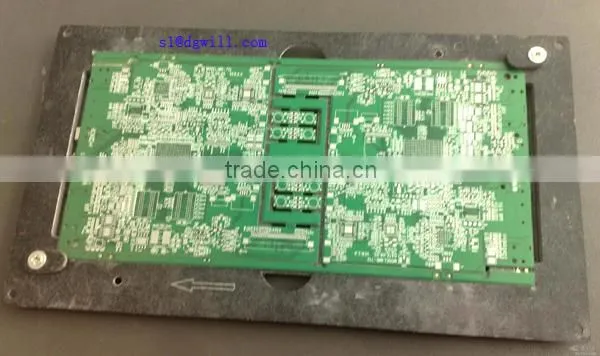

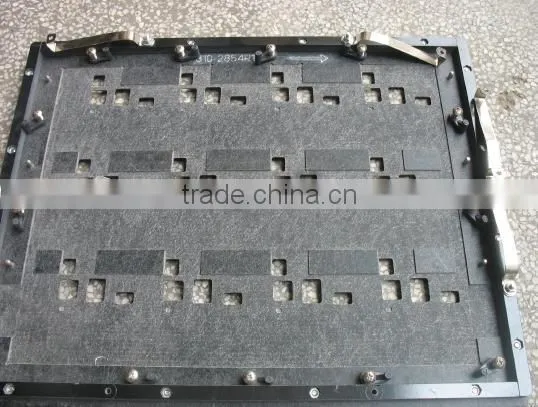

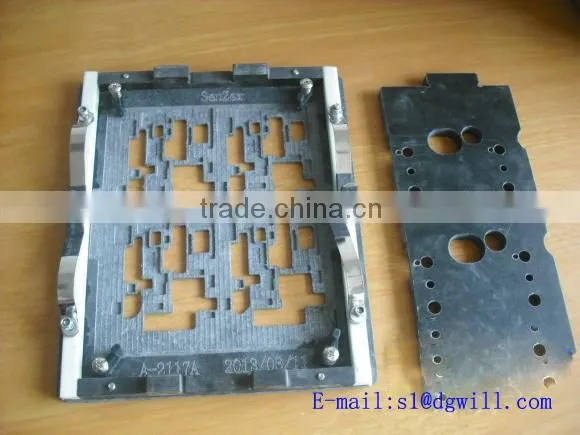

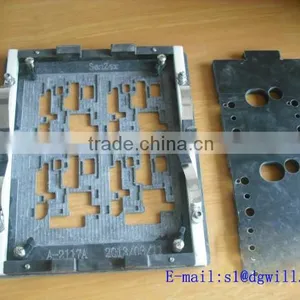

Wave solder pallets offer many advantages to the cost conscious Process Engineer. These advantages can usually pay back in a few weeks with cost savings and improved yields. By deploying a double reflow process, you can maximize your yields through the wave solder process.
Other advantages are:
1, Eliminate flooding by masking open areas and preventing board sage
2, Reduce second hand load parts and hand soldering.
3,Save thousands of dollars in Kapton tape and the labor to add and remove.
4, The composite materials thermally protect bottom side SMD’s from shock.
5, Mask BGA vias from the wave ensuring reliable solder joints.
6, Lead Free grade optical material for higher temperatures
TOP SIDE STANDARD FEATURES

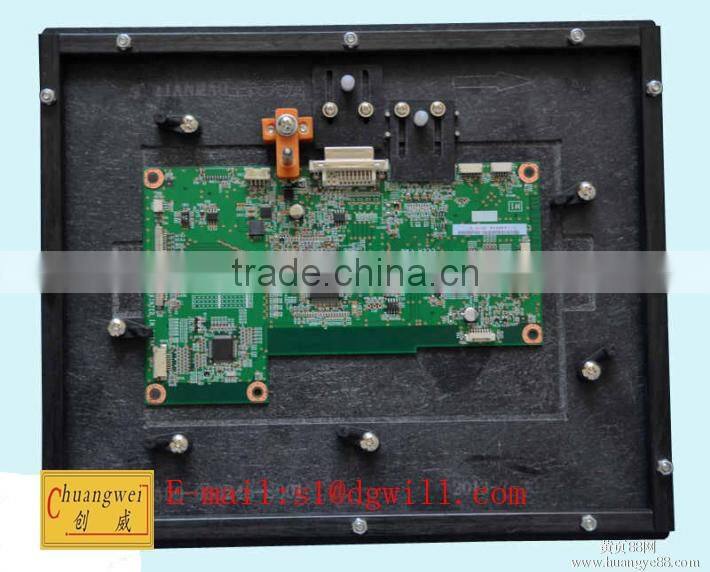

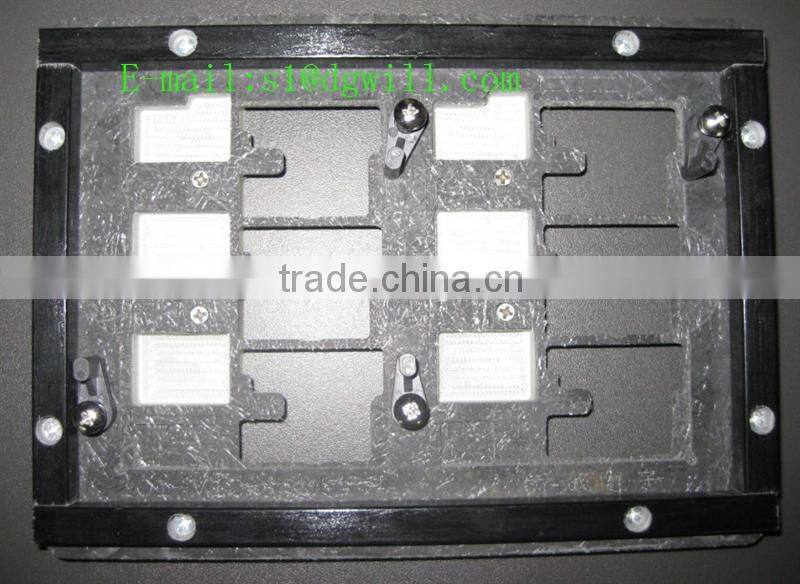

Chuangwei 's standard PCB hold down is our low profile. It is unbreakable, ESD safe and guaranteed for the life of the pallet. The non-marring design applies 12 pounds of downward pressure without having to lift. Just twist! We also offer a high profile hold down, cam-lock and custom hold downs for connectors.
Chuangwei does not ‘tap’ the composite, we use all “metal to metal” fasteners ensuring a reliable and long lasting fixture.
We offer two sizes of extruded aluminum stiffeners and solder dams; for smaller pallets we have a 3/8” tall and for larger pallets we have a 3/4” tall design.
All pallets are engraved with the board name and our work order number for handy reference. All data associated with your pallet is stored to that work order numb
Send Inquiry to This Supplier
