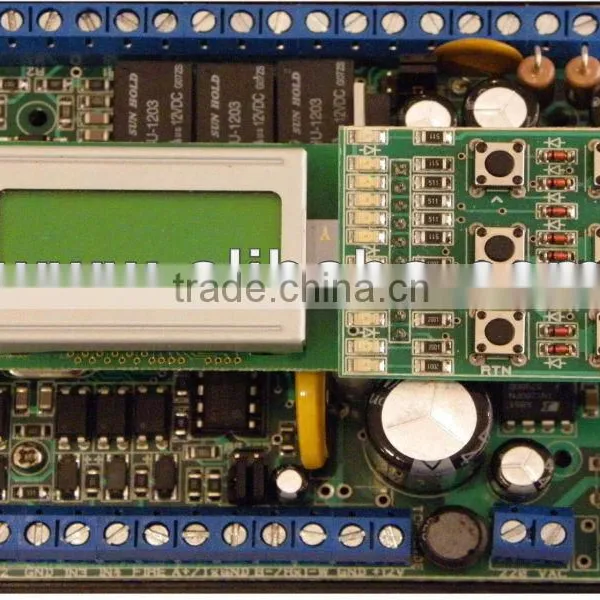

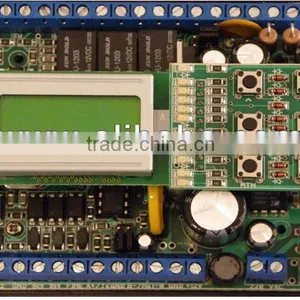

ICON 140 Access Control Panel

Name: ICON 140 Access Control Panel
Brand: Polimex
SKU: 102491407
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Bulgaria

Brand Name:

Polimex

Model Number:

iCON140

Polimex Holding Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Sofia

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Bulgaria

Brand Name Polimex

Model Number iCON140

Specifications

Intelligent Single or Double Door Access Controller Panel;
Dynamic Control of Memory up to 8000 Users / up to 4 000 Events

Intelligent Single or Double Door Access Controller Panel with independent power supply

Card holders 8000
Event Buffers 4000
Standalone or Network communication via RS485 (Max. 253ch), RS232
LCD display and Keypad connectable to Control for Standalone Operation, Manual Setting
Built in 2x Wiegand readers input with auto sense function
Reader interface: 26 or 32 bit WIEGAND (auto detect) and 4-8 bit burst for PIN
Working mode of the readers: RFID card, PIN, RFID card and PIN, RFID card or PIN, RFID card with PIN, and RFID card with Working code
Built in 2x inputs for Exit buttons
Built in Emergency input
Communication Status via LED
Indicator Duress Mode Function
Antipass back Function;
Alarm Event Monitoring (by Application Software) ;
Remain ID & Event Data and Setting Value in case of Electric Outage
Weekly Time table
Modification: iCON140LT

User capacity	8000
Transaction capacity	4000
Input ports	5ea (2x Exit Button, Sensor, Emergency, 2x readers (26bit or 34bit Wiegand)
Outputs ports	4ea (4 Relay outputs-3A/48VDC )
Communication	RS 232 C, RS 485, Wiegand 26 bit-input
Voltage	12 VDC
Current (mA)	250
LED indicator	2-colour LED
Beeper	Yes
Operating temperature	-25°C-+75°C
Operating humidity(RH)	10% - 90%relative humidity non-condensing
Dimension (mm)	1059058
Certification	RoHS
Warranty (Years)	2
Software	Free, Paid
