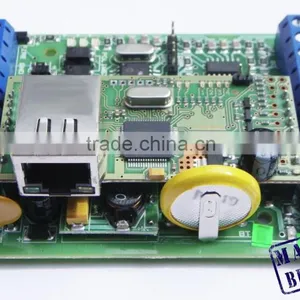

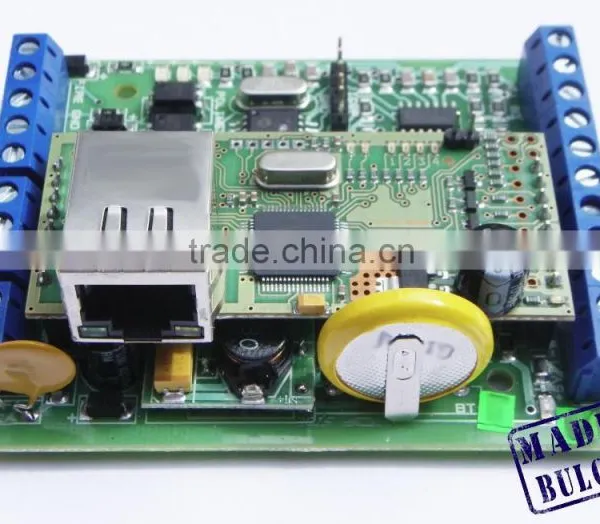

Controller iCON110LAN has the possibility to control one double sided or two one sided doors. It has two standardized inputs for readers with RF ID card, PIN code, RF ID+work code, biometric data or combinations between them.
In connection with the management the controller uses two types of modes – standalone(no communication) or with LAN or serial communication. In standalone mode adding and deleting cards is made by using Master card which can be activated by a user friendly software. In communication mode you can take advantage of the easy and fast LAN communication for standalone mode or you can use the controller as a converter from RS485 to LAN and connect up to 253 devices on one line RS 485.
All settings can be made by using paid (Andromeda Pro) or free (Andromeda Tool) software, which can offer you many optional functions which are described in the functionality.
Functionality
- Stand alone mode with Master card
- Sand alone mode with LAN communication
- Network communication over RS485 (up to 253 devices)
- Dual working mode – as controller and converter RS485 to LAN at the same time.
- Time & attendance calculation with Andromeda Pro
- Control of one double sided or two one sided doors
- Management of paid services with Andromeda Pro – fitness, spa, auto park, hotels
- Ability to synchronize with fire alarm system (NO contact)
- Automatic activation of the outputs by predefined time schedule
- Time schedules for access control
- Input / output settings by user
- Volatile memory and real time clock
- Ability to control a turnstile with antipassback function
Application
Controller iCON110LAN is compact and easy for installation. Its setup and controlling is fast and easy which makes it suitable for objects of all kinds – residential , office and production buildings..... By using software Andromeda Pro you have the ability to count time & attendance and also to control paid services in fitness and spa center, paid auto park and a lot of others.
