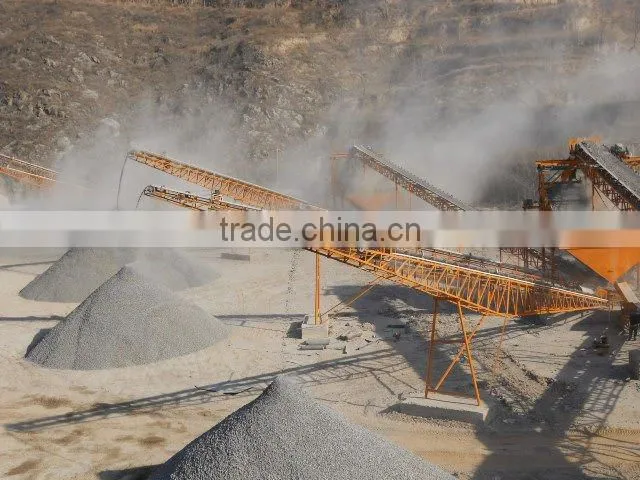

Help CenterHigh Quality Rubber Belt Conveyor Used in Quarry and Mining Industry
Related Products
-
Quarry and Mine Environmental Gravel Conveyor SystemUS$ 1 - 420MOQ: 15 Meters -
Quarry and Mine Environmental Sand Conveyor SystemUS$ 1 - 420MOQ: 15 Meters
-
Quarry and Mine Environmental Belt Conveyor System for Sand and CoalUS$ 1 - 420MOQ: 15 Meters
-
Evironmental Quarry Conveyor System From DingliUS$ 1 - 420MOQ: 15 Meters
-
Inclined Quarry and Mine Belt Gravel Conveyor B1200US$ 1 - 420MOQ: 15 Meters
Specifications
1.belt width:400-1200mm2.payment terms:L/C or T/T
3.capacity:40-1284t/h
4.ISO 9001:2008
5.high strength and capacity
(1) High quarry rubber belt conveyor classification:
Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines, transmission lines are generally fixed. Conveyor transport capacity, long-distance, but also in the transportation process while completing a number of process operation, it is widely used. Main belt conveyor, plate conveyor, scraper conveyor, bucket conveyor, bucket elevator, overhead conveyors and so on.
(2)Concrete rubber belt conveyor system application:
Belt conveyor is widely used in mining, gravel field, metallurgy, building materials, chemical industry, mineral processing, coal mining and other industries transport material.
(3)Inclined rubber belt conveyor work environment:
Belt conveyor, belt conveyor for conveying bulk density of less than 1.67 / t / cubic meter, easy to dig a powder, granular, small block of low-abrasive materials and bags of materials, such as coal, gravel, sand, cement, fertilizer, and grain. Sent material temperature is less than 60 °C. The form of their captain and assembly can be determined according to user requirements, transmission can be electric drum can also be used with a drive rack drive.
(4)High quality belt conveyor main technical parameters:
|
Belt Width (mm) |
Belt Length(m) / Power(kw) |
Belt Speed (m/s) |
Capacity (t/h) |
||
B400 |
≤12/1.5 |
12-20/2.2 |
20-25/3 |
0.8-2 |
40-80 |
B500 |
≤12/3 |
12-20/4 |
20-30/5.5 |
0.8-2 |
78-191 |
B650 |
≤12/4 |
12-20/5.5 |
20-30/7.5 |
0.8-2 |
131-323 |
B800 |
≤10/4 |
10-15/5.5 |
15-25/7.5 |
1.0-2 |
278-546 |
B1000 |
≤10/5.5 |
10-20/7.5 |
20-25/11 |
1.0-2 |
435-853 |
B1200 |
≤10/7.5 |
10-20/11 |
20-25/15 |
1.0-2 |
655-1284 |
