Home > Products > Conveyor System > Dingli mining and quarry professional conveyor system
Dingli mining and quarry professional conveyor system
- 1000 Set / Sets per Month
- Tianjin Qingdao
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Gravity Conveyor | Material: | Rubber |
Material Feature: | Heat Resistant | Structure: | Belt Conveyor | Load Capacity: | as your requirement |
Place of Origin: | Henan, China | Brand Name: | Dingli | Model Number: | belt conceyor |
Certification: | ISO 9001:2008,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Belt conveyor,conveyor system:1,angle iron/U-bar
2,ISO 9001:2008
3,quarry/mine belt conveyor
4,design belt conveyor on spot

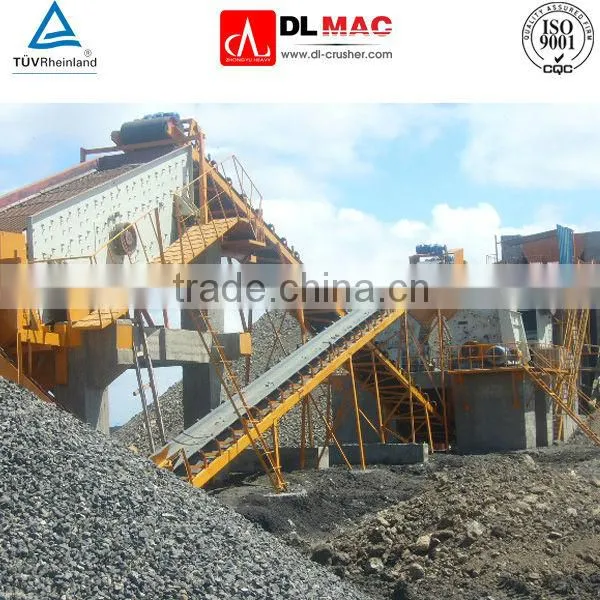

Conveyor system working site:
Width B(mm) | 500 | 650 | 800 | 1000 | 1200 | 1400(1600) | ||||||||||||||
Edge height H(mm) | 80 | 120 | 160 | 80 | 120 | 160 | 120 | 160 | 200 | 160 | 200 | 240 | 200 | 240 | 300 | 200 | 240 | 300 | 400 | |
Diaphragm plate height (mm) | 75 | 110 | 150 | 75 | 110 | 150 | 110 | 150 | 180 | 150 | 180 | 220 | 180 | 220 | 280 | 180 | 220 | 280 | 360 | |
Speed V(m/s) | 0.8 1.0 1.25 1.6 2.0 2.5 3.15 4.0 | |||||||||||||||||||
Drum diameter (mm) | 400,500 | 400,500,630 | 500,630,800 | 630,800,1000 | 630,800,1000,1250 | 800,1000,1250,1400 | ||||||||||||||
Veer Drum diameter (mm) | 400 | 400,500 | 400,500,630 | 500,630,800 | 500,630,800,1000 | 630,800,1000,1250 | ||||||||||||||
Roller (mm) | Φ89 | Φ108 | ||||||||||||||||||
Normal angle | 0-30° 30° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° | |||||||||||||||||||
Angle range | 0-90° | |||||||||||||||||||
Transmission | Type I | Motorized pulley(with brake) | ||||||||||||||||||
Efficacy KW | 1.5-7.5 | 1.5-11 | 1.5-37 | 1.5-90 | 1.5-110 | |||||||||||||||
Type II | Y motor +V belt + axis redactor(with brake)+driving drum | |||||||||||||||||||
Efficacy KW | 3-11 | 3-15 | 3-22 | |||||||||||||||||
Type III | Motor +coupling + redactor + driving drum(with brake)(By a single motor drive) | |||||||||||||||||||
Efficacy KW | 1.5-30 | 1.5-55 | 2.2-90 | 4-110 | 5.5-185 |
Belt conveyor is machinery driven by friction for continual transportation of materials. It can form a flow line from beginning and end when working. It not only can convey the crushed materials, but also convey by piece. It can cooperate with the requirement of every industry to build a flow line, except that it conveys the bulk materials.
Belt conveyor system Application:
Belt conveyor extensively used in modern industry such as mine tunnel, mine open-air conveying system, open-air quarry and beneficiation. It is very convenient for horizontal, inclined conveying.
.
Our belt conveyor system Character:
The main character of Belt conveyor is convenient to stretch for the belt-save space. The end can be stretched according to the working spot. Its structure is very compact, light frame, convenient to install and dismantle.
When load more materials or long term conveying, it can set a motor in the middle. As your requirement, you can convey with one conveyor or use multi-conveyor for a system to convey the materials.
2. The density of materials can be delivered in the 2.5t / m ^ 3 below.
3. Conveyor belt conveyor length is not limited to the value listed in the table, based on the user's need for manufacturing.
Contact Us
- Xinxiang Dingli Mine Equipment Co., Ltd.
- Contact nameJenny Liu
- Phone0086-0373-3059997
- AddressTangzhuang town, Weihui city, Henan province Xinxiang,Henan
