Automatic Desktop Hot Bar Soldering Machine With Rotary For PCB Assembly

Automatic Desktop Hot Bar Soldering Machine With Rotary For PCB Assembly photo-1

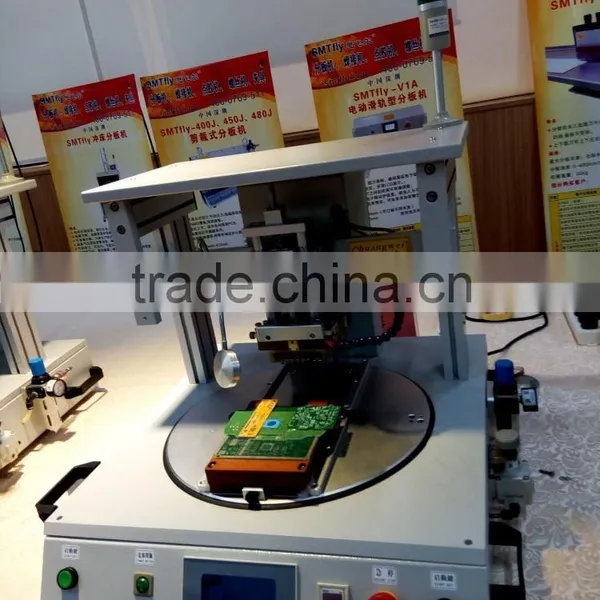

Automatic Desktop Hot Bar Soldering Machine With Rotary For PCB Assembly photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Chuangwei hot bar soldering machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Chuangwei hot bar soldering machine
Model Number CWPC-1A hot bar soldering machine
Usage welding TAB, TCP,ACA,ACF,FPC
Voltage 110/220V
Current 50HZ
Rated Duty Cycle Option
Rated Capacity Option
Dimensions 620mm X 690mm X 570mm
Weight 95kg
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas

Automatic Desktop hot bar soldering Machine with Rotary  For PCB Assembly



Technology parameters :



ModelCWPC-1A
Max. Working Area 200mm X 260mm
Size620mm X 690mm X 570mm
Weight 95Kg
Air Pressing  0.45-0.7Mpa
Temperature setting

20-500C



Temperature precision

+-2



Bonding time

1-99s



Precision

0.05



Bonding Force

0.1-0.6 Pa







Features for hot bar soldering machine :



Pulse-Heated Soldering Machine with Pneumatic Rotary Turntable  CWPC-1A
1.Extremely short cycle time with rotary table design. Product loading and  unloading can be done during the heat sealing process
2.High quality heat seal application up to 0.25mm pitch
3.Pneumatic bonding head provide up to 3,900N force
4.Digital programmable pressure control with LCD display
5.Closed loop PID temperature control with visible LED display
6.Bonding cycle is triggered by a real time pressure sensor
7.Floating Thermode ensure consistent pressure and heat transfer along the flexfoil to LCD and/or PCB
8.Precision product fixtures (2X), easy exchange, provided with micrometer alignment and vacuum to fix components

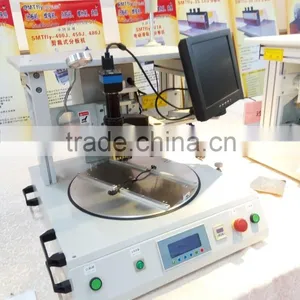

9.Optional CCD alignment module with frame, camera, lens, monitor and illumination for fine pitch application
10.Full microprocessor logic control

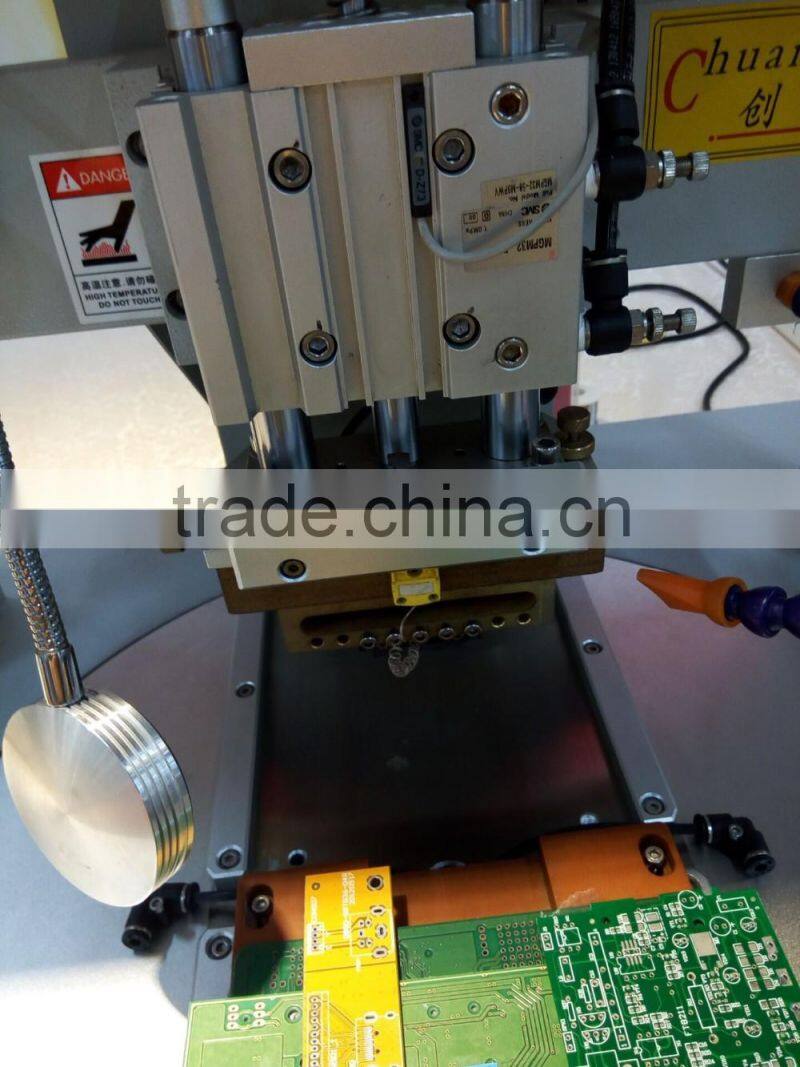

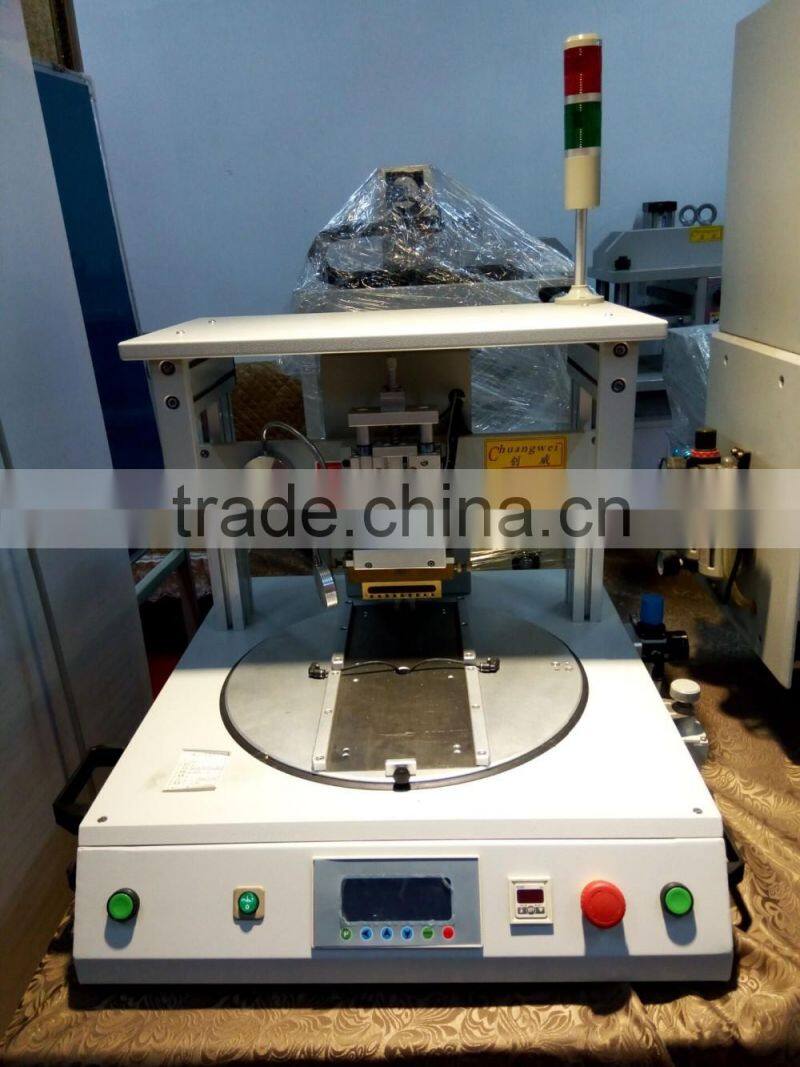

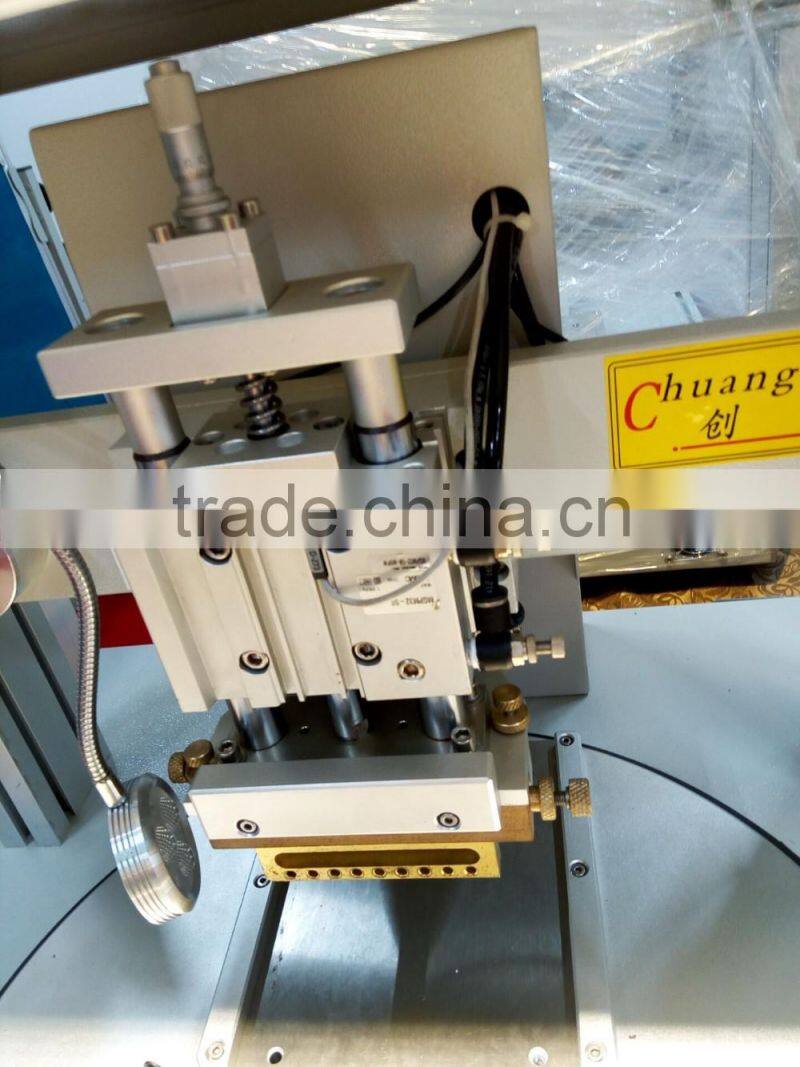

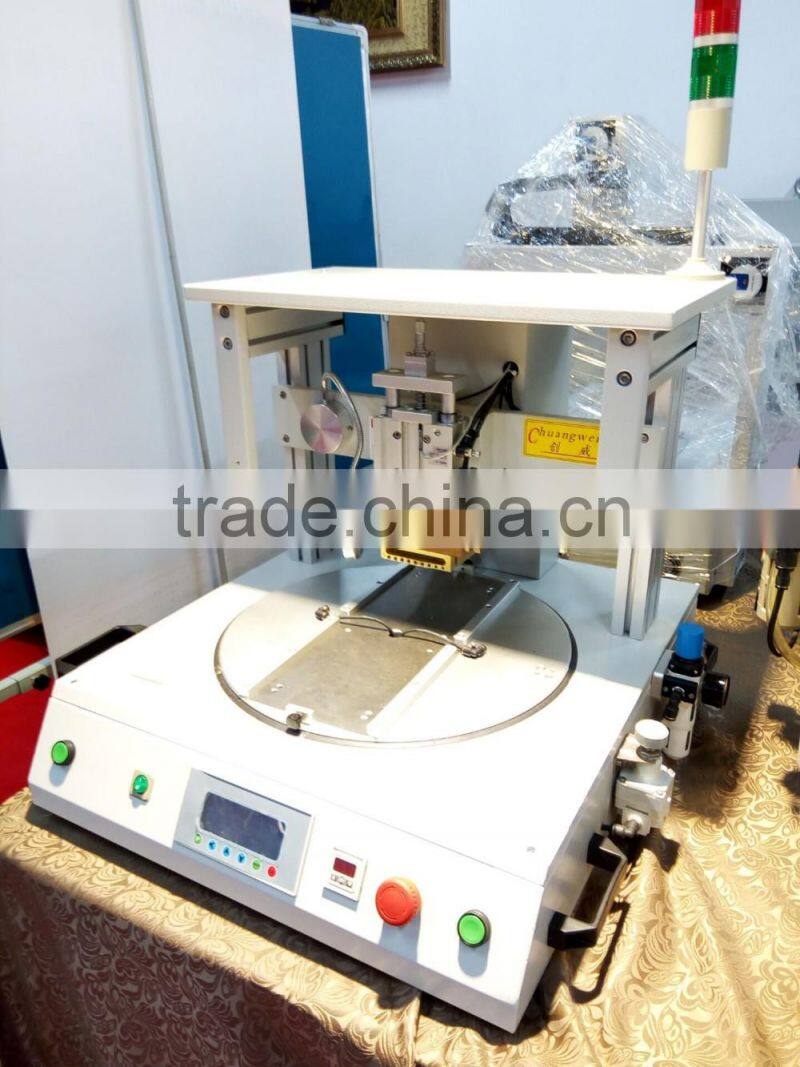

 Automatic Desktop hot bar soldering Machine with Rotary For PCB AssemblyAutomatic Desktop hot bar soldering Machine with Rotary For PCB AssemblyAutomatic Desktop hot bar soldering Machine with Rotary For PCB AssemblyAutomatic Desktop hot bar soldering Machine with Rotary For PCB Assembly
