Specifications

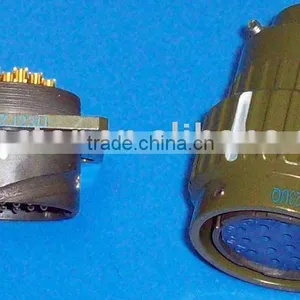

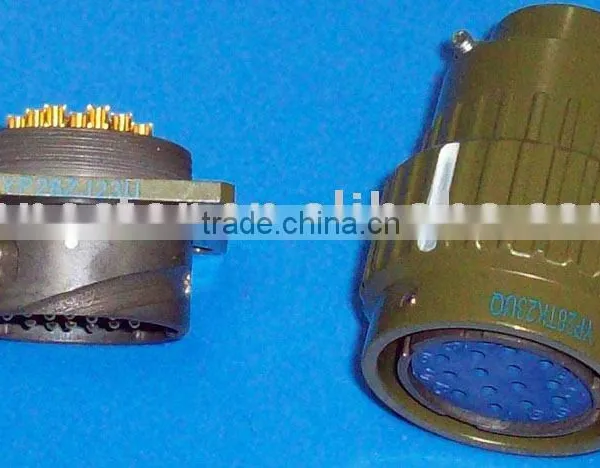

circular connectors YP28 seriesare useed extensively in line connection between electrical equipment,various instruments.Circular connectors YP28 seriesare useed extensively in line connections between electrical equipment,various instruments and meters.These connectors have the features of small volume,light weight,convenient application,high durability of plugging and unplugging,good sealing performance,resistance against corrosion,high conductivity and high dielectric strength.Its the ideal product of a new generation to replace the old P series connectors.
Product Ordering
YP28 - Z J 19U Q
1 2 3 4 5
1. Name of series:YP28 series circular connectors
2. T--Plug,Z--Receptacle
3. Type of contacts : J--Pin,K--Socket
4. Type of contacts figure:19U:mean 10 pins.
5. Termination:Q--Cable shell,without Q: no cable shell.
Technical characteristics
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
Endurance |
|
-40°C~ +85°C |
92~98% at40+2°C |
101.33KPa~6.67Pa |
10~2500Hz,196m/s² |
392m/s² |
500 cycles |
Contact Ø |
Current |
Voltage |
Contact resistance |
Ø1mm |
5A |
250V |
≤5mΩ |
Ø1.5mm |
10A |
250V |
≤3mΩ |
Ø2.5mm(only3,4,5) |
25A |
250V |
≤1mΩ |
Environment |
Voltage proof |
Insulation resistance |
Normal |
1000V |
≥1000MΩ |
High temperature |
900V |
≥1000MΩ |
Moisture |
500V |
≥100MΩ |
