aviation plug

Specifications

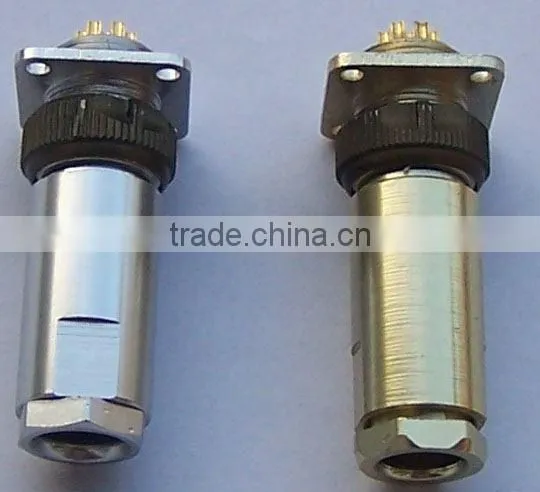

aviation plug,small connector have the features of small size,light weight,convenient application with threaded-coupling connect

aviation plug,small connector have the features of small size,light weight,convenient application with threaded-coupling connection.It can be interchanged with Russian type  PC, They are widely used for the electrical connection between electrical equipments and instruments. Product Ordering

                    PC --  4  Z

                     1     2  3

    1.Name         PC series connectors

    2.Number of contacts 4,7,10,19,32,50

3. T-plug,Z-receptacle,P-Cable shell,ZP- cable receptacle



Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40°C~ +105°C	(92~98)%, at40+2°C	101.33KPa~6.67Pa	10~2000Hz, 196m/s²	392m/s²	500 cycles



Current	Voltage	Contact resistance	Contact Ø
3A	200V	≤8mΩ	Ø1mm



Environment	Voltage proof	Insulation resistance
Normal	1000V	≥1000MΩ
High temperature	700V	≥500MΩ
Moisture	500V	≥50MΩ
Low pressure	200V	-
