Outdoor wall pack led retrofit 120w DLC ETL with 5 years warranty
| Product Parameters: |
| Power | 120W |
| PF | >0.90 |
| Input Voltage | 100-277VAC / 50-60Hz |
| Operating Temperature | -40 ~ 50°C |
| Beam Angle | 90×135° |
| Light Source | Cree XTE or Samsumg |
| Lamp Driver | MEAN WELL |
| LED Luminous Efficiency | 100lm/w |
| Luminous Flux | 12000lm ±5% |
| Lamp's Efficiency ( %) | >95 % |
| Color Temperature Standard | Warm White: 2,700 ~ 3,500 K |
| Natural White:4,000~5,000 K | |
| Cool White: 5,500~6,500K | |
| Color Rendering Index(CRI) | Ra>80 |
| LED Emitter Life | 50,000 hours |
| Storage Temp | -40 ~ 50°C |
| Size | 366*226*196mm |
| Applications | parking garage ,warehouse ,shopping mall etc. |
| Products Advantage: |
1. Including series of patents, Unique funnel heat sinker, making the lamp better for heat dissipation. Fresnel teeth lighting design for the PC cover, which is suitable for wall light distribution.
2. The LED driver and LED light source are separated, which is convenient to install assembly and replace.
3. Beauty for the appearance, using Samsumg or Cree LED.
4. Lamp luminous efficiency between 90lm/w.
5. Meanwell Driver are applied.
6. Beam angle:90*135 degree.
7. IP65 for outdoor application.

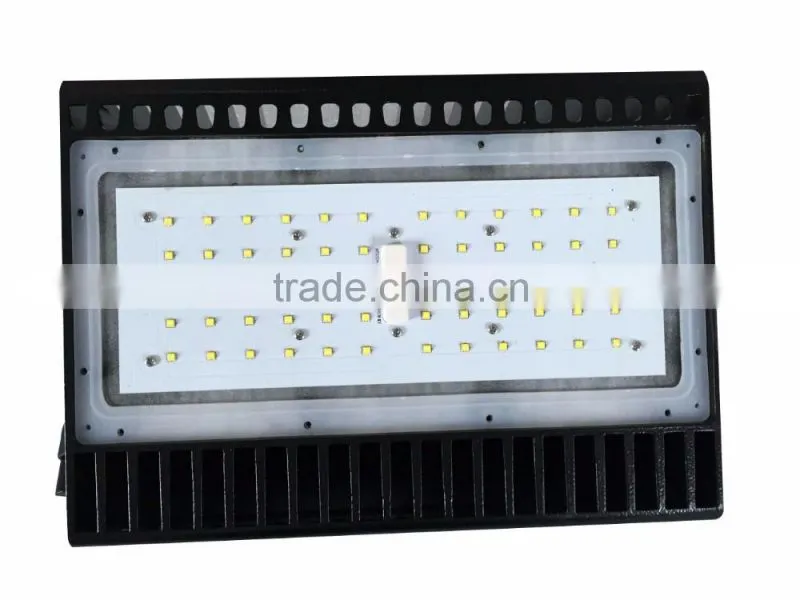

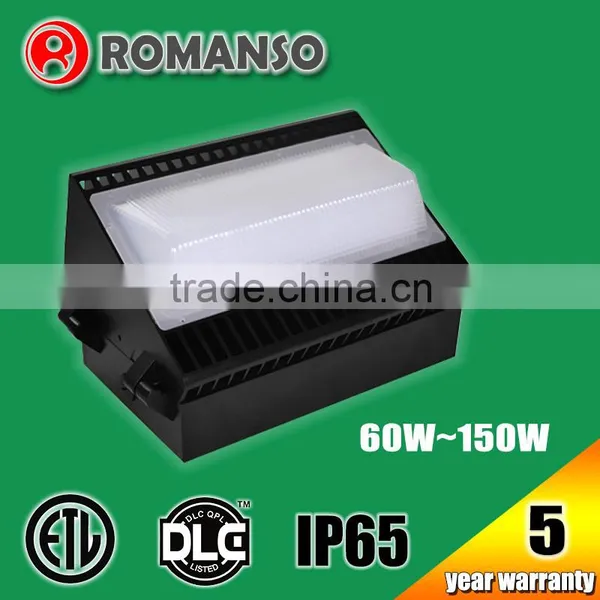

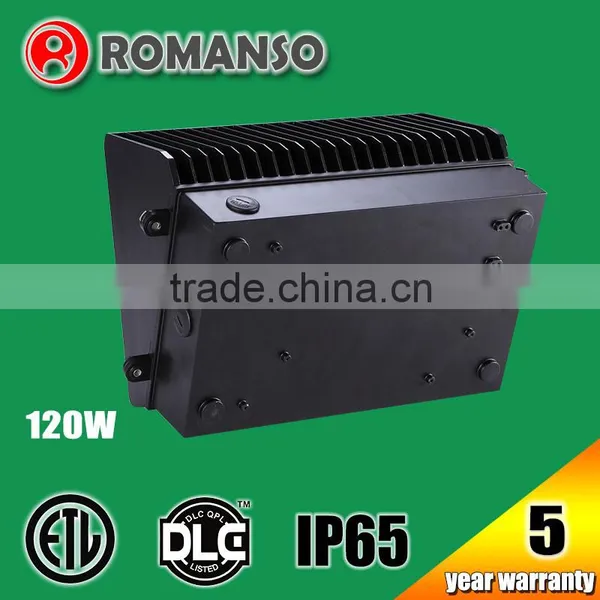

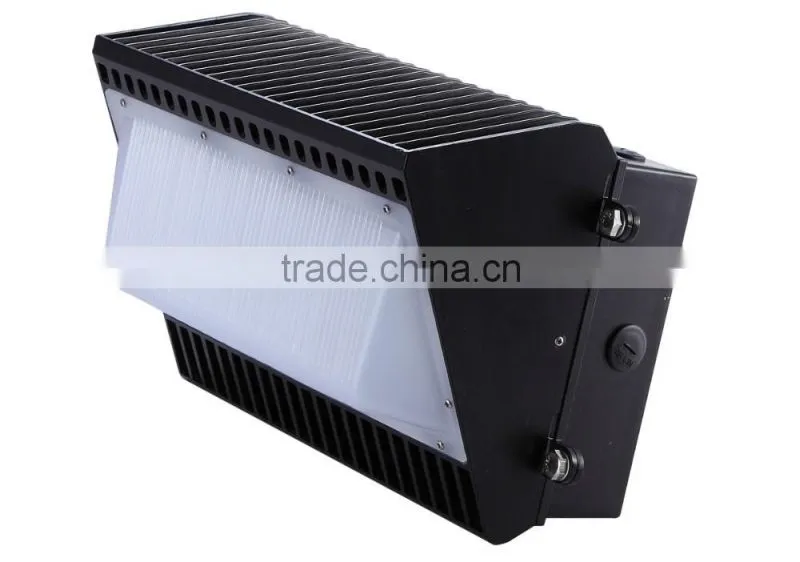

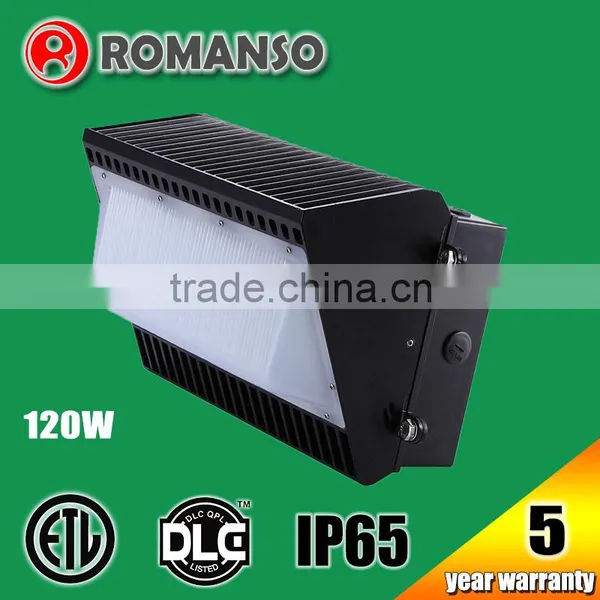

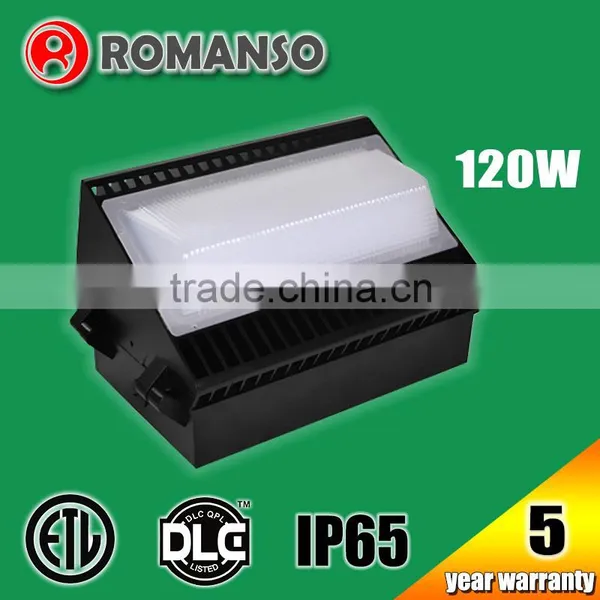

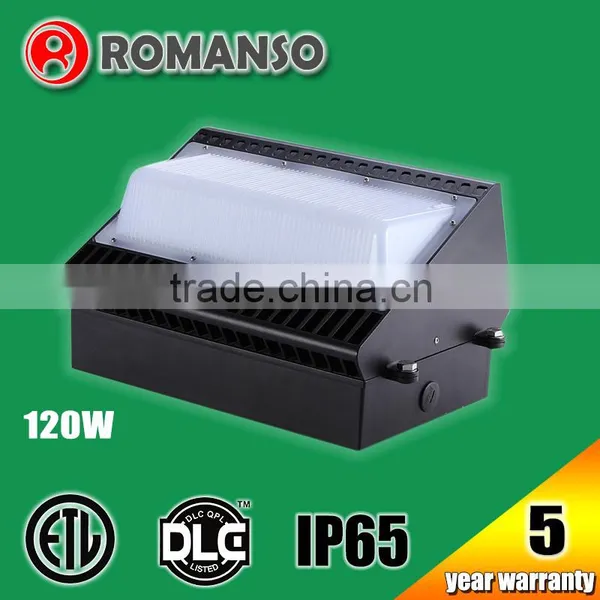

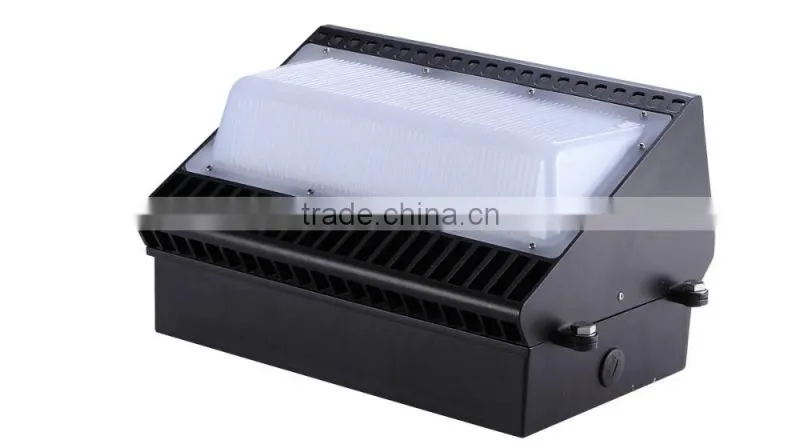

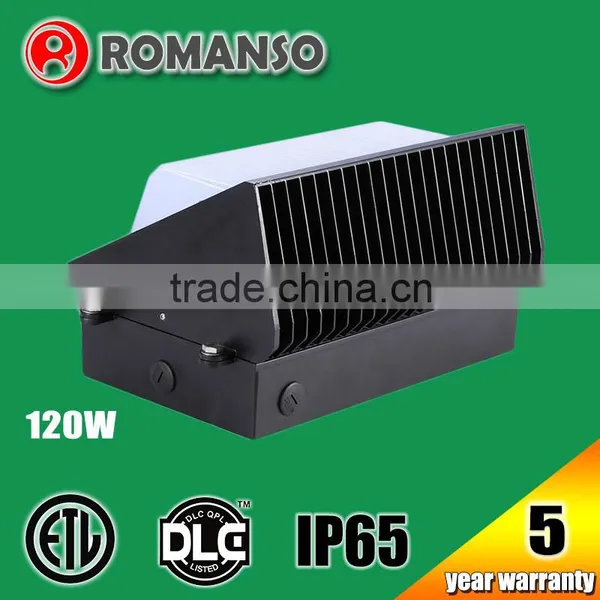

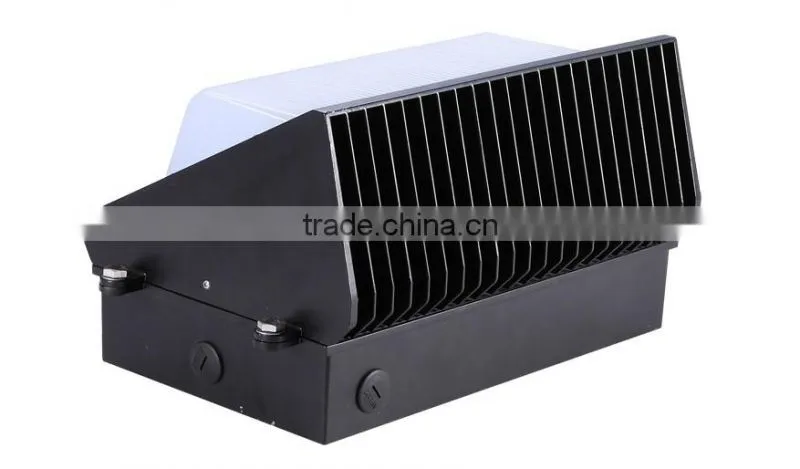

| 120W LED Wall Pack Pictures: |
| Dimensional Drawing: |

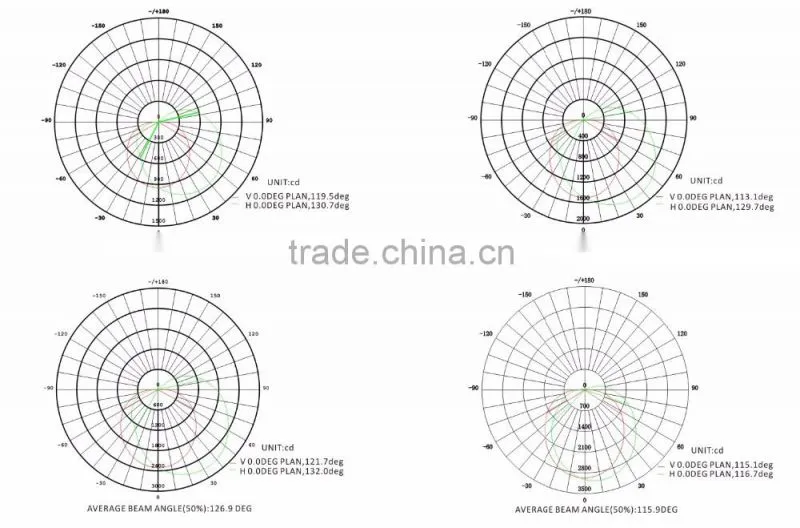

| Light Distribution Curve: |

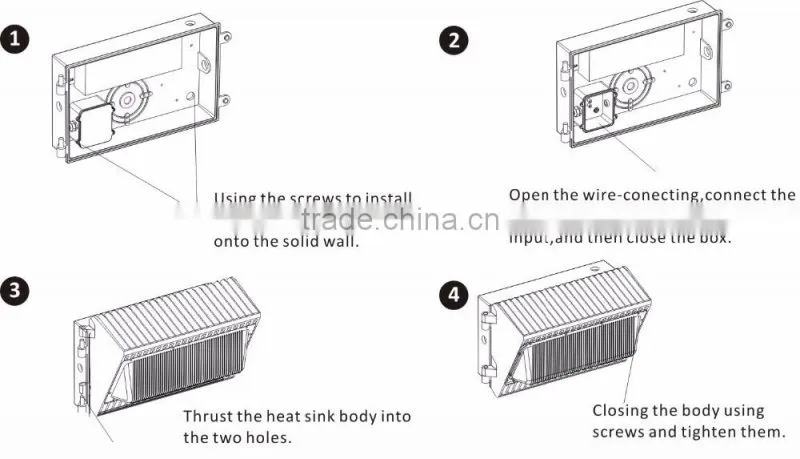

| PInstruction for Installtion: |
| Attentions for Installation: |
1. Cut off the power and make sure the wall can burden the weight of the lamp before install.
2. Make sure the lamp correctly install, in case of the lamp’s dropping down.
3. Don’t use the lamp in the area with aggressive gas.
4. Don’t cover the lamp with anything ,which is harmful for heat dissipation.
5. Be careful and connect the group line well.
6. Products faults caused by separating, remodeling, or incorrectly instruction are not in the warranty area.

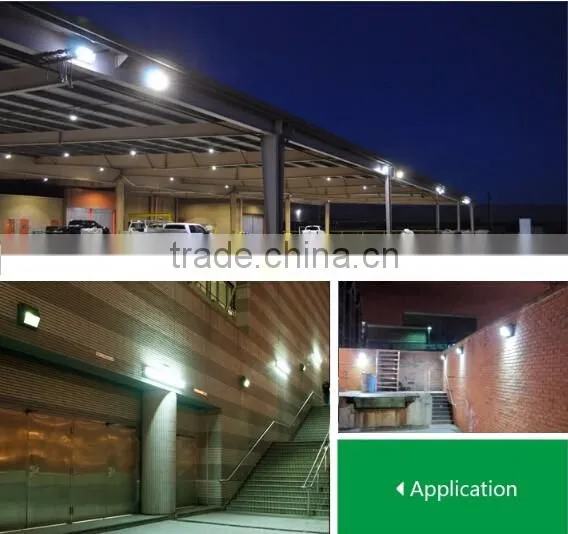

| LED Wallpack Application: |
Stadium Square,Billboard ,Parking Lot ,Garden ,Building , Factory ,Warehouse , ,Gas Station,Gateway etc

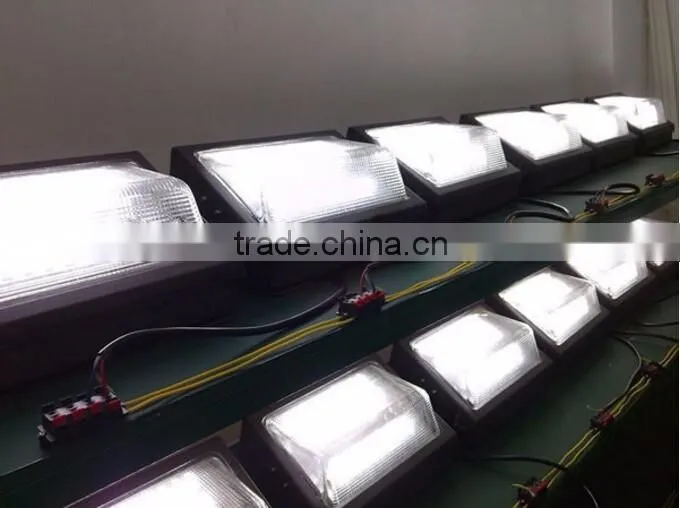

| Quality Assurance: |
Strict adherence to international quality standards and control measures drive down maintenance costs for more efficient business performance, and every new product is tested by an independent testing center,ensuring all IES files are fair and impeccable product reliability .In addition,a global written warranty accompanies every Romanso product to guarantee complete customer satisfaction.

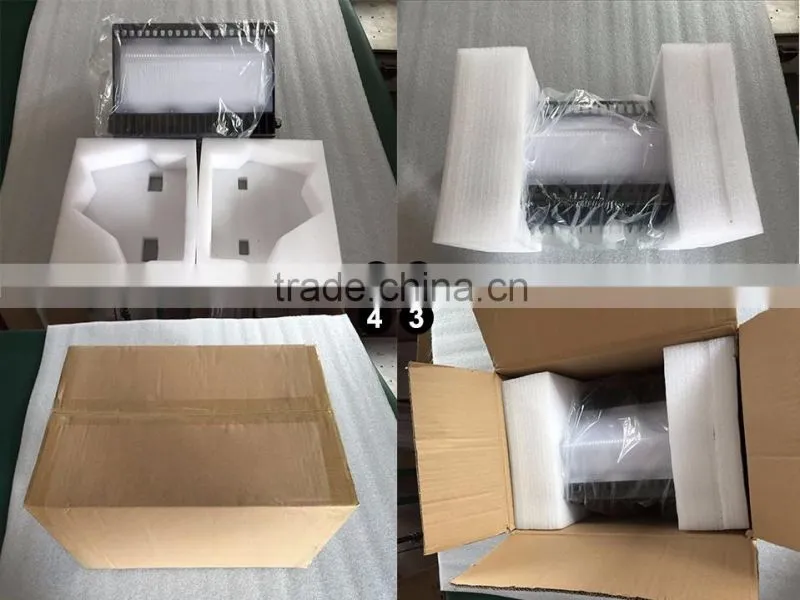

| Packaging: |
| Abuot US: |
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples need 3-5 working days, mass products need 7-10 days.
Q3. How do you ship the goods and how long does it take to arrive?
A:Express(DHL,UPS,Fedex or TNT.), Air or Sea shipment is available depends on your need. It usually takes 3-5 days to arrive except Sea transportation.
Q4. How to proceed an order for led light?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. If mockup is ok, finally we will go to mass production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, our defective rate is less than 0.2%, so there is no big problem to the lights. Secondly, we usually offer 2 years warranty for our lights. Thirdly, during the guarantee period, we will resend new lights with the new order for small quantity. If there are many lights don't work, we can repair them, then resend them to you.
