best selling products pe coat paper cup making machine
Instructions :

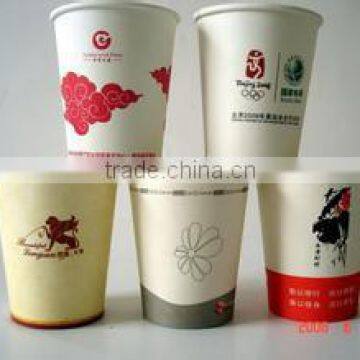

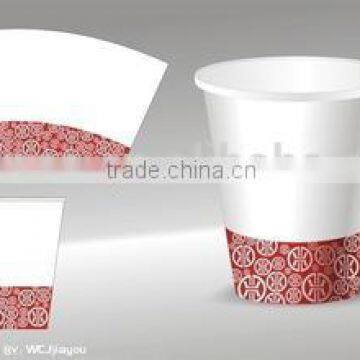

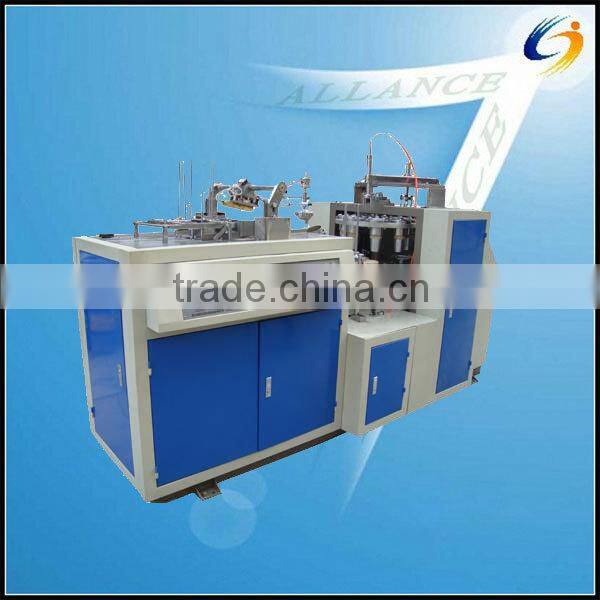

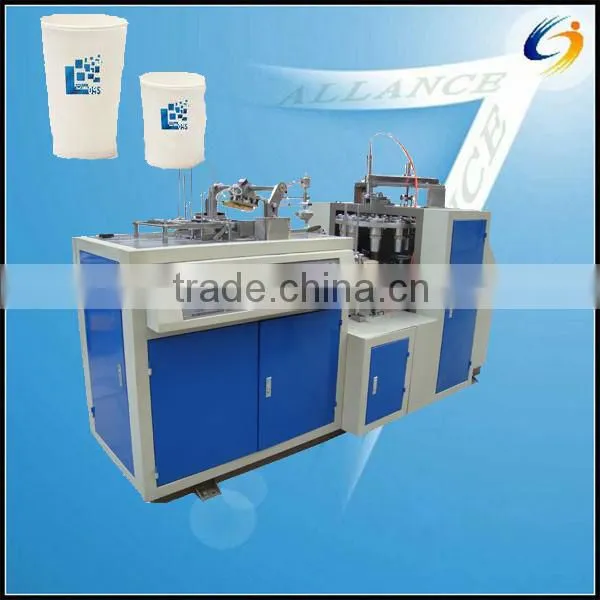

Single PE coated paper cup machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper feedint,cup-fan-wallsealing.oiling.botom-punchint,hearing,rolling,rimming,rounding and trip Ping. It ia an idol equipment of producing dringking cup,ice-cream cup and other food cone-shaping containers.This type paper cup machine mainly used to making one side PE coated cups from 2oz to 16oz.
Technical Specifications:
cup size | 2-16oz |
material | 150-380g/m2 single side PE-coated paper |
capacity | 45-55pieces /min |
Power supply | 220V/50Hz 380V/50Hz |
Total power | 5KW |
weight | 1600kg |
Overall dimensions | 2700x1400x1700(mm) |
The demonstration figure of production line:
1.Purchase papers from the paper factory, They can be roll(left) or cut sheet(right).(Papers per ton will be 80% wall papers and 20% bottom papers)
2.print the papers in different designs and size.
3.Buy the die cutting machine to cut the printed papers in fan shaped, or to finish the process in the print factory.
4. Put the cut and printed wall papers and the roll bottom papers to produce cups.
5.Cups are here.
1. Over 10 years eperience.
2. TUV, BV international certificate.
3. Export to Italy, Spain, Slovakia, Yemen, etc. winning great popularity.
4. One year warranty.
5. Fast, timely delivery & reliable after-sales service.
6. Spare parts & tools delivered with harvester for daily maintenance.
7. Customers & quality first

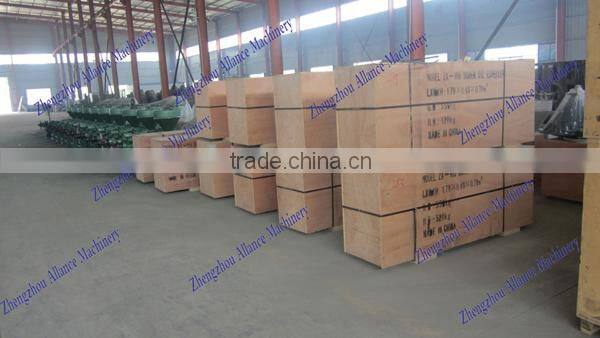

Transportation
sea transportation, air transportation, railway transportation, highway transportation, express
transportation
Acceptable payment
T/T, Escrow, L/C, Western Union,Moneygram,etc

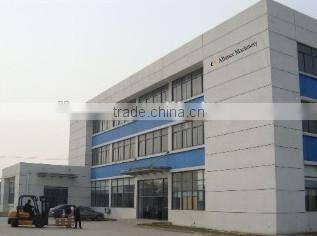

Established in 2004, Zhengzhou Allance Trading Co., Ltd. is a professional manufacturer and exporter, which is concerned with the design, development and production of Food machines, Pellet machines, Agriculture machines and Industrial machines. we have received ISO9001:2000 certification and other authority. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, Europe, South America, Asia and Africa.We are looking forward to forming successful business relationships with new clients around the world in the near future
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, ISO etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.how can i print it and cut it ?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.
Q3.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q4. if the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
