Help CenterGas Transmission Rate Testing Machine (GTR Tester)
Related Products
-
Oxygen Permeation Tester/OTR for Fims and Polymer(ASTM D 3985)NegotiableMOQ: 1 Piece -
Gas Transmission Rate Testing MachineNegotiableMOQ: 1 Set
-
N530 Film Gas Transmission Rate TesterNegotiableMOQ: 1 Set
-
Oxygen Permeability Testing Instrument (Y310)NegotiableMOQ: 1 Piece
-
O2TR Testing Machine (Y210)NegotiableMOQ: 1 Piece

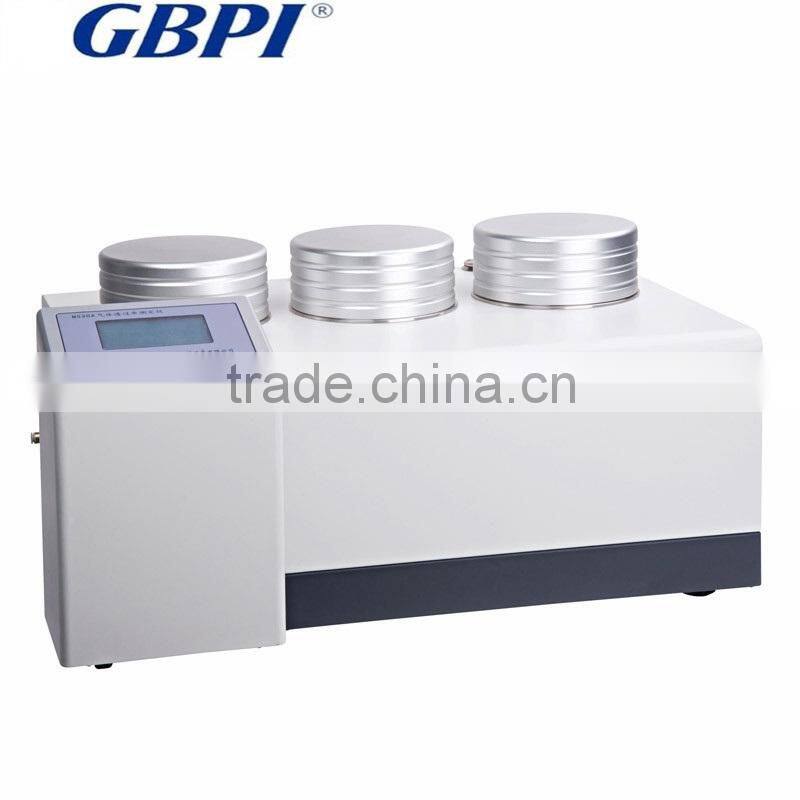

N530 GTR tester
GTR tester
Function and usage:
Gas permeation tester tests the gas transmission rate (GTR) of packaging material.
This instrument is widely used in food industry, pharmaceutical industry, cosmetics flexible packaging materials industry (plastic film, barrier materials, sheets, metal aluminum, PVC, PVC sheets), college, university and quality institution for gas(O2,CO2,N2,ect)permeation test and quality control.
Standards:
ISO 2556-2001,ISO15105-1,GB/T 1038-2000,ASTM D1434-82(2003),YBB00082003.
Application :
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Techinical Parameters:
Measuring range | 0.02~5000 cm3/m2 .day.0.1Mpa 0.2~50000 cm3/m2 .day.0.1Mpa(by use expansion the mode) |
Measuring accuracy | 0.01cm3/m2.day.0.1Mpa |
Testing temperature range | 15°C~35°C, |
Temperature precision | ±0.1°C |
Resolution ratio | 0.1pa |
Vacuum | <20pa |
Carried gas inlet | 1/8 inch |
Sample thickness | ≤2mm |
Dimension | 700(L)mm×520(W)mm×380(H)mm |
Power supply | AC220 V/50Hz |
Sample area | Φ80mm, transmission area 50.24cm2 |
Gas Pressure | 0.2-0.8Mpa |
Features:
1. Automatic test, user friendly, non-maintenance design;
2. Two test mode of high and low, width measurement range, high precision ;
3. Superior components, accurate test result, high stability;
4. Automatically increase and decrease temperature, no special requirements to the environment.
After sale Service:
l 2 years coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
