Help CenterOxygen Permeability Testing Instrument (Y310)
Related Products

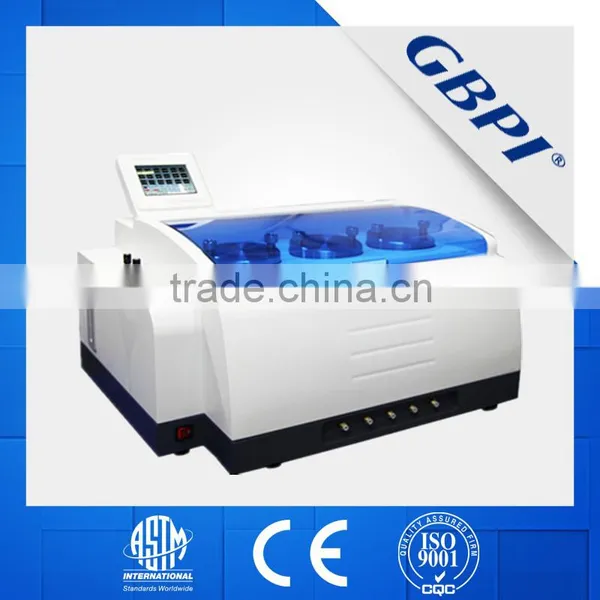

Y310 Oxygen Permeability Testing Insrtument
Oxygen Permeability Testing Insrtument
Standards:
GB/T19789-2005, YBB00082003, ASTM D3985, ASTM F2622, ASTM F 1927, ASTM F 1307, ISO 15105-2, DIN 53380-3, JIS K-7126-B
Function:
To test the oxygen transmission rate (OTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.
Application :
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Working principle
Gravimetric method. Fix the test sample in the middle of test chamber to separate the chamber into upper room and lower room; humid gas flows in upper room, and place desiccant device in lower room; as in lower room it remains dry (0-8%RH) by desiccant, water molecules penetrate through the sample from upper room into lower room, absorbed by desiccant; then the cup weight will increase; system weigh the increasing cup weight so as to calculate the water vapor transmission rate.
Working principle diagram:
Techinical parameter:
Test range | 0.02 ~ 16500 cm3/m2*24h (transmission max: 260000 cm3/m2*24h) |
Test accuracy | 0.001 cm3/m2*24h |
Temperature range | 15℃~45℃ (5℃~50℃ optional) |
Temperature accuracy | ±0.1℃ |
Humidity range | 0%RH, 30~90%RH, 100%RH |
Humidity accuracy | ±2%RH |
Gas supply pressure | 0.1~0.2MPa |
Environment temperature | 23℃ |
Sample size | Φ100mm |
Test area | 50.24cm2 |
Sample thickness | ≤ 2mm |
Number of samples | 3 pieces |
Carrier gas port | 1/8 inch |
Instrument size | 600x460x360mm |
Power supply | AC 220V 50Hz |
Features:
1, Automatic test, use friendly,
2, High-precision sensors with over-range protection, continuous data collection, accurate and reliable data;
3, Two calibration methods of standard gas calibration and standard film calibration,
4, Versatile functions such as the auto leakage protection function, automatically judges and stops;
5. Double chamber pressure control and pressure automatic balance.
6. Superior components ,multi-level security protection design;.
7. Versatile operation language support .
After sale Service:
l 2 years coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
