Home > Industrial Equipment & Components > Valve > Ball Valve > 2016 Wholesales Price Electric Brass Motorized Ball Valve

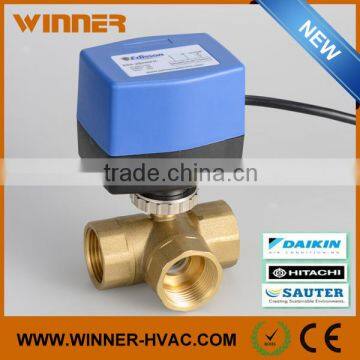

2016 Wholesales Price Electric Brass Motorized Ball Valve

2016 Wholesales Price Electric Brass Motorized Ball Valve thumbnail-1
2016 Wholesales Price Electric Brass Motorized Ball Valve thumbnail-2
2016 Wholesales Price Electric Brass Motorized Ball Valve photo-1
2016 Wholesales Price Electric Brass Motorized Ball Valve photo-2
US$ 15 - 30 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Winner Ball Valves Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha Shanghai Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Other, Solenoid, AC220V+/-10%
Material Brass
Temperature of Media Medium Temperature
Media Water
Port Size 1/2", 3/4", 1"
Place of Origin Hunan, China
Model Number WRA6320A
Brand Name WINNER
Application Other, HVAC System
Motorized Ball Valve

Product Application

HVAC system.

heating system.

Water treatment system,.

Industrial equipments

Control Type
Model
Power Supply
Parameters
Working Principle
3-point
WRA-6320
AC220V+/-10%
Power Consumption: 5W
Running time: 16s/50Hz
Ambient Temperature: -20~70 C
Ambient Humidity: 0~95% RH
Protect Rank: IP54/IP55
Output Torque: 4N.m
When black wire is in power-up state, the valve opens. And the motor will auto turn off, after the valve opens totally. When brown wire is in power-up state, the valve closes.
WRA-6310
AC110V+/-10%
WRA-6302
AC24V+/-10%
ON/OFF
WRA-6320A
AC220V+/-10%
When the black wire is in power-up state, the valve opens. When the black wire is in power-off state, the valve closes.
WRA-6310A
AC110V+/-10%
WRA-6302A
AC24V+/-10%

Motorized Ball Valves Main Features

1) Easy Installation

2) Compact Size

3) Excellent capacity of water stoppage

4) Large Water Flow Rate

5) Zero dirt block

Winner Certificates

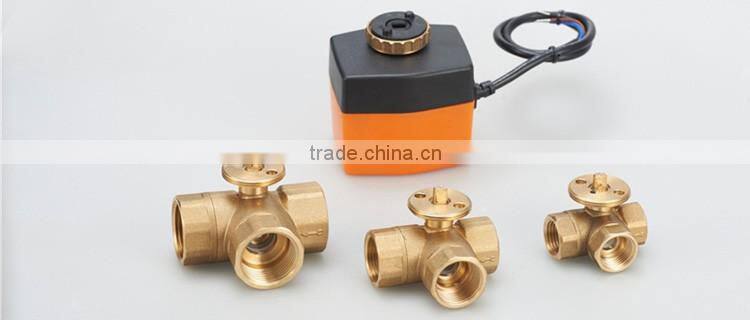

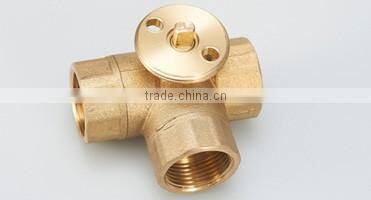

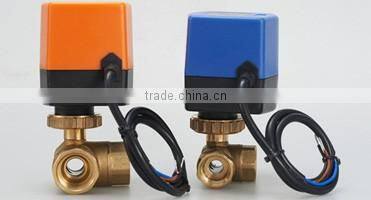

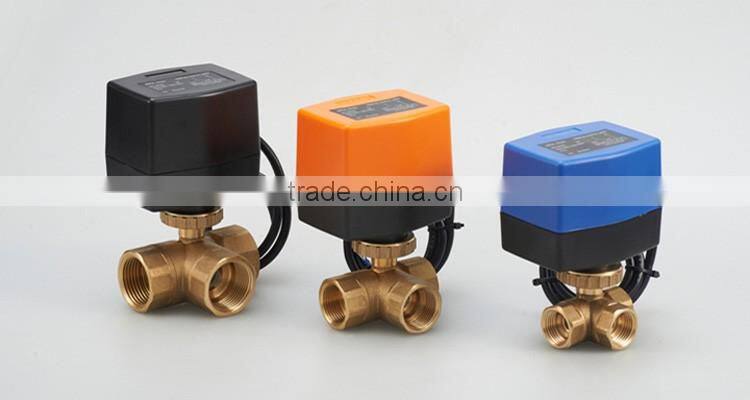

Detailed Images

Motorized Ball Valve

Name: Motorized Ball Valves

Brand: WINNER

Original: China

AC220V, ON/OFF Control Type, 3 Way, DN25 Motorized Ball Valves

Our Service


Our Services

Before service:

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service:

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.

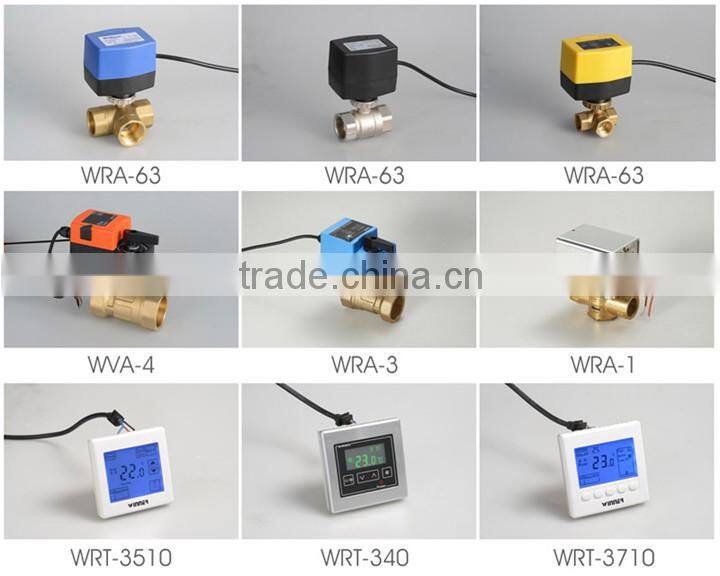

More Products
