BSP Threaded Standard Female Ball Valve with Motorized Actuator
Product Name |
BSP Threaded Standard Female Ball Valve with Motorized Actuator |
| Actuator motor | AC motor |
| Power supply | 220+/-15%VAC |
| Output torque | 4N.m |
| Running time | 16S |
| Pressure grade | PN20 |
Shell color |
Orange,Yellow,Blue,Black |
OEM & ODM |
Accept |
| Medium temperature | 2~90° -10~120° |
| Thread Type | BSP NPT |
Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Application
HVAC system,
heating system,
Water treatment system,
Industrial equipments
Operational mode

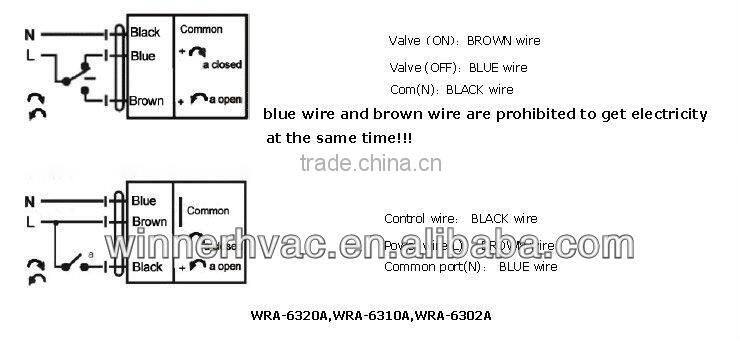

Winner motorized ball valve is motor-operated by a type of WRA-63…, and WRA-63…A actuator. The actuator is controlled by a modulating on/off or 3-piont control system and move the ball of the valve, to the opening position dictated by the control signal.

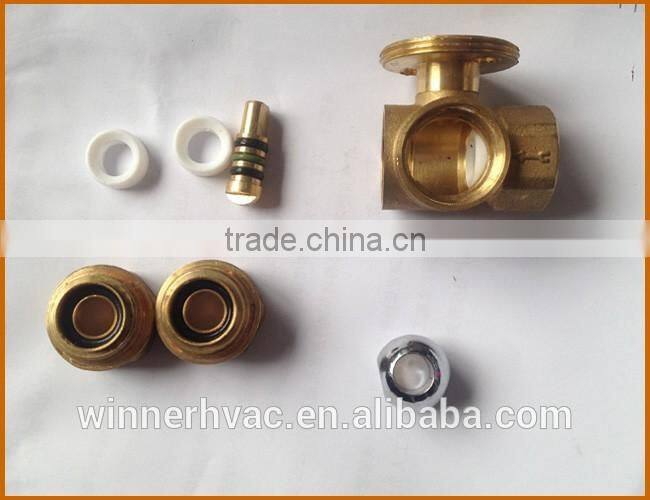

female ball valve Material
| Part | Material |
| Valve Body | Hpb59-1 |
| Seal | Ball: PTFE+EPDM with double O-ring |
| Stem: PTFE+EPDM with double O-ring | |
| Actuator Shell | PC+GF10 |
| Actuator Base | PC+GF10 |
| Actuator Revolving Shaft | POM |

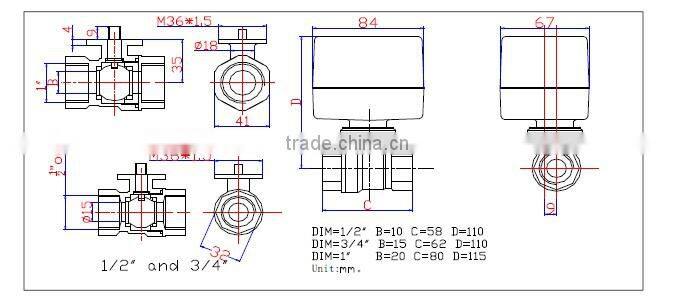

female Ball Valve Body
| Valve Body Model | Type | DN(mm) | DN(inches) | Kvs(m3/h) | Medium | Temperature | Admissible pressure | Closing Temperature |
| W8BV215 | 2way | DN15 | 1/2" | 8.2 | ||||
| W8BV220 | DN20 | 3/4" | 21 | Cool/hot water | ||||
| W8BV225 | DN25 | 1" | 26 | 50% glycol solutions | 2~90 C | 2.0MPa | 1400KPa | |
| W8BV315 | 3 way | DN15 | 1/2" | 8.2 | ||||
| W8BV320 | DN20 | 3/4" | 21 | |||||
| W8BV325 | DN25 | 1" | 26 |
female Ball Valve Actuator
Model No. |
Working Voltage |
type |
torque |
Consumption |
On/off time |
Valve body |
WRA-6320 |
230VAC±15% 50/60Hz |
3-piont or on/off |
>4N.m |
7W |
50Hz:16S 60Hz:12S |
W8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325 |
WRA-6320A |
On/off |
|||||
WRA-6310 |
110VAC±15% 50/60Hz |
3-piont or on/off |
||||
WRA-6310A |
On/off |
|||||
WRA-6302 |
24VAC±15% 50/60Hz |
3-piont or on/off |
||||
WRA-6302A |
On/off |

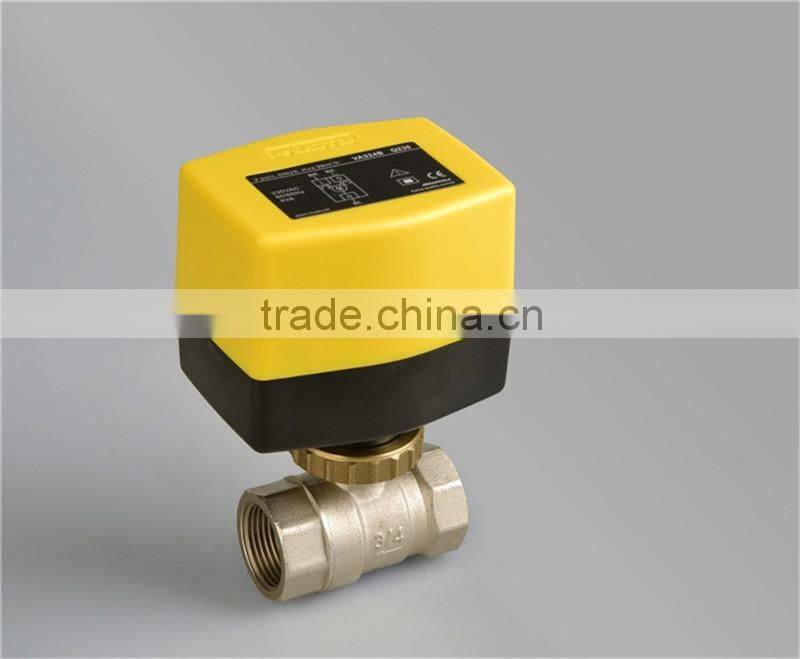

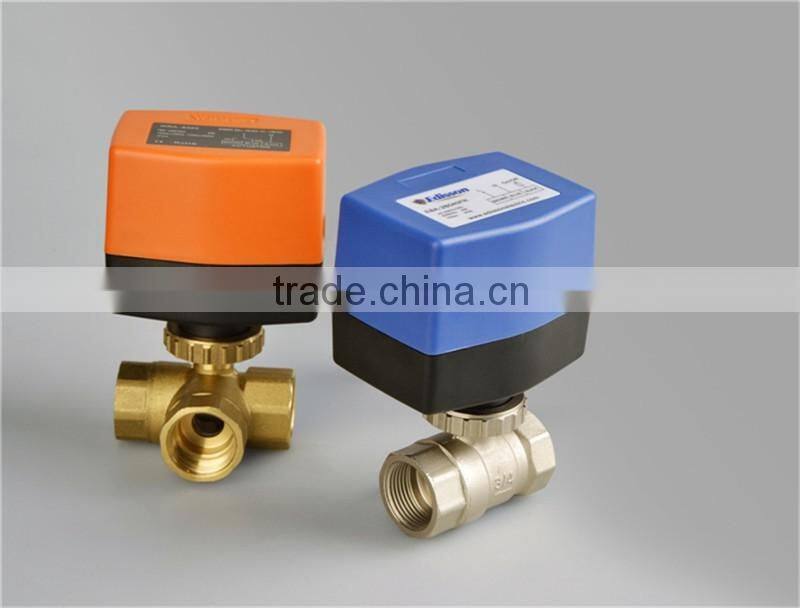

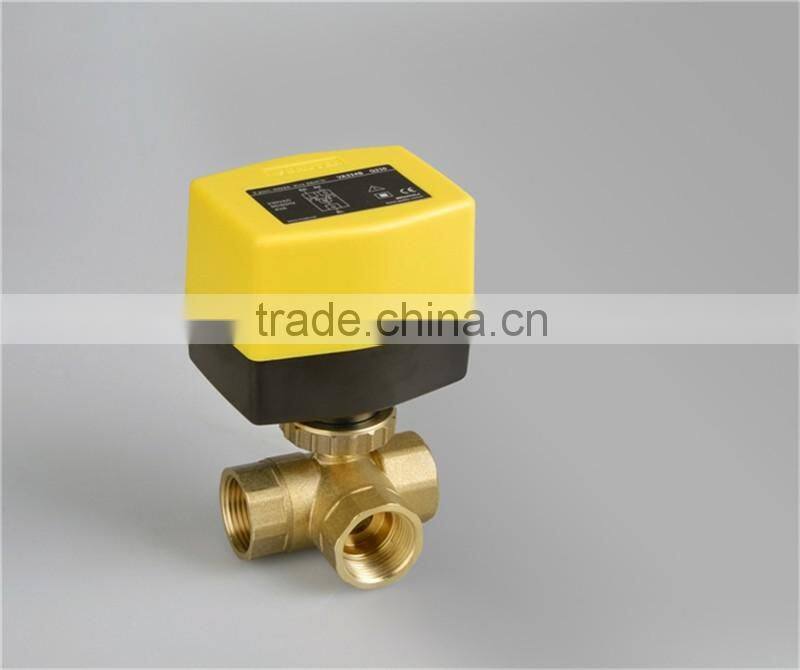

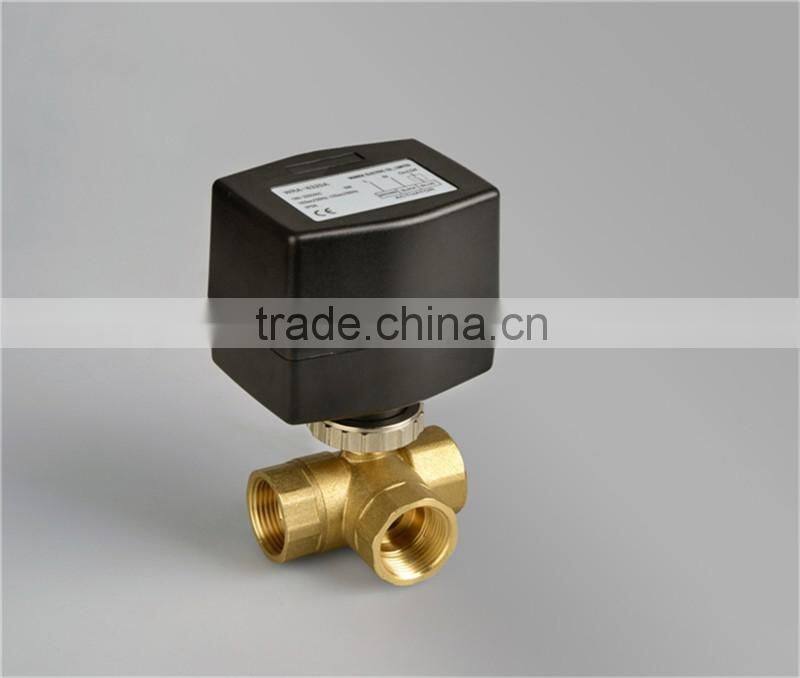

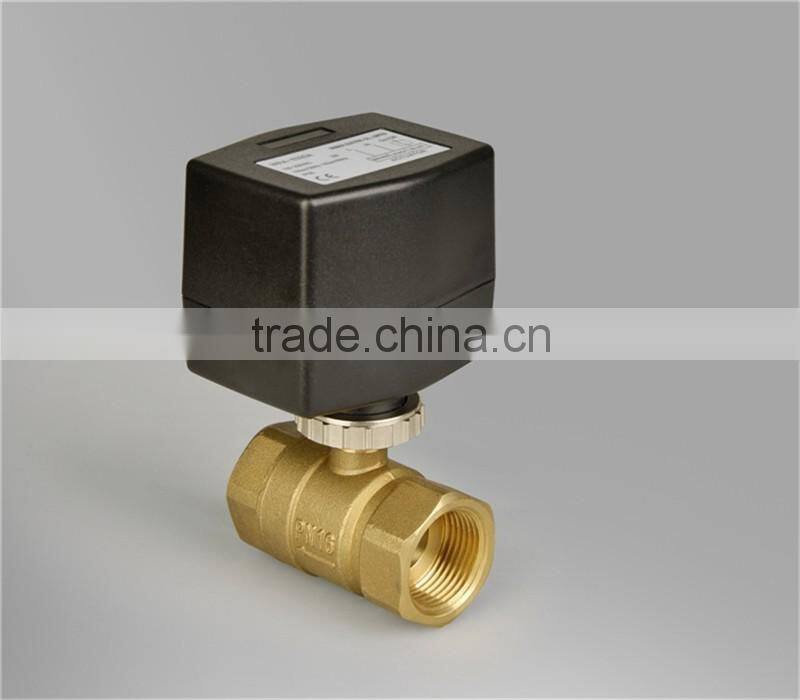

Pictures Of Product
