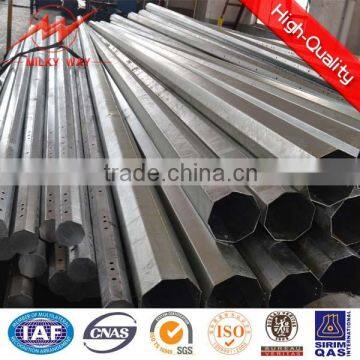

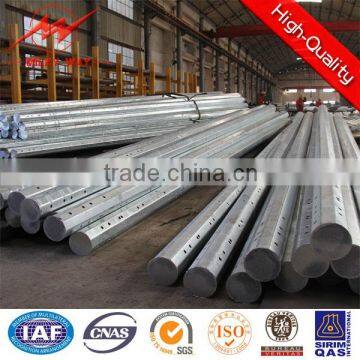

Galvanized Electric Pylonal Utility Steel Transmission Pole

Type

galvanized electric pylonal utility steel transmission pole

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2

              Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of dimenstion

+- 2%

Power

10 KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour . 30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to

your specification give you a similar price.
2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?

A: It's no problem if you are a small wholesaler; we would like to grow up with you together.

Q3. I am a designer; Can you help me to produce the sample which we designed?

A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your

design come true.

Q4. We want be your agent of our area. How to apply for this?

A: Please send your idea and your profile to delia @yin-he.com

Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles,

including street lighting pole, power transmission pole, floodlighting pole for large squares and other steel products

since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list.

Please send us your selling data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with

shipping company because we have do much of this every day. So it will save your time also money.

Best Service: --At Jiangsu Milky Way Steel Poles Co.,Ltd, our #1 priority has always been providing our clients with great quality products and superior Customer service.

Quick Lead Time.--We're dedicated to providing the quickest turnaround times and work  Hard to

ensure that all of your deadlines are meet.

Unbeatable Prices-- We continuously strive to find ways of reducing our production costs, and passing the savings

Over to you!

Unbeatable Quality --we always supply good quality also leading products to our VIP customers.

Brand Awareness -- The goal of any strong brand is achieve a level of awareness that instills the

idea of quality and value into all of your customers.

Special Offers.  --   In order to maintain our competitive edge, we are constantly running special offers on

our products, consumer goods, and design services. Contact our sales team to see how we can help you

save a lot of money.

Special support.--    we have a policy term to support our VIP customers for products also payment.

1.Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result.

2.Lowest MOQ: lowest quantity from 1Ton depends on different style .

3.OEM Accepted: We can produce any pole of your design.

4.Good Service: We treat clients as friends.

5.Good Quality: We have very strict quality control system .Good reputation in the market.

6.Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ).

7.Manufacturer Capacity : 300 pieces/day.
