Jiangsu Milky Way Steel Poles Co., Ltd.: Wuxi, Jiangsu, China; Main products: Steel Pole Street Lighting Pole, Power Transmission Pole, High Mast Pole, Steel Tower, Communication Tower All for export

Home > Products > Electrical Power Pole > Polygonal Tubular Poles for Electrical Transmission

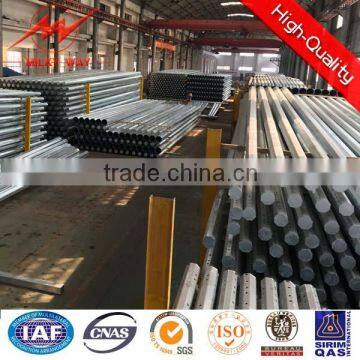

Polygonal Tubular Poles for Electrical Transmission

Name: Polygonal Tubular Poles for Electrical Transmission
Brand: Milky Way
Availability: InStock

FOB Price

US$ 50 - 300 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Milky Way
Model Number	Transmission steel power distribution pole

Product Description

Polygonal Tubular Poles for Electrical Transmission

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

Company Information

Part No	Polygonal Tubular Poles for Electrical Transmission
Height	6m to 27m
Suit for	Airport ,seaport,plaza,stadium ,square,highway,street way etc
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52
Lamp power	20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz
Torlance of the dimenstion	+- 2%
Optical assembly of lighting fixture	IP 65
Electroshock resistant protective grade	Grde I
The casing anti-corrosion performance	Class Ⅱ
Working atmosphere of lighting fixture	-35 ℃~+45 ℃
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160km/hour
Minimum yield strength	335mpa
Minimum ultimate tensile strength	400mpa
Max ultimate tensile strength	620mpa
Standard	ISO9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1mm to 30mm
Production Process	Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
Style	Size and styles are veriable as per customer request

Packaging & Shipping

Product Description

Production Process

As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .

Material

All of our material are purchased from famous mill factory to assure the quality

A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

Inspection

To assure our products qualified ,we take steps as follows :

1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment

Design and Detail

Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly

Project

We have completed many big and important project all over the world and win the trust of our client

Buyer Feedback

FAQ

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, cross arm and anchor part.

Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.

2. MOQ: 1 sets for Customized

3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.

5 Warranty : 30 years

6.Surface treatment :hot dip galvanization

Application:

Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.
2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?

A: It's no problem if you are a small wholesaler; we would like to grow up with you together.

Q3. I am a designer; Can you help me to produce the sample which we designed?

A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.

Q4. We want be your agent of our area. How to apply for this?

A: Please send your idea and your profile to delia @yin-he.com

Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole, power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money.

Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

Best Service: --At Jiangsu Milky Way Steel Poles Co.,Ltd, our #1 priority has always been providing our clients with great quality products and superior Customer service.

Quick Lead Time.--We're dedicated to providing the quickest turnaround times and work Hard to

ensure that all of your deadlines are meet.

Unbeatable Prices-- We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!

Unbeatable Quality --we always supply good quality also leading products to our VIP customers.

Brand Awareness -- The goal of any strong brand is achieve a level of awareness that instills the

idea of quality and value into all of your customers.

Special Offers. -- In order to maintain our competitive edge, we are constantly running special offers on

our products, consumer goods, and design services. Contact our sales team to see how we can help you save a lot of money.

Special support.-- we have a policy term to support our VIP customers for products also payment.

Advantage

1.Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result.

2.Lowest MOQ: lowest quantity from 1Ton depends on different style .

3.OEM Accepted: We can produce any pole of your design.

4.Good Service: We treat clients as friends.

5.Good Quality: We have very strict quality control system .Good reputation in the market.

6.Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ).

7.Manufacturer Capacity : 300 pieces/day.
