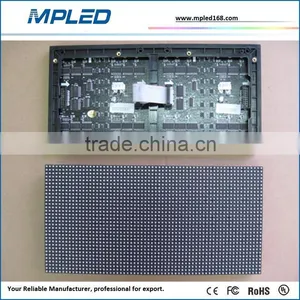

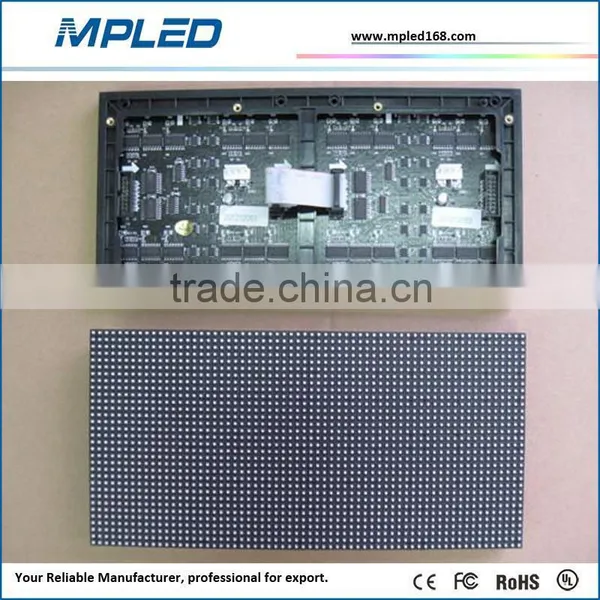

The pictures of MPLED 2835 led module with cheap price is as following:
HD Definition P5 Full Color LED Display Module And Panel , Indoor 64*32 Pixles Black LED Electronic Sign Board
Quick Detail:
1) Stable quality:Opto + Silan chipset;
2) High brightness:1500 ~1800nits;
3) Scan driver:1/16 or 1/8 scan current;
4) Module size(L*W):320*160mm;
Description:
P5 Indoor Full Color LED Display Screen
5mm pixel pitch,1R1G1B,40000 dots/sqm,P5 Indoor Full Color LED Display Screen creates comfortable
brightness and energy saving,display variable video resources,animations,messages to attract attention.
We can see P5 Indoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,
entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,
airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
P5mm Indoor Full Color LED Display Screen:
Pixel configuration |
SMD3528 1R1G1B 3 in 1 |
||
LEDs configuration |
Red:wave length: 625~630nm;300-400mcd |
||
Pixel pitch(mm) |
5 |
||
Pixel density(dots/sqm) |
40000 |
||
Calibrated brightness(cd/sqm,nit) |
2000 nits(adjustable) |
||
Calibrated brightness proportion ratio |
R:G:B = 3:6:1 |
||
Contrast ratio |
4,500:1 |
||
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
||
View angle(degree)(50% brightness) |
V140/H140 |
||
Color capability |
4.4 trillion |
||
Refresh rate(Hz) |
>800 Hz |
||
Frame frequency(Hz) |
>60 Hz |
||
Interface port |
DVI interface(DVI connector) |
||
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
||
LED Drive |
Constant-current |
||
Lifetime(hours)(50% brightness) |
100,000 hours |
||
Signal transmission direction |
Horizontal |
||
Operating temperature(Celsius degree) |
-30 ~ 65 |
||
Storage temperature(Celsius degree) |
-35 ~ 70 |
||
Operation humidity(RH) |
0-95% |
||
Operation humidity(RH) |
0-99% |
||
Service |
Front and back service optional |
||
Control mode |
Synchronous & asynchronous available |
||
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
||
Power |
120/240 VAC single phase(50-60Hz) |
||
Maximum power consumption(W/sqm) |
800 |
||
Average power consumption(W/sqm) |
320 |
||
Screen operation mode(scan/static) |
1/16 or 1/8 |
||
Module configuration(Pixels quantities of the module) |
Length |
64 |
|
Height |
32 |
||
Module dimensions(mm) |
Length |
320 |
|
Height |
160 |
||
Cabinet configuration |
Length |
128 |
|
Height |
128 |
||
Cabinet dimensions(mm) |
Length |
640 |
|
Height |
640 |
||
Width |
90(+module thickness) |
||
Aspect Ratio(L:H) |
4:3 or 16:9 |
||
Packaging configuration |
1~6 standard cabinets in a packing case |
||
Packing material |
Wooden case/carton/flight case(optional) |
||
Packing weight(KG) |
net |
40KG/m2 |
|
gross |
45KG/m2 (Iron) |
||
LED Display Screen Installation Structure:
Hanging ,floor type,push-in- type,wall mounting type,brace type,pillar base...
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
