High Accuracy Hot Metal Detection Sensor
Characteristic
§ Fully Digital "All-in-One" Design
§ LED Bar Display of % IR Input Signal
§ Programmable from 270°C Trip Level
§ Operates 24 VDC Supply
§ Remote Lens Option: 1°or 7° FOV., other angles as option
§ Programmable Response Times from 1ms to 250ms
§ Control Relay, option: Fast Reed Relay Outputs
§ PNP Transistor Outputs, option: NPN
§ Remote Self-Test Facility
§ Integrated Air Purge
General Description

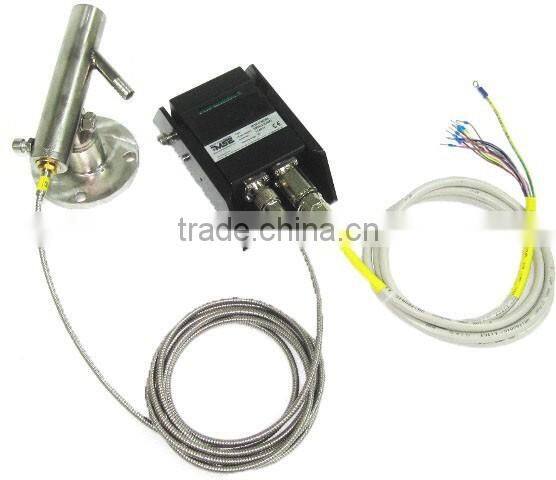

The MSE-FMD95 utilizes a modular digital Controller in protective mounting Cradle, flexible armored optic leads and interchangeable Remote Lenses. As the controller can be used in conjunction with any lens option one, standard controller can be used throughout the mill. Now there is no need to stock a detector for each requirement. Costly multiple inventory can be replaced with one detector.

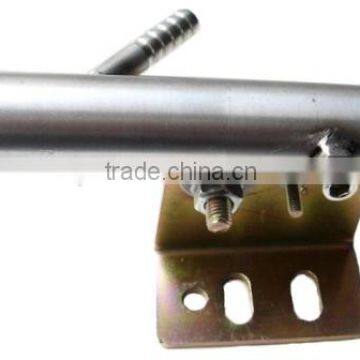

The remote lenses impervious to water & steam are built to withstand the harshest of environments. Used in conjunction with flexible armored optic leads, these lenses provide a high level of optical accuracy by allowing the selection of the ideal lens arrangement for the installation. Robust lenses with temperature ratings of 180°C, 600°C and 1000°C can be mounted close to the hot product. Various robust lens mounts are available including air purge.
General Information
Remote Electronic Controller
Housing: Aluminum AL6, Oven baked black paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.7 Kg
Connector: IP66 Plug/Socket (connected!)
Cable Length: 1.5 M
Remote Lenses

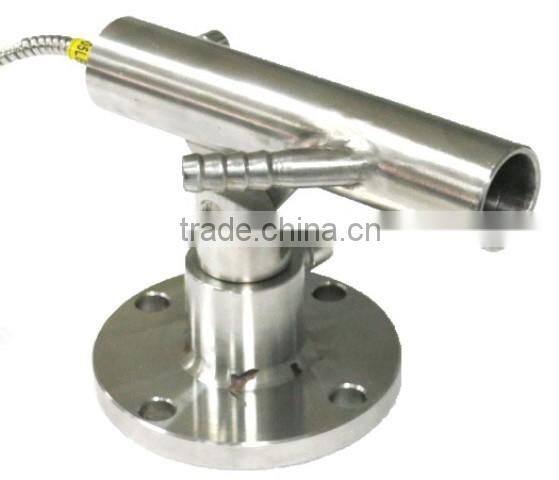

Stainless Tubular Spot:
FOV: 1°or 7°; rated 180°C or 600°C .
High Temperature Quartz Rod: FOV: 1°; rated 1000°C.
Other shapes of FOV possible as option.
Fiber Optic Cables
Flexible Armored Stainless Sheath available in standard lengths from 2 meters to 10 meters in 1 meter lengths; rated 400°C.
Longer optic cables, possible as option.
General Specifications
Lens F.O.V. |
Standard: Spot 1° or 7° |
Sensing Element |
InGaAs Photodiode |
Function Indication |
Left & Right Yellow LEDs |
Remote Self-Check |
Middle Yellow LED |
Min I.R. Threshold Settings |
Down to 270°C via programming switch |
Response Time |
1 ms to 250 ms, via programming switch |
Supply Voltage |
Standard: 24 VDC ± 10% Option: 80-240 VAC / 50-60Hz |
|
Operating Temperature of Controller Unit |
-20°C to +55°C |
Output no.1 |
Cradle Relay Output, SPNO, 240VAC, 8A with 20 ms response time. |
Output no.2 |
Reed Relay Output, SPNO, 240VAC, 0.5A with 2 ms response time. |
Output no.3 and 4 |
PNP and NPN Transistor Outputs, N.O., 500 mA, 45 VDC, 2A peak (requires 24VDC supply) |
