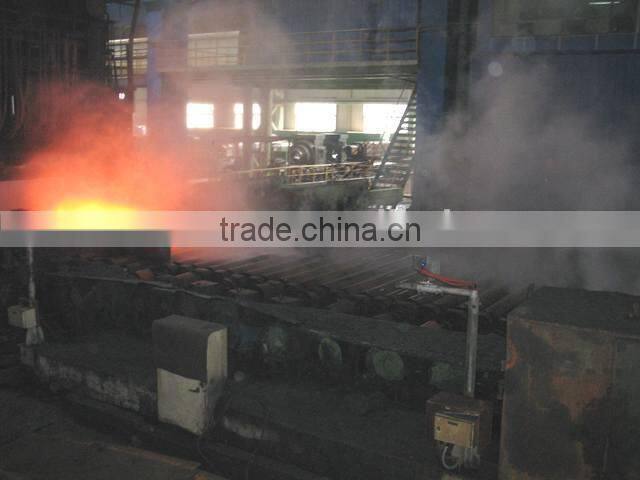

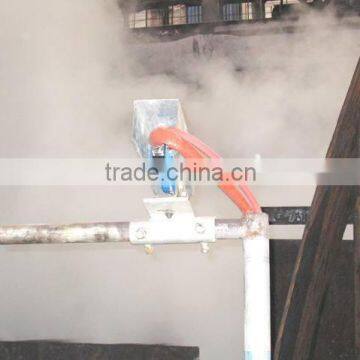

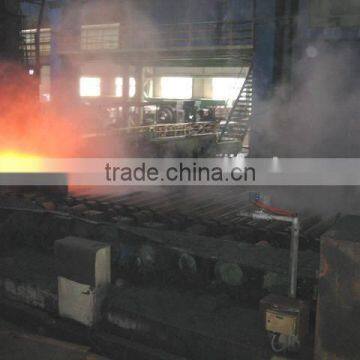

Installed in Rod MILL Hot Metal Detection Device
1. Characteristic
§ Fully Digital "All-in-One" Design
§ LED Bar Display of % IR Input Signal
§ Programmable from 270°C Trip Level
§ Operates 24 VDC Supply
§ Remote Lens Option: 1°or 7° FOV., other angles as option
§ Programmable Response Times from 1ms to 250ms
§ Control Relay, option: Fast Reed Relay Outputs
§ PNP Transistor Outputs, option: NPN
§ Remote Self-Test Facility
§ Integrated Air Purge
2. General Description

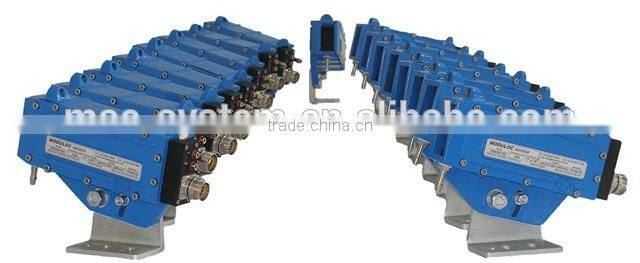

The MSE-FMD95 utilizes a modular digital Controller in protective mounting Cradle, flexible armored optic leads and interchangeable Remote Lenses. As the controller can be used in conjunction with any lens option one, standard controller can be used throughout the mill. Now there is no need to stock a detector for each requirement. Costly multiple inventory can be replaced with one detector.
The remote lenses incorporate filters to minimize sensitivity to extraneous light. For general tracking, spot lenses are commonly used. Where high accuracy is required or the product deviates about the center line (i.e. Rod Mill) a 1° precision lens (option) should be utilized. This lens is also highly suited to Strip Mills.
3. General Information
Remote Lenses
Stainless Tubular Spot:
FOV: 1°or 7°; rated 180°C or 600°C .
High Temperature Quartz Rod:
FOV: 1°; rated 1000°C.
Other shapes of FOV possible as option.
4. General Specifications
Lens F.O.V. |
Standard: Spot 1° or 7° |
Sensing Element |
InGaAs Photodiode |
Function Indication |
Left & Right Yellow LEDs |
Remote Self-Check |
Middle Yellow LED |
Min I.R. Threshold Settings |
Down to 270°C via programming switch |
Response Time |
1 ms to 250 ms, via programming switch |
Supply Voltage |
Standard: 24 VDC ± 10% Option: 80-240 VAC / 50-60Hz |
|
Operating Temperature of Controller Unit |
-20°C to +55°C |
Output no.1 |
Cradle Relay Output, SPNO, 240VAC, 8A with 20 ms response time. |
Output no.2 |
Reed Relay Output, SPNO, 240VAC, 0.5A with 2 ms response time. |
Output no.3 and 4 |
PNP and NPN Transistor Outputs, N.O., 500 mA, 45 VDC, 2A peak (requires 24VDC supply) |
