BEST MEASURING INSTRUMENT

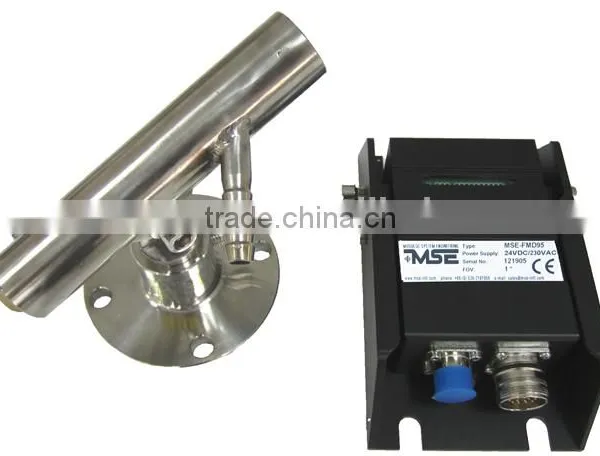

MSE REMOTE HOT METAL DETECTOR MSE-FMD95
1. Characteristic
§ Fully Digital "All-in-One" Design
§ LED Bar Display of % IR Input Signal
§ Programmable from 270°C Trip Level
§ Operates 24 VDC Supply
§ Remote Lens Option: 1°or 7° FOV., other angles as option
§ Programmable Response Times from 1ms to 250ms
§ Control Relay, option: Fast Reed Relay Outputs
§ PNP Transistor Outputs, option: NPN
§ Remote Self-Test Facility
§ Integrated Air Purge
2. General Description
The MSE-FMD95 fully digital “All-in-One” Hot Metal Detector incorporates a bar display showing the IR input signal relative to the pre-set trip level as well as selected programmable thresholds and response times via simple external programming switch action. Operates via highly sensitive and stable InGaAs Photodiode, detection is assured even in the presence of high concentrations of water and steam.

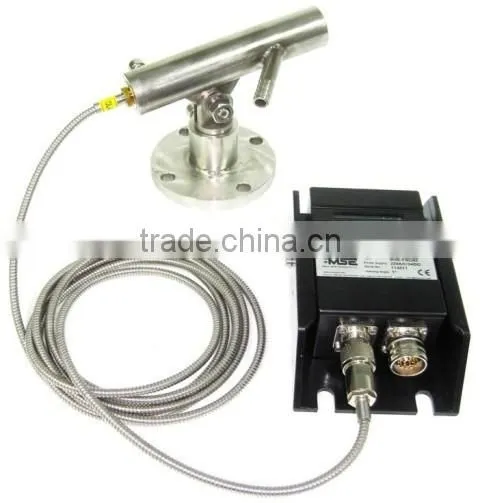

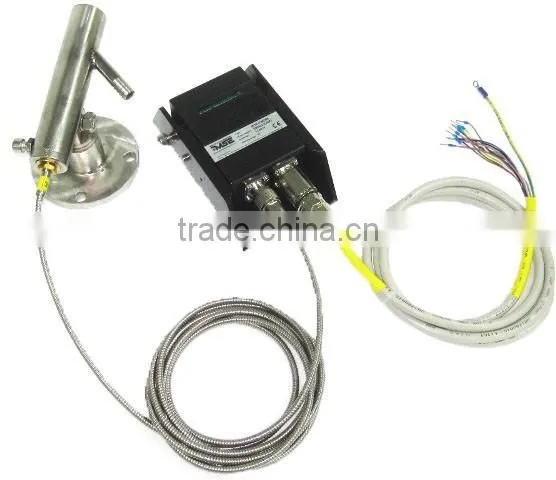

The remote lenses impervious to water & steam are built to withstand the harshest of environments. Used in conjunction with flexible armored optic leads, these lenses provide a high level of optical accuracy by allowing the selection of the ideal lens arrangement for the installation. Robust lenses with temperature ratings of 180°C, 600°C and 1000°C can be mounted close to the hot product. Various robust lens mounts are available including air purge.
3. General Information
Remote Electronic Controller
Housing: Aluminum AL6, Oven baked black paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.7 Kg
Connector: IP66 Plug/Socket (connected!)
Cable Length: 1.5 M
Lens F.O.V. |
Standard: Spot 1° or 7° |
Sensing Element |
InGaAs Photodiode |
Power Indication |
Blue LED |
Function Indication |
Left & Right Yellow LEDs |
% I. R. Signal |
Red / Green / Red LEDs |
Remote Self-Check |
Middle Yellow LED |
Min I.R. Threshold Settings |
Down to 270°C via programming switch |
Response Time |
1 ms to 250 ms, via programming switch |
Supply Voltage |
Standard: 24 VDC ± 10% Option: 80-240 VAC / 50-60Hz |
Power Consumption |
5 W |
|
Operating Temperature of Controller Unit |
-20°C to +55°C |
Output no.1 |
Cradle Relay Output, SPNO, 240VAC, 8A with 20 ms response time. |
Output no.2 |
Reed Relay Output, SPNO, 240VAC, 0.5A with 2 ms response time. |
Output no.3 and 4 |
PNP and NPN Transistor Outputs, N.O., 500 mA, 45 VDC, 2A peak (requires 24VDC supply) |
