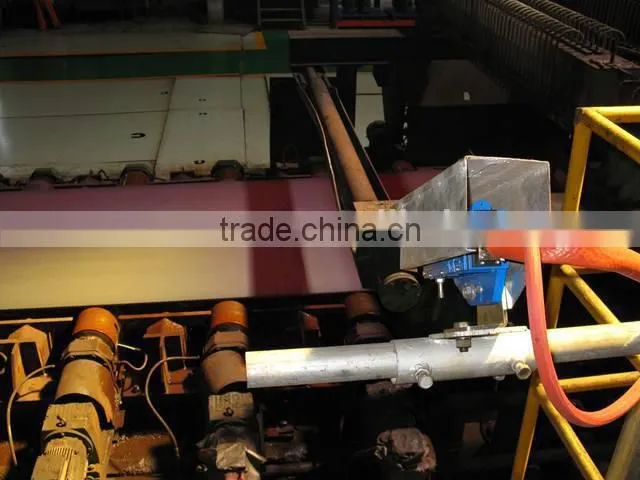

Hot Metal Detect Instrument for Tracking Tube
Characteristic
§ Fully Digital "All-in-One" Design
§ LED Bar Display of % IR Input Signal
§ Programmable from 270°C Trip Level
§ Operates 24 VDC Supply
§ Remote Lens Option: 1°or 7° FOV., other angles as option
§ Programmable Response Times from 1ms to 250ms
§ Control Relay, option: Fast Reed Relay Outputs
§ PNP Transistor Outputs, option: NPN
§ Remote Self-Test Facility
§ Integrated Air Purge
General Description
The MSE-FMD95 fully digital “All-in-One” Hot Metal Detector incorporates a bar display showing the IR input signal relative to the pre-set trip level as well as selected programmable thresholds and response times via simple external programming switch action. Operates via highly sensitive and stable InGaAs Photodiode, detection is assured even in the presence of high concentrations of water and steam.
The remote lenses incorporate filters to minimize sensitivity to extraneous light. For general tracking, spot lenses are commonly used. Where high accuracy is required or the product deviates about the center line (i.e. Rod Mill) a 1° precision lens (option) should be utilized. This lens is also highly suited to Strip Mills.
Lens F.O.V. |
Standard: Spot 1° or 7° |
Power Indication |
Blue LED |
% I. R. Signal |
Red / Green / Red LEDs |
Min I.R. Threshold Settings |
Down to 270°C via programming switch |
Supply Voltage |
Standard: 24 VDC ± 10% Option: 80-240 VAC / 50-60Hz |
Power Consumption |
5 W |
|
Operating Temperature of Controller Unit |
-20°C to +55°C |
Output no.1 |
Cradle Relay Output, SPNO, 240VAC, 8A with 20 ms response time. |
Output no.2 |
Reed Relay Output, SPNO, 240VAC, 0.5A with 2 ms response time. |
Output no.3 and 4 |
PNP and NPN Transistor Outputs, N.O., 500 mA, 45 VDC, 2A peak (requires 24VDC supply) |
