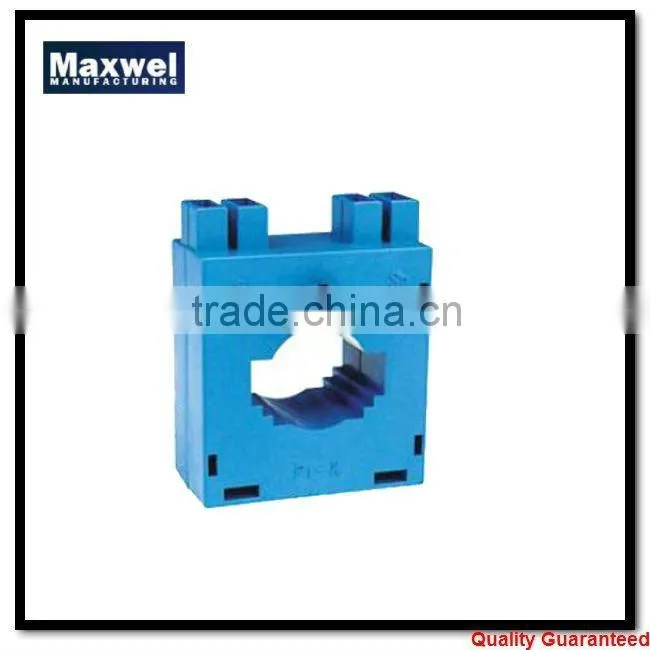

Busbar Electronic Current Transformer
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MAXWEL
Model Number:
DX-30
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
MAXWEL
Model Number
DX-30
Usage
Current
Phase
Three
Coil Structure
Toroidal
Coil Number
Autotransformer
DX busbar electric current transformer series:
Model DX-20,DX-30,DX-40 are available for connecting with cable, and also available for connecting with bus bar
MES tecnicial specifications:
- Primary current: 50A-150A
- Secondary current: 5A/1A
- Standard approval: IEC44-1/BS7626/VDE0414
- Maximum voltage: 0.66kv
- Frequency: 50/60hz
- Class: 0.5/1.0
- Short-time thermal current: ith=60*Ih
- Mounting methods: either by din rail (35mm) or by screws

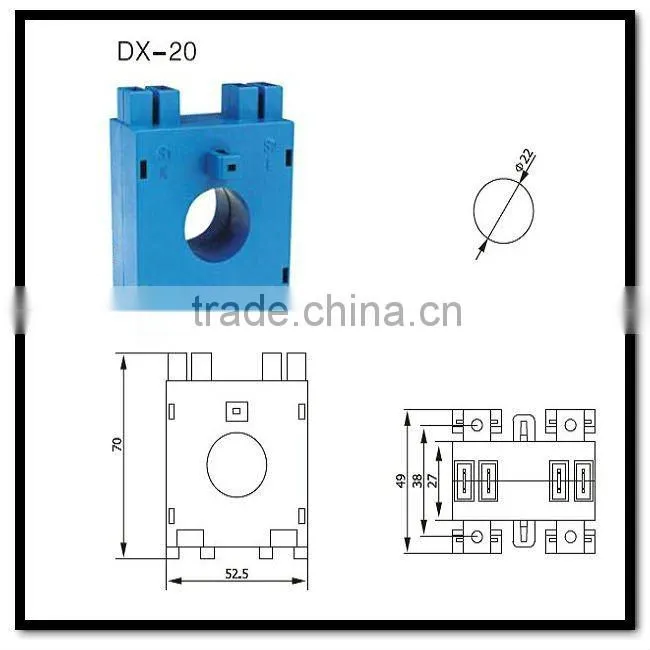

- Window dimensions: diameter 22mm (DX-20, DX-20L)
- 31*10MM (DX-30, DX30L)
- 41*10MM (DX-40)
Model |
Nominal current ratio |
Burden VA |
|
Class 0.5 |
Class 1 |
||
DX-30 |
100/5 |
1.5 |
2.5 |
| DX-30 | 150/5 |
1.5 |
2.5 |
| DX-30 | 200/5 |
2.5 |
3.75 |
| DX-30 | 250/5 |
2.5 |
3.75 |
| DX-30 | 300/5 |
2.5 |
3.75 |
| DX-30 | 400/5 |
2.5 |
3.75 |
| DX-30 | 500/5 |
2.5 |
3.75 |
