Two Types of Transformer

Two Types of Transformer thumbnail-1
Two Types of Transformer photo-1
Negotiable MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MAXWEL
Model Number:
DX-40
Contact Supplier Request Quote Chat Now
Yueqing Maxwel Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name MAXWEL
Model Number DX-40
Usage Current
Phase Three
Coil Structure Toroidal
Coil Number Autotransformer

Specifications

Primary current 150A-1000A
Secondary current 5A
Class 1.0/0.5
-10 degree to 50 degree
Quality warranty

 DX current transformer series:



Model DX-20,DX-30,DX-40 are available for connecting with cable, and also available for connecting with bus bar







MES tecnicial specifications:



  • Primary current: 50A-150A
  • Secondary current: 5A/1A
  • Standard approval: IEC44-1/BS7626/VDE0414
  • Maximum voltage: 0.66kv
  • Frequency: 50/60hz
  • Class: 0.5/1.0
  • Short-time thermal current: ith=60*Ih
  • Mounting methods: either by din rail (35mm) or by screws

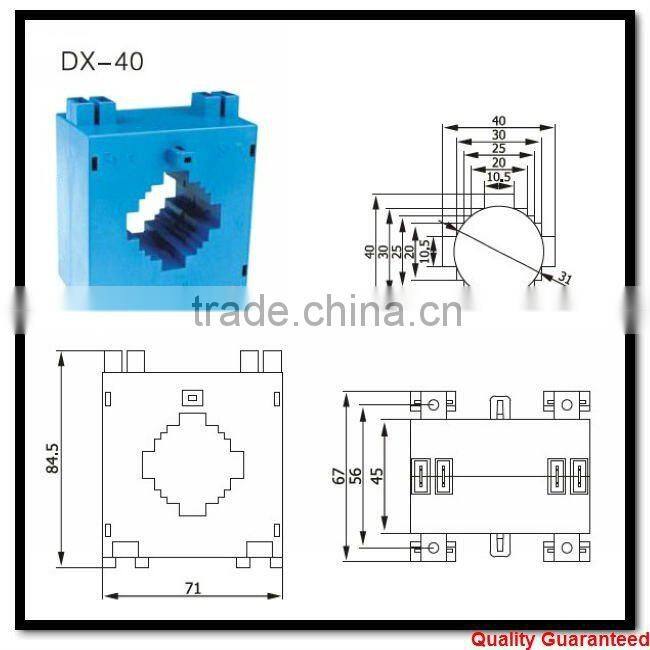

  • Window dimensions: diameter 22mm (DX-20, DX-20L)
  •                                         31*10MM (DX-30, DX30L)
  •                                          41*10MM (DX-40)



Model

Nominal current ratio

Burden VA


Class 0.5

Class 1

DX-40

150/5

1.5

2.5
DX-40

200/5

2.5

3.75
DX-40

250/5

3.75

5
DX-40

300/5

5

7.5
DX-40

400/5

5

7.5
DX-40

500/5

5

7.5
DX-40

600/5

5

7.5
DX-40

800/5

 5

7.5
DX-40

 1000/5

 5

7.5

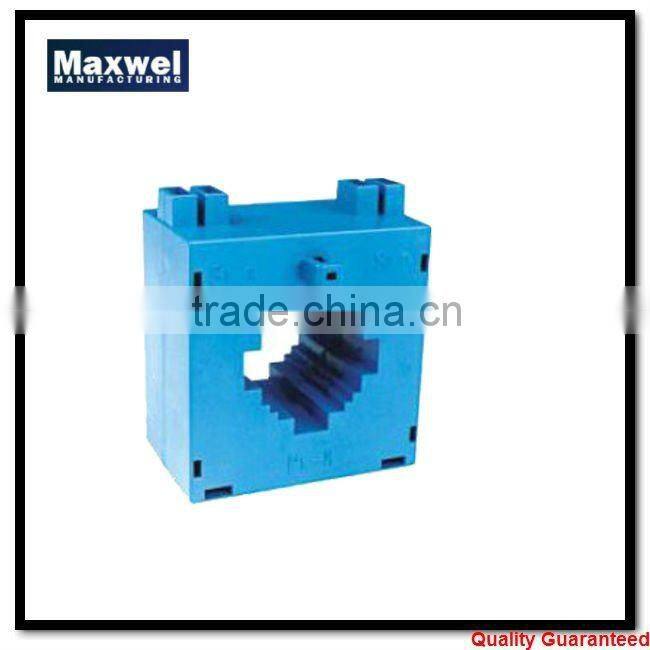

two types of transformer

two types of transformer
