Home > Products > Current transformers > Zero Sequence Current Transformer

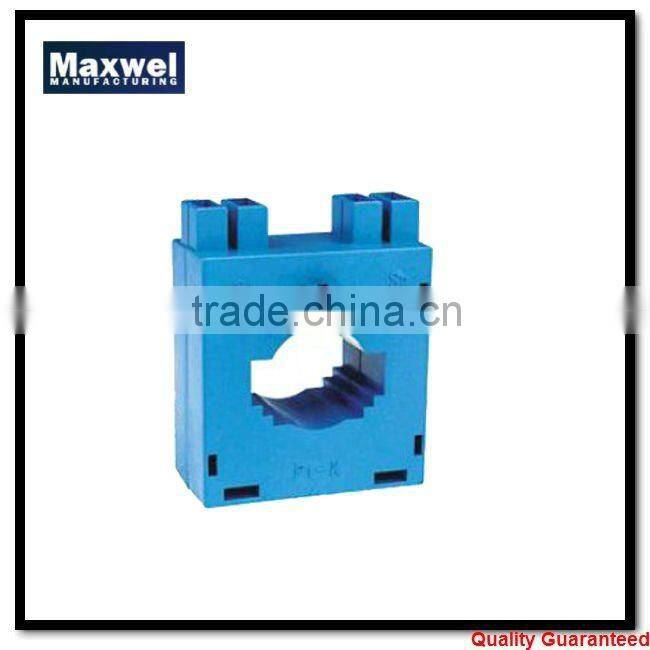

Zero Sequence Current Transformer
Negotiable
/ Unit
100 Units(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MAXWEL | |
| Model Number | DX-30 | Usage | Current | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Specifications
Primary current 100A-500ASecondary current 5A
Class 1.0/0.5
-10 degree to 50 degree
Quality warranty
DX current transformer series:
Model DX-20,DX-30,DX-40 are available for connecting with cable, and also available for connecting with bus bar
MES tecnicial specifications:
- Primary current: 50A-150A
- Secondary current: 5A/1A
- Standard approval: IEC44-1/BS7626/VDE0414
- Maximum voltage: 0.66kv
- Frequency: 50/60hz
- Class: 0.5/1.0
- Short-time thermal current: ith=60*Ih
- Mounting methods: either by din rail (35mm) or by screws

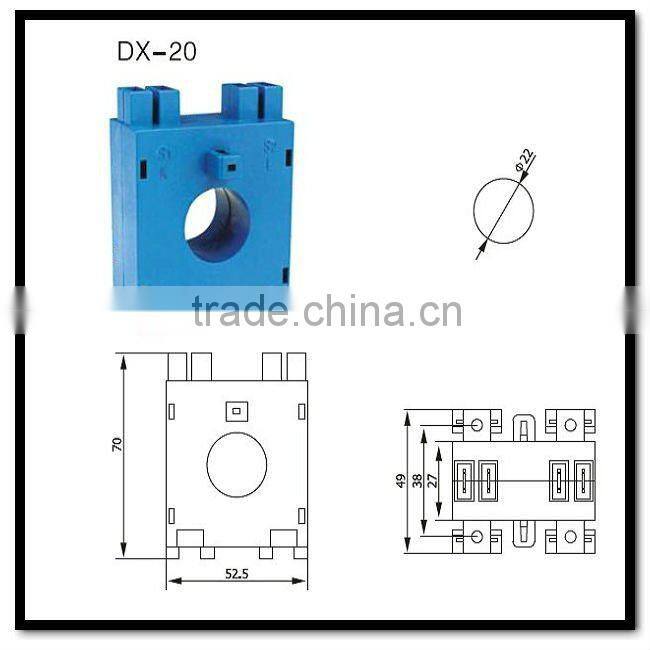

- Window dimensions: diameter 22mm (DX-20, DX-20L)
- 31*10MM (DX-30, DX30L)
- 41*10MM (DX-40)
Model | Nominal current ratio | Burden VA | |
Class 0.5 | Class 1 | ||
DX-30 | 100/5 | 1.5 | 2.5 |
| DX-30 | 150/5 | 1.5 | 2.5 |
| DX-30 | 200/5 | 2.5 | 3.75 |
| DX-30 | 250/5 | 2.5 | 3.75 |
| DX-30 | 300/5 | 2.5 | 3.75 |
| DX-30 | 400/5 | 2.5 | 3.75 |
| DX-30 | 500/5 | 2.5 | 3.75 |
