3 years warranty IP65 line light tri-proof led outdoor wall light
High power universal led fixture will be the best choice of the residential and commercial lighting, which advantages are:
- Newest design combined the Modern art and advanced LED lighting technology together
- Magic and soft lighting effect,because of the beautiful mosaic pattern on the light-guide plate
- High luminous flux 120LM/W
- Long lifespan >50,000 Hours
- Internal driver, High PF>0.9
- High CRI, Ra>80
- High thermal conductivity aluminum design, excellent heat dissipation
- Easy installation, saving cost
1. Product overview of outdoor led fixture
Our universal led fixture is a kind of top grade lighting products which is composed by a number of high-brightness LEDs. Unique structure, side view emitting, high transmittance light guide plate, illumination uniformity and soft light can relieve eye fatigue. No radiation, it does not irritate the pregnant women, elderly and children's skin.
The lamp design is simple and beautiful, luxurious atmosphere, both good lighting effects, but also brings a feeling of beauty. It is a new, high-end stylish interior & exterior lighting.
2. Main information of outdoor led fixture
- Universal application,for both indoor and outdoor use.
- High Lumen/Power,up to 4500lumen/45w/m.
- IP65,waterproof,dust proof,anti-corrosive,anti-theft, patent product.
- Perfect Interconnection: gapless interconnection/cable interconnection.
- Each line can be driven max interconnection quantity is 40pcs.
- Completely comply with VDE and UL standards.
- A variety of installations: screwing, flush mounting, suspension.
- Dimming: (0-10V) dimming /4 steps dimming available.
- Great heat dissipation.
- Adopt super bright OSRAM5630 LEDs or LG5630 LEDs, high luminous efficiency.
- Environment friendly & energy saving.
- Integrated internal LED driver, high efficiency, long life.
-

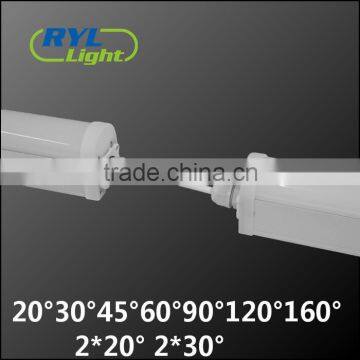

Wide beam angle & normal beam angel
3. Specification of outdoor led fixture
LED Type |
Type No. |
Beam angle |
CCT |
Length |
Power |
LED Qty |
Lumen |
|
Standard:95-100lm/w (5000K Striped-frosted cover) | ||||||||
|
Samsung 5630 |
062-222/227 |
120°/160° |
3000K 4000K 5000K 6000K |
1200mm |
36w |
81pcs |
3600lm |
|
062-224/228 |
1500mm |
45w |
108pcs |
4500lm |
||||
062-203/206 |
1500mm |
65w |
162pcs |
6500lm |
||||
Premium:115-120lm/w (5000K Striped-frosted cover) | ||||||||
|
Samsung 5630 |
062-223/209 |
120°/160° |
3000K 4000K 5000K 6000K |
1200mm |
36w |
162pcs |
4350lm |
|
062-229/230 |
1500mm |
45w |
216pcs |
5400lm |
||||
062-204/205 |
1500mm |
65w |
324pcs |
7800lm |
||||
Standard:80-85lm/w (5000K Striped-frosted cover) | ||||||||
|
Epistar 2835 |
062-213/215 |
120°/160° |
3000K
4000K
5000K
6000K
|
1200mm |
36w |
162pcs |
3060lm |
|
062-217/218 |
1500mm |
45w |
216pcs |
3825lm |
||||
062-219/220 |
1500mm |
65w |
297pcs |
5525lm |
||||
Premium:105-110lm/w (5000K Striped-frosted cover) | ||||||||
|
Epistar
2835
|
062-214/216 |
120°/160° |
3000K
4000K
5000K
6000K
|
1200mm |
36w |
351pcs |
3960lm |
|
062-211/212 |
1500mm |
45w |
432pcs |
4950lm |
||||
062-210/211 |
1500mm |
65w |
621pcs |
7150lm | ||||
4. Wiring method of outdoor led fixture
High quality comes from do every detail well, the following is the product details for your better reference
5. Installation method of outdoor led fixture
6. outdoor led fixture packing
The packing of universal led fixture using yellow kraft paper box, each piece packing adopts an independent small box and 5 boxes in one outer carton, the shipping more secure and convenient.
| Length | N.W./Light(kgs) | Pcs/ctn | G.W./ctn(kgs) | Meas.(mm) |
| 600mm | 1.00 | 40 | 48 | 1440*460*275 |
| 1200mm | 1.48 | 20 | 38 | 1440*460*275 |
| 1500mm | 2.28 | 20 | 58 | 1740*460*275 |
Remark: The Gross weight is for lights only, not including the weight of accessories.
7. application of outdoor led fixture

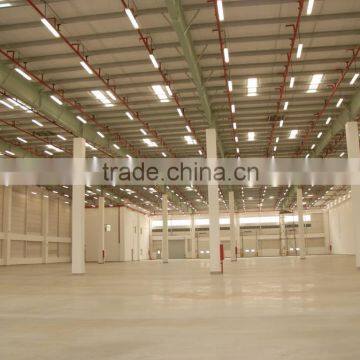

Widely applied in commercial, public and household lighting fields, such as parking areas, streets, tunnels, yards, schools, hotels, meeting rooms, offices, hospitals, factories, shopping malls, supermarkets, kitchens and so on.
Supermarket application
swimming pool application
8. Company profile
- 7 years' manufacturing experience in LED lighting field
- Aquarium light, IP65 linear light, T8 Tube, shelf light, panel light, hibay light, cabinet light etc.
- Main markets: Our products have been exported to America, Germany, Britain, France, Australia, Netherlands, Canada and so on, and have gained much reputation among customers.
We have 50 engineers with extensive knowledge of LED and rich experience in electronics, structure and optics.
They can design LED products accurately and promptly according to customers' unique ideas and demands
9. Our services:
Before sale service
- Your inquiry will be promptly replied within 24 hours
- Well-trained and experienced staffs will answer your questions in fluent English
- OEM&ODM welcomed
- Free design according to customer's demand
After sale service
- We promise 50000H 3 years warranty for our LED products.
- Any defective products within warranty will get maintenance or replacement unconditionally
- Protection of your sales area,ideas of design and all your private information
We concentrate on LED lights research and development. Warmly welcome customers at home and abroad to visit us or contact with us for more details !
