IP66 1200mm Exterior light fixtures waterproof led light outdoor wall mounted led light
Product information
- Universal application,for both indoor and outdoor use.
- High Lumen/Power,up to 4500lumen/45w/m.
- IP65,waterproof,dust proof,anti-corrosive,anti-theft, patent product.

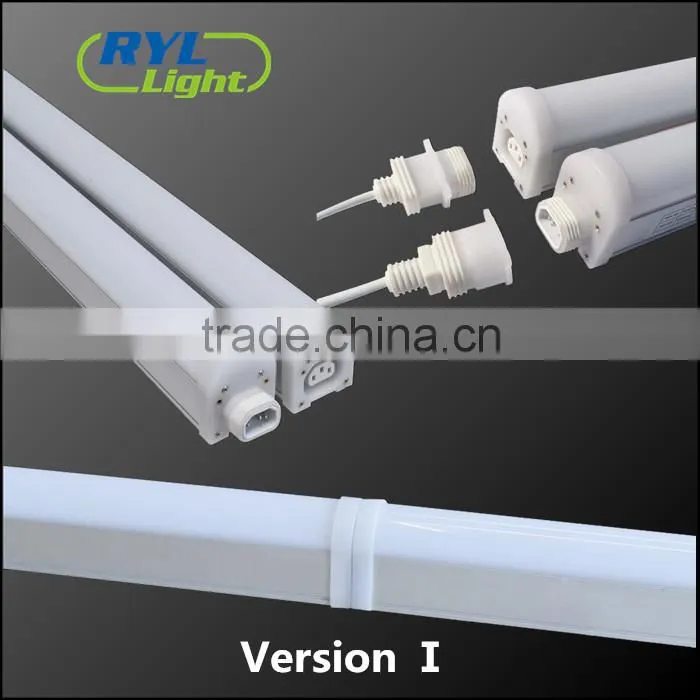

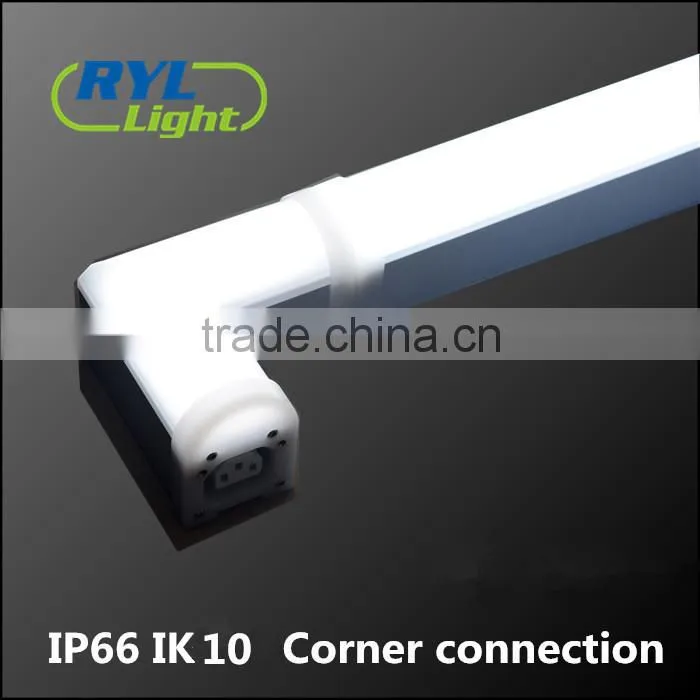

- Perfect Interconnection: gapless interconnection/cable interconnection.
- Each line can be driven max interconnection quantity is 40pcs.
- Completely comply with VDE and UL standards.
- A variety of installations: screwing, flush mounting, suspension.
- Dimming: (0-10V) dimming /4 steps dimming available.
- Great heat dissipation.
- Adopt super bright OSRAM5630 LEDs or LG5630 LEDs, high luminous efficiency.
- Environment friendly & energy saving.
- Integrated internal LED driver, high efficiency, long life.
-
Wide beam angle & normal beam angel
Specification of LED exterior light fixtures
LED Type |
Type No. |
Beam angle |
CCT |
Length |
Power |
LED Qty |
Lumen |
|
Standard:95-100lm/w (5000K Striped-frosted cover) | ||||||||
|
Samsung 5630 |
062-222/227 |
120°/160° |
3000K 4000K 5000K 6000K |
1200mm |
36w |
81pcs |
3600lm |
|
062-224/228 |
1500mm |
45w |
108pcs |
4500lm |
||||
062-203/206 |
1500mm |
65w |
162pcs |
6500lm |
||||
Premium:115-120lm/w (5000K Striped-frosted cover) | ||||||||
|
Samsung 5630 |
062-223/209 |
120°/160° |
3000K 4000K 5000K 6000K |
1200mm |
36w |
162pcs |
4350lm |
|
062-229/230 |
1500mm |
45w |
216pcs |
5400lm |
||||
062-204/205 |
1500mm |
65w |
324pcs |
7800lm |
||||
Standard:80-85lm/w (5000K Striped-frosted cover) | ||||||||
|
Epistar 2835 |
062-213/215 |
120°/160° |
3000K
4000K
5000K
6000K
|
1200mm |
36w |
162pcs |
3060lm |
|
062-217/218 |
1500mm |
45w |
216pcs |
3825lm |
||||
062-219/220 |
1500mm |
65w |
297pcs |
5525lm |
||||
Premium:105-110lm/w (5000K Striped-frosted cover) | ||||||||
|
Epistar
2835
|
062-214/216 |
120°/160° |
3000K
4000K
5000K
6000K
|
1200mm |
36w |
351pcs |
3960lm |
|
062-211/212 |
1500mm |
45w |
432pcs |
4950lm |
||||
062-210/211 |
1500mm |
65w |
621pcs |
7150lm | ||||
Wiring method of LED Exterior light fixtures
High quality comes from do every detail well, the following is the product details for your better reference
LED exterior light fixtures packing
The packing of universal led fixture using yellow kraft paper box, each piece packing adopts an independent small box and 5 boxes in one outer carton, the shipping more secure and convenient.
| Length | N.W./Light(kgs) | Pcs/ctn | G.W./ctn(kgs) | Meas.(mm) |
| 600mm | 1.00 | 40 | 48 | 1440*460*275 |
| 1200mm | 1.48 | 20 | 38 | 1440*460*275 |
| 1500mm | 2.28 | 20 | 58 | 1740*460*275 |
Remark: The Gross weight is for lights only, not including the weight of accessories.

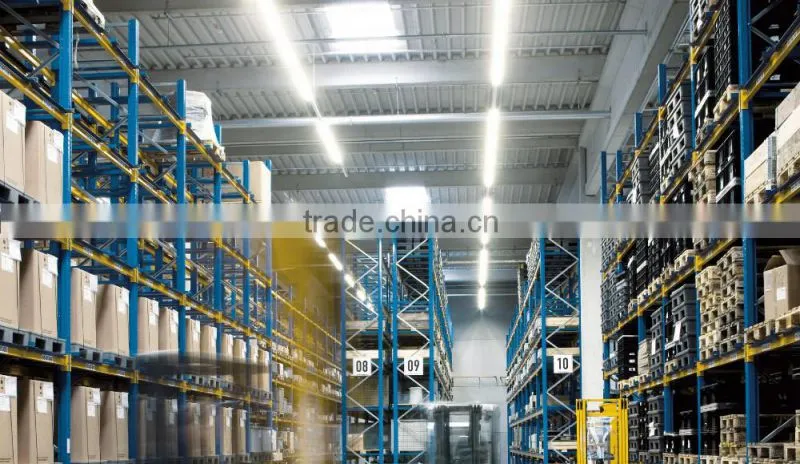

LED exterior light fixtures application
For warehouse lighting fixtures, which is widely applied in commercial, public and household lighting fields, such as parking areas, streets, tunnels, yards, schools, hotels, meeting rooms, offices, hospitals, factories, shopping malls, supermarkets, kitchens and so on.
Company profile
- 7 years' manufacturing experience in LED lighting field
- Aquarium light, IP65 linear light, T8 Tube, shelf light, panel light, hibay light, cabinet light etc.
- Certification:VDE, UL, CE, RoHS, ETL, TUV, ISO9001-2008 system
- Main markets: Our products have been exported to America, Germany, Britain, France, Australia, Netherlands, Canada and so on, and have gained much reputation among customers.
We have 50 engineers with extensive knowledge of LED and rich experience in electronics, structure and optics.
They can design LED products accurately and promptly according to customers' unique ideas and demands
Our services:
Before sale service
- Your inquiry will be promptly replied within 24 hours
- Well-trained and experienced staffs will answer your questions in fluent English
- OEM&ODM welcomed
- Free design according to customer's demand
After sale service
- We promise 50000H 3 years warranty for our LED products.
- Any defective products within warranty will get maintenance or replacement unconditionally
- Protection of your sales area,ideas of design and all your private information
We concentrate on LED lights research and development. Warmly welcome customers at home and abroad to visit us or contact with us for more details !
