Specifications
1) Intergrative design, compact structure.
2) Same configuration and good quality, COMPETITIVE price.
3) One year warranty, engineers available to service machinery overseas.

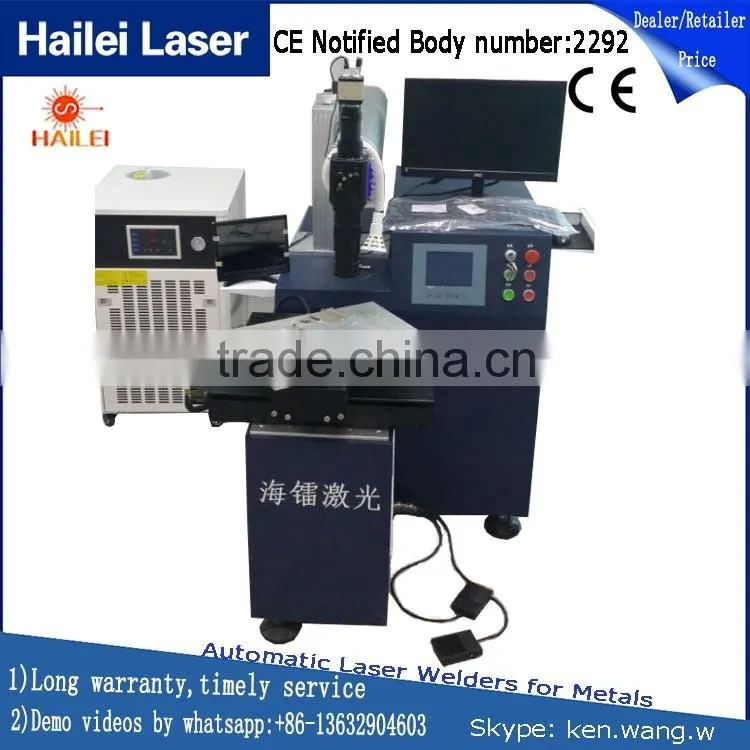

Automatic laser welding machine laser welder
INTRODUCTION:
Hl-W200,HL-400W automatic laser welder adopts manual programming automatic dual-purpose worktable, electric focusing, 16 group precise waveform control; suitable for mold repair, and welding all kinds of electronic products; the main advantages as follows:
(1) Electric regulate the lever of laser focus: it is convenient to regulate lever of laser rapidly through the manual button on the panel, which makes the laser focusing become simple and fast.
(2) Positioning function of welding spot: it through the red light direction to find the rough place of welding spot on the work piece, aiming at the location of welding spot accurately by using binocular high-magnification microscope observation.
(3) Electric regulating multiple size of scattering mirror (regulating the facula size).
(4)Manual control the movement of XY mobile worktable, optional automatic welding function of electric control at the same time, which can realize automatic welding of products in high speed.
(5) Integrative design, small size, compact structure, so it's convenient and practical.
WORKING PRINCIPLE:
Heat created by highly concentrated and focused laser will melt the welding wires instantly together with the broken part on the mould. The welded part can be smoothened by electric sparking or grinding. Trachoma, crack, broken corner or edge can be quickly and nicely repaired.
Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track.
Wide range of adjustments of the laser output parameters allows to process metal parts made of steel, stainless steel, non-ferrous metals and alloys. Dimensions of the parts can be varied from very small (e. G. Wires) to rather big (300x 200x100 mm) and up to 100 KG weight and more.
Technology Parameter:
| Model | HL-Z-200W | HL-Z-400W |
| Maxiumn laser power(W) | 200 | 400 |
| Laser wavelength(nm) | 1064 | 1064 |
| Single pulse energy(J) | 90 | 150 |
| Welding frequency(HZ) | 1-50,1-100 | 1-50,1-100,1-500 |
| Welding depth(mm) | 0.1-2.5 | 0.1-3.5 |
| Pulse width(ms) | 0.5-20 | 0.5-20 |
| Spot size(mm) | 0.2-2 | 0.2-2 |
| Power required | single-phase 220v/50Hz | three-phase 380V50Hz |
| Rated power(KW) | 4 | 6.5 |
| Control System Control System | PLC/IPC | PLC/IPC |
| Positioning System | Red light indicator/CCD | Red light indicator/CCD |
| Workbench(mm) | 300*200*200(customize) | 300*200*200(customize) |
(1)Thin Metal Sheets, Titanium, kettle, vacuum cup, stainless steel bowl, Jewelry, door handle, mould.
(2)Stainless steel products, golf head, zinc alloy artworks.
(3)Aluminum alloy, laptop shell, mobile phone battery, electric apparatus fittings, filter, nozzle.
(4)Tical Fiber Coupler, Electron Gun, Capacitors, Lithium-ion batteries,sensor, tungsten wire, high power diode, tc.
MAIN MARKETS/KEY CUSTOMERS:
Titanium Industries, Battery Manufacturers, Jewelry Manufacturers, Watch Industries, Electrical Switch Industries, Optic Fiber Industries, Thin Sheets and so on.

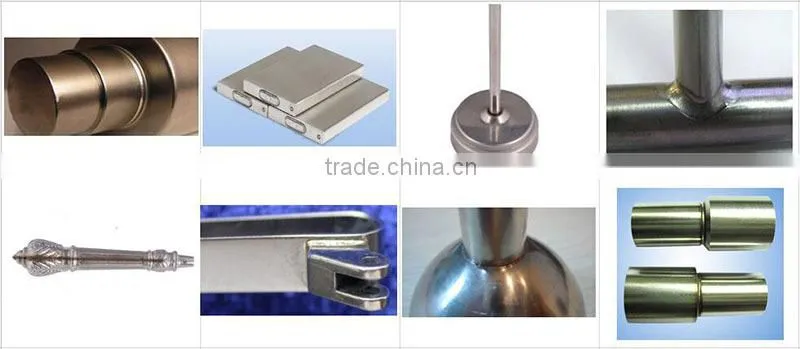

Laser welding effect
OBSERVATION SYSTEM
Installed with cross the cursor of special microscope observation system, magnification 17.5×.cross the cursor center align laser flare center . With high speed electronic filter light protection device to protect the worker's eyes, improve work efficiency.
CONTROLLING SYSTEM
Using improved the built-in single-chip machine for double closed loop control precision. its stability and operation ability is greater than similar products.
GAS PROTECTION SYSTEM
Changed to double-channel synchronous argon protection system, make the argon better , make the welding more firm and beautiful, and keep the advantages of the original--the synchronous control of laser launch, can save argon at most.
INSTALLATION CONDITIONS
220V50HZ alternating current, provide more than 30A current, voltage stability.
Environment: clean and no dust or little dust, temperature 55°F(13°C)to82°F(28°C),humidity:5%to75% no condensation.
Main consumables: xenon lamp, filter, protection lens, water, welding wire, argon, electricity.
Supporting device
Cold water machine, reinforced worktable, laser welding wire, welding wire clip.
Demo video link:
| Fiber laser marking on Metals and hard plastic | https://youtu.be/RzDAbLo7Eu0 |
| CO2 laser marking on Non-metals | https://youtu.be/iXGCkx9nnH8 |
| UV laser marking on UV oil coated surface | https://youtu.be/V5W13rkPEqY |
| Jewelry laser welding machine | https://youtu.be/5Iexi12He-I |
| Automatic laser welding machine | https://youtu.be/hEgslWxAcho |
Here is our laser machine files(including working videos, marking pictures, manual, specification) in Google drive link: /open?id=0ByOchOVUMU_yTnZlcU9zYUNlMXc , please check it, you will trust us more.
Welcome to visit our factory, show you the working process.
1.Air or Sea shipping,Cheap Price, but will take a little more time to reach you.
2.Equipment will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the universal label, shipping marks etc.
(1) Warranty and Service included:
a. Hardware: 1 year on all parts and labor;
b. Software: whole life on update for free.
c. Maintenance and technological support: whole life.
(2) Training:
a. 3--4 days free training for the whole system in Seller’s company.
b. If customer needs our technician give the training abroad, the customer need charge for the transportation and accommodation fees of engineer;
Including: how to set up the equipment;
how to debug the light route;
how to use the software and operate the equipment;
how to replace the bad material and spare parts, etc;
how to maintain the equipment;
how to estimate and settle the problem, and analysis the reason.
1.Q: How can you guarantee that I have a good sale on this product?
A: Our products are professional, high quality and competitive price. We also offer professional technology and after-sale service.
2. Q: How can I get the sample to check the quality?
A: If you want to mark sample to check the quality, pls kindly send us the sample for testing.
3. Q: How long can I expect to get the sample?
A: We ensure that the welding samples could be done within 1-2 days once we receive the sample from your side.
Pls let us know:
1. What kind of machine you need?
2. The information about the material you want to process.
3. What is your business scope? Are you end user or distributor?
We will be very happy to help you in any way we can. Pls don't hesitate to LEAVE MESSAGE to me.
Thanks
Ken
