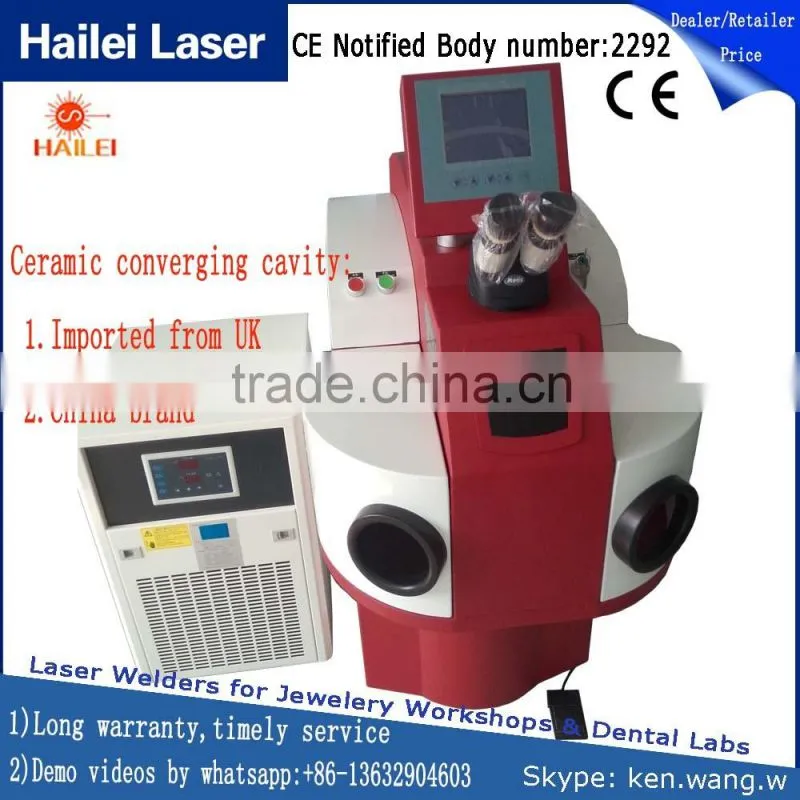

laser cnc machine 200W factory CE Spot laser jewelry welding machine laser welder

 Technology Parameter:

Introduction:

This welder is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage,it is widely used in the process of gold and silver jewelry and welding of mini and small part.

Features:
1. Ceramic converging cavity is imported from UK. Good performace of corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is: Max 5 million times.

2. Able to work for 24 hours continuously; stable performance; one year warranty;

Human-based design accords with ergonomics, avoiding fatigue after long time working.

3. Widely used in jewelry accessories, electronic components, glasses clocks and watches, hardware, precision equipment, medical equipment, auto parts, gifts and crafts, etc.

Working Principle:

Laser spot welding is to use high energy laser pulse to heat the material in a tiny zone, the energy of laser radiation spread into the internal of the material by heat conduction, after the material melted, it will form a particular pool. Laser spot welding machine can weld the same or similar material together.

OBSERVATION SYSTEM

Microscope magnification: 17.5X. + Word cursor center and the laserspot alignment (user adjustable). With high-speed electronic filter protection device to protect the operator eyes laser injury, relieve the operator eye fatigue,improve work efficiency, the installation of high-definition CCD surveillance systemsare available upon request.

INSTALLATION CONDITIONS

220V50HZ alternating current, provide more than 30A current, voltage stability.

Environment: clean and no dust or little dust, temperature 55°F(13°C)to82°F(28°C),humidity:5%to75% no condensation.

Main consumables: xenon lamp, filter, pargon.

Jewelry laser welding effect

Demo video link:

Desktop laser marking machine with rotary:   https://youtu.be/NLDa1m1ytIw

CO2 laser marking on agate:   https://youtu.be/JB6EhL0-EWc

Laser marking on phone shell:   https://youtu.be/N24o17eSqxw

UV laser marking date number:   https://youtu.be/Jlrg0lDvuaU

Jewelry laser welding effect:   https://youtu.be/BwBZHlvhU6A

Welcome to visit our factory, show you the working process.

1.Air or Sea shipping,Cheap Price, but will take a little more time to reach you.

2.Equipment will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the universal label, shipping marks etc.

(1) Warranty and Service included:
a. Hardware: 1 year on all parts and labor;
b. Software: whole life on update for free.
c. Maintenance and technological support: whole life.
(2) Training:
a. 3--4 days free training for the whole system in Seller’s company.
b. If customer needs our technician give the training abroad, the customer need charge for the transportation and accommodation fees of engineer;
Including: how to set up the equipment;
                 how to debug the light route;
                 how to use the software and operate the equipment;
                 how to replace the bad material and spare parts, etc;
                 how to maintain the equipment;
                 how to estimate and settle the problem, and analysis the reason.

1.Q: How can you guarantee that I have a good sale on this product?

A: Our products are professional, high quality and competitive price. We also offer professional technology and after-sale service.

2. Q: How can I get the sample to check the quality?

A: If you want to check the quality, pls kindly send us the sample for testing.

3. Q: How long can I expect to get the sample?

A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side
