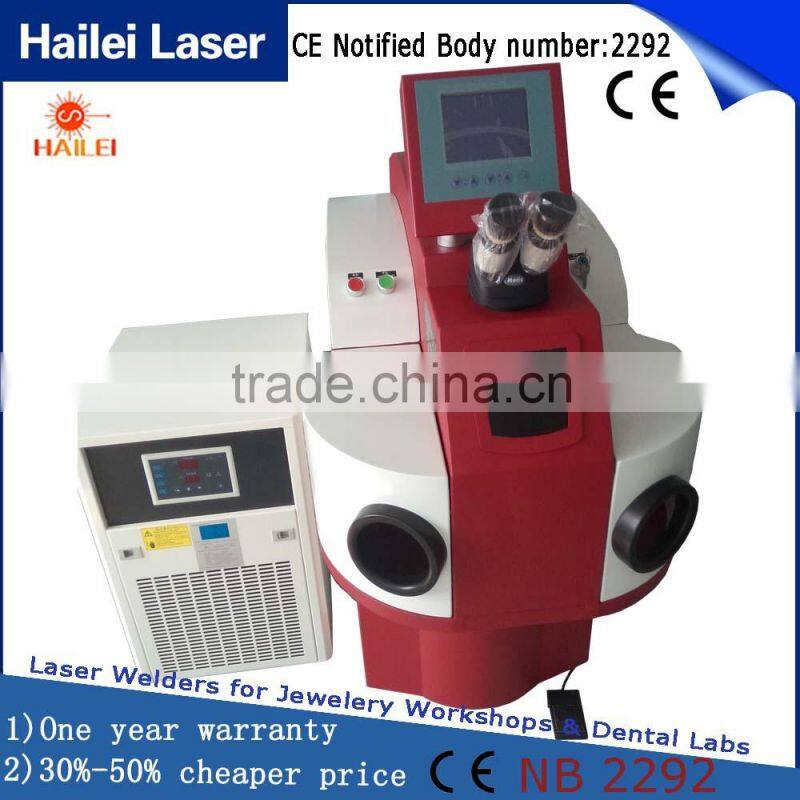

Wire Mesh Welding Machine 150W Factory CE Spot Laser Jewelry Welding Machine Laser Welder

 Technology Parameter:

skype: sales1haileilaser

INTRODUCTION:

This welder is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small part.

Features:
1. One button operation: a key switch, simplifying the device boot process to facilitate the operator to use the cumbersome process.
2. SCM control and regulation: can store 50 groups of commonly used welding parameters for easy re-use.
3. Small size and light weight: reduced working space, easy to transport and move.

WORKING PRINCIPLE:

Laser spot welding is to use high energy laser pulse to heat the material in a tiny zone, the energy of laser radiation spread into the internal of the material by heat conduction, after the material melted, it will form a particular pool. Laser spot welding machine can weld the same or different material together.

OBSERVATION SYSTEM

Microscope magnification: 17.5X. + Word cursor center and the laserspot alignment (user adjustable). With high-speed electronic filter protection device to protect the operator eyes laser injury, relieve the operator eye fatigue,improve work efficiency, the installation of high-definition CCD surveillance systemsare available upon request.

CONTROLLING SYSTEM

An exclusive miniature industrial computer that contains the full functionality of an ordinary computer, its stability and anti-interference ability isfar better than the industry products (generally manufacturers are mostly the poor performance of low-cost single-chip control panel).

INSTALLATION CONDITIONS

220V50HZ alternating current, provide more than 30A current, voltage stability.

Environment: clean and no dust or little dust, temperature 55°F(13°C)to82°F(28°C),humidity:5%to75% no condensation.

Main consumables: xenon lamp, filter, pargon.

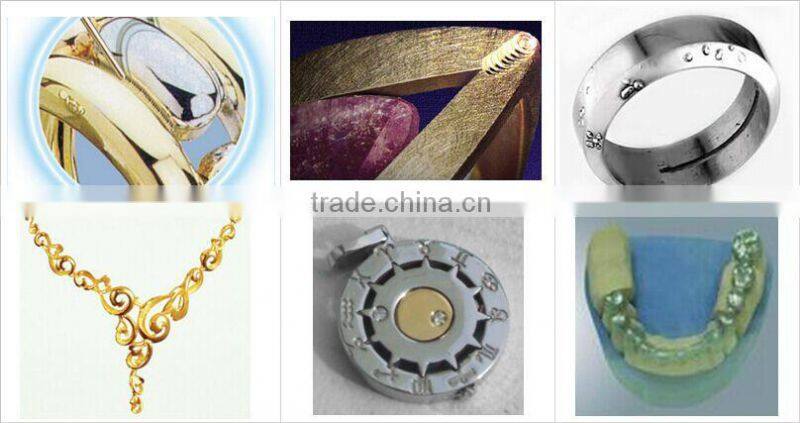

Jewelry laser welding effect

1.Air or Sea shipping,Cheap Price, but will take a little more time to reach you.

2.Equipment will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the universal label, shipping marks etc.

(1) Warranty and Service included:
a. Hardware: 1 year on all parts and labor;
b. Software: whole life on update for free.
c. Maintenance and technological support: whole life.
(2) Training:
a. 3--4 days free training for the whole system in Seller’s company.
b. If customer needs our technician give the training abroad, the customer need charge for the transportation and accommodation fees of engineer;
Including: how to set up the equipment;
                 how to debug the light route;
                 how to use the software and operate the equipment;
                 how to replace the bad material and spare parts, etc;
                 how to maintain the equipment;
                 how to estimate and settle the problem, and analysis the reason.

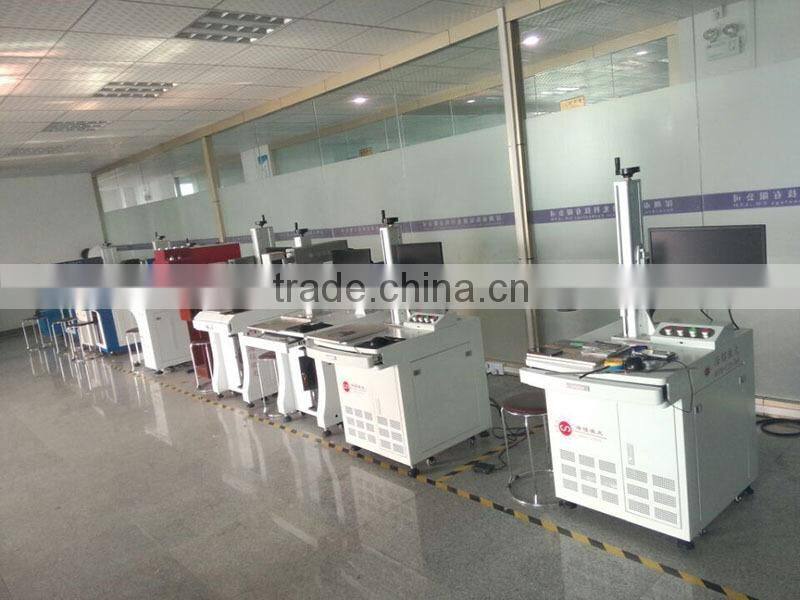

Samples show room

1.Q: How can you guarantee that I have a good sale on this product?

A: Our products are professional, high quality and competitive price. We also offer professional technology and after-sale servies.

2. Q: So many sellers promise me best price and good qulity, so what prove, how can I trust one and who can I trust?
A: You know indeed, more often the reality is: The good supplier difficultly find the good buyer, and the sincere buyer hard look for the honest seller. So I am lucky guy if you are sincerely want to buy, because I am so easy to find the good buyer! I can't promise you cheapest price in global, but I can tell you I will offer you the best price to make you always WIN customers and comsumer! So let me know your target price and what you need for so that I can recommend the appropriate type for you, and I will do my utmost to offer you a perfect order to thank your trust!
