620nm - 630nm - 660nm 1W Led Chips in Red Color

620nm - 630nm - 660nm 1W Led Chips in Red Color thumbnail-1
620nm - 630nm - 660nm 1W Led Chips in Red Color thumbnail-2
620nm - 630nm - 660nm 1W Led Chips in Red Color thumbnail-3
620nm - 630nm - 660nm 1W Led Chips in Red Color thumbnail-4
620nm - 630nm - 660nm 1W Led Chips in Red Color thumbnail-5
620nm - 630nm - 660nm 1W Led Chips in Red Color thumbnail-6
620nm - 630nm - 660nm 1W Led Chips in Red Color photo-1
620nm - 630nm - 660nm 1W Led Chips in Red Color photo-2
620nm - 630nm - 660nm 1W Led Chips in Red Color photo-3
620nm - 630nm - 660nm 1W Led Chips in Red Color photo-4
620nm - 630nm - 660nm 1W Led Chips in Red Color photo-5
620nm - 630nm - 660nm 1W Led Chips in Red Color photo-6
US$ 0.2 - 0.35 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-P001L4
Chip Material:
InGaN
Emitting Color:
Other, Warm/pure/cool white
Contact Supplier Request Quote Chat Now
Wuxi TDS Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TDS-P001L4
Chip Material InGaN
Emitting Color Other, Warm/pure/cool white
Luminous Intensity 180lm/w
Luminous Flux(lm) 160-180lm
Optical Attenuation(%) 0.0001
Power 1W
Power Dissipation 0.001
Color Rendering Index(Ra) 80
Color Temperature 2000-15000k
Operating Temperature(℃) -30, 80
Storage Temperature(℃) -30, 120
Place of Origin Jiangsu, China
Brand Name TDS
Certification CE
Product Description

 620nm - 630nm - 660nm 1W led chips in red color

Name Model color Angle(°) wave length/Color   (IF=350mA) Luminous flux  (IF=350mA) forward voltage  (IF=350mA)
min max MIN MAX min max
      1W LED  TDS-P001L4N03 RED 90/120/140 625nm 630nm 30 40 1.9 2.4
TDS-P001L4N04 RED 625nm 630nm 40 50 1.9 2.4
TDS-P001L4N05 RED 650 660nm 10 20 1.9 2.4
TDS-P001L4K03 YELLOW 590nm 595nm 40 50 1.9 2.4
TDS-P001L4J03 AMBER 585nm 590nm 40 50 1.9 2.4
TDS-P001L4D02 BLUE 455nm 460nm 15 20 3 3.4
TDS-P001L4D03 BLUE 440nm 445nm 15 20 3 3.4
TDS-P001L4F05 GREEN 520nm 525nm 60 70 3 3.4
TDS-P001L4G05 GREEN 525nm 530nm 70 80 3 3.4
TDS-P001L4U13 WHITE 4000K  9000K   80 90 3 3.4
TDS-P001L4Z10 WHITE 6000K 7000K 90 100 3 3.4
TDS-P001L4Z11 WHITE 7000K 9000K 90 100 3 3.4
TDS-P001L4U11 W WHITE 2500K 3800K 100 110 3 3.4
TDS-P001L4U14 WHITE 5000K 6000K 100 110 3 3.4
TDS-P001L4W1 WHITE 6000K 7000K 100 110 3 3.4
TDS-P001L4U15 WHITE 7000K 9000K 100 110 3 3.4
TDS-P001L4U16 WHITE 5000 6000 110 120 3 3.4
TDS-P001L4U17 WHITE 5000 6000 120 130 3 3.4
TDS-P001L4U19 White 2000 9000 140 150 3 3.4
TDS-P001L4U20 White   2000 9000 160 180 3 3.4
TDS-P001LUV03 UV  390-400NM / 400-410NM / 410-420NM / 430-440NM
TDS-P001LUV02 IR 365NM
TDS-P001LIR05 IR 730NM  770NM
TDS-P001LIR06 IR 810NM  850NM  940NM



Remarks:  All Led is fit for 190 degree Reflow Soldering. If you need the led for 260 degree reflow                       soldering ,please point out to us. We will select the silicon lens for your LED.



PCB: We can solder the Led onto the PCB as your requirement. We can also solder your OEM PCB             free of charges

Warranty:  All Led with 5 years warranty. If any led is out of work in 5 years, we will replace them by                     new led through our International DHL Account

USER CAUTION:

* IFP Conditions: Pulse Width≤10msec duty≤1/10

* All high power emitter LED products mounted on aluminum metal-core printed circuit board, can be lighted

directly, but we do not recommend lighting the high power products for more than 5 seconds without a

appropriate heat dissipation equipment.

* Re-flow,wave peak and soak-stannum soldering etc.is not suitable for this products.

* Suggest to solder it by professional high power LED soldering machine.can’t solder it by reflow soldering

machine.

* Can use invariable-temperature searing-iron with soldering condition:≤260 degree less than 3 seconds.



We can also help our client to solder the high power led onto the mcpcb / aluminum pcb.

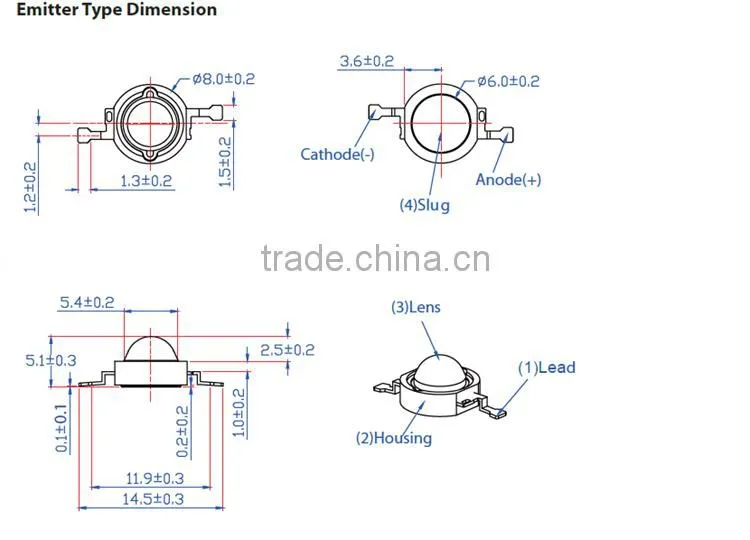

LED Dimension

 620nm - 630nm - 660nm 1W led chips in red color

Our Services

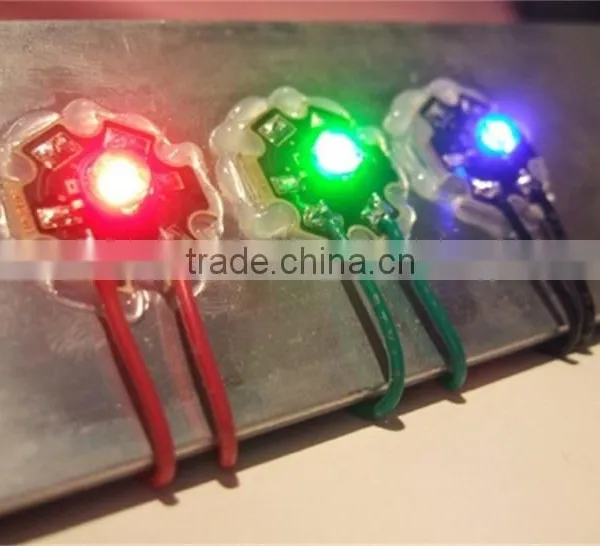

 We can help clients to solder the LED onto the MPCB / Heatsink Board. We offer the PCB design and testing support too.620nm - 630nm - 660nm 1W led chips in red color

Company Information

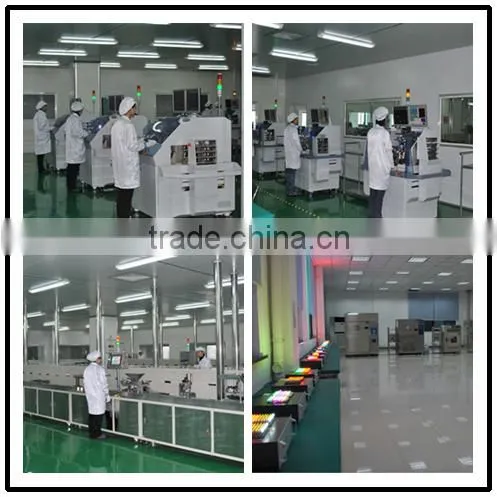

 620nm - 630nm - 660nm 1W led chips in red color

FAQ



1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.



2. What will be the delivery time ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes



3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.



4. Could you please send me the sample ? Then i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.



5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.



6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals



7.payment:



T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque



If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
