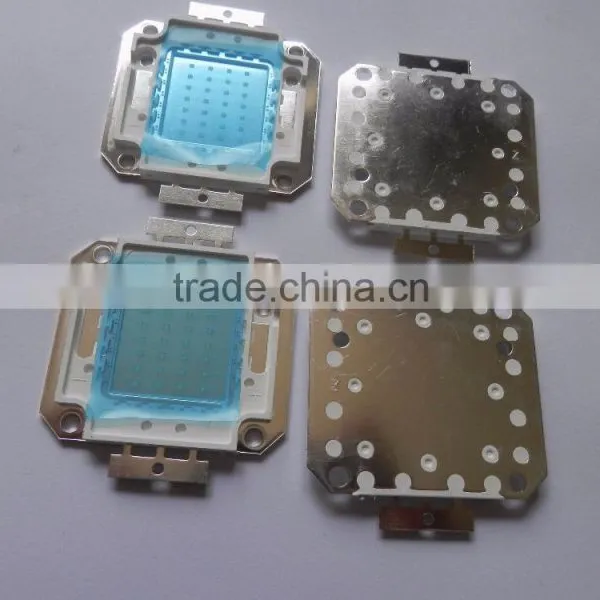

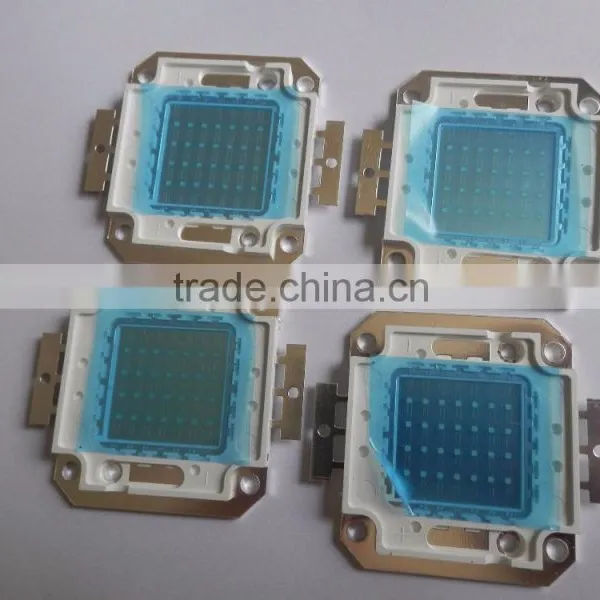

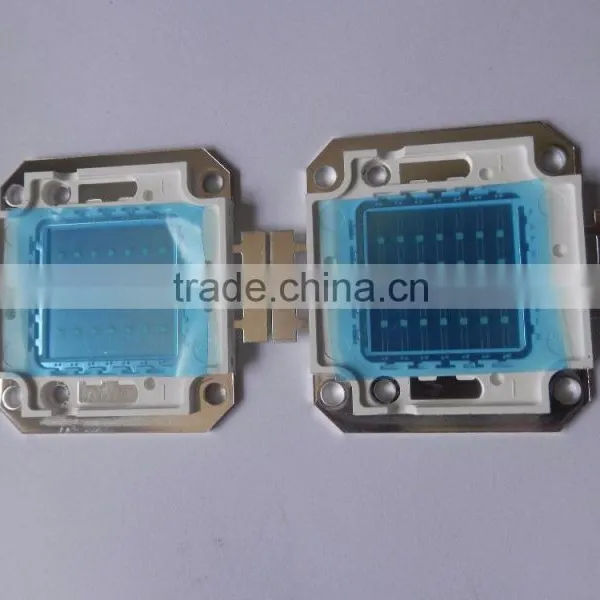

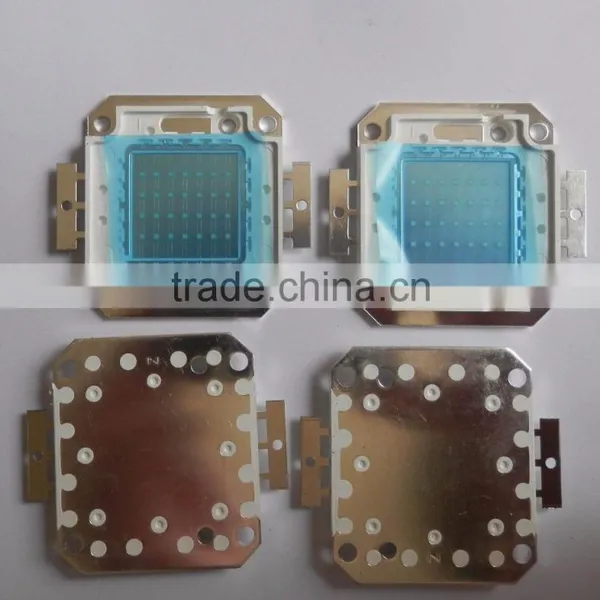

12V 30W Green Projector Power Led chip for fishing light
- 50000 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
-
Quality White Car Headlights LED Chips SMD High Bright 10W 3570 Led Chip 1000-1200LM 6000-7000K SMD Led For Auto Lighting
-
6070 seven-in-one high-power multi color 50W outdoor lighting wall washer beam light dye light LED chips
-
12W RGBWPY LED 6 in 1 LED diode, high brightness
-
3535 High Power LED
-
5050 4in1 High Power LED
-
High Power LED
Product Details
| Model Number: | TDS-P030LA Series | Chip Material: | InGaN | Emitting Color: | Other, Day White / Natural White/Cool white |
| Luminous Intensity: | 110lm/w or 150lm/w | Luminous Flux(lm): | 4500lm | Optical Attenuation(%): | 0.0001 |
| Power: | Other, 30W | Power Dissipation: | 0.005 | Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2000-25000K | Operating Temperature(℃): | -30, 80 | Storage Temperature(℃): | -30, 120 |
| Place of Origin: | Jiangsu, China | Brand Name: | TDS | Certification: | CE |
Product Description
Attention: Warm White 3500-3800K Day / Natural White 6000-6200K / Cool white: >7000K
The Led Size has different Type. If you have request in its size, please contact our salesman.we will give you alternative Led Shape for your Selection.
Remark: There are 3 different of dimension for 30W LED Like Following:
Name | Model | Color | Angle(°) | wave length/Color (IF=2.45A) | Luminous flux (IF=2.45A) | forward voltage (IF=2.45A) | ||||
MIN | MAX | LM-1 | LM-2 | MIN | MAX | |||||
30W LED | TDS-P030LRC11 | RED | 160 | 620nm | 625nm | 500 | 600 | 12 | 13 | |
TDS-P030LAD18 | BLUE | 160 | 460nm | 465nm | 400 | 550 | 12 | 13 | ||
TDS-P030LAF25 | GREEN | 160 | 520nm | 525nm | 3000 | 3100 | 12 | 13 | ||
TDS-P030LAO27 | WHITE | 160 | 2000K | 3000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030LAQ27 | WHITE | 160 | 3000K | 4000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030LAS27 | WHITE | 160 | 4000K | 5000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030LAU27 | WHITE | 160 | 5000K | 6000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030LAW27 | WHITE | 160 | 6000K | 7000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030LAY27 | WHITE | 160 | 7000K | 8000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030LAZ27 | WHITE | 160 | 8000K | 9000K | 3000 | 4500 | 12 | 13 | ||
TDS-P030L4RGB | RGB | 160±5 | R=40LM | G=100LM | B=25LM | As per Data sheet | ||||
Voltage alternative:
| 30W LED | 28 | 1400mA | 20-26V |
| 28 | 2450mA | 12-15V | |
| 30 | 1750mA | 18-22V | |
| 30 | 2100mA | 15-18V | |
| 30 | 900mA | 30-36V |
T.D.S. is an Chinese company
T.D.S.main products is high power led which includes :1 watt led , 3 watt led, 3 watt RGB led , 5 watt led,
10 watt led ,15 watt led, 20 watt led, 30 watt led , 50 watt led , 60 watt led , 80 watt led , 100 watt led
, 300W led. We also have 3mm led / 4.8mm / 5mm / 8mm led / 10mm led Led in all colors such
as red , green , blue , yellow , white , warm white , cool white , purple , pink , uv , amber. Our main led is
5mm round led , 5mm oval led, 5mm strawhat
led , 5mm helmet led , 5mm blinking led , 5mm flash rgb led , 5mm screen display led , 5mm
concave led , 5mm traffic light led , 5mm warning board led. The LED can be 3mm / 4.8mm
/ 5mm / 8mm / 10mm in various color and different viewing angle. Such as 5mm round led with 45 degree ,
5mm round led with 15 degree
