12V Led Fishing Chip 30W With Battery Powered

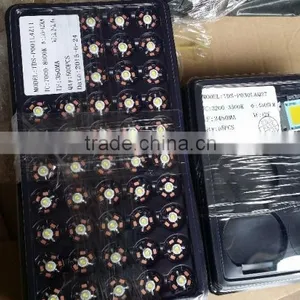

12V Led Fishing Chip 30W With Battery Powered thumbnail-1
12V Led Fishing Chip 30W With Battery Powered thumbnail-2
12V Led Fishing Chip 30W With Battery Powered thumbnail-3
12V Led Fishing Chip 30W With Battery Powered thumbnail-4

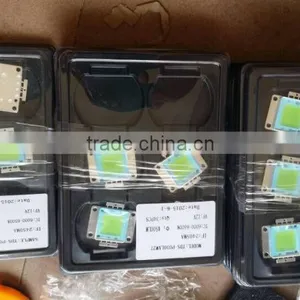

12V Led Fishing Chip 30W With Battery Powered thumbnail-5
12V Led Fishing Chip 30W With Battery Powered photo-1
12V Led Fishing Chip 30W With Battery Powered photo-2
12V Led Fishing Chip 30W With Battery Powered photo-3
12V Led Fishing Chip 30W With Battery Powered photo-4
12V Led Fishing Chip 30W With Battery Powered photo-5
US$ 5 - 10 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-P030LA Series
Chip Material:
InGaN
Emitting Color:
Other, Day White / Natural White/Cool white
Contact Supplier Request Quote Chat Now
Wuxi TDS Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TDS-P030LA Series
Chip Material InGaN
Emitting Color Other, Day White / Natural White/Cool white
Luminous Intensity 110lm/w or 150lm/w
Luminous Flux(lm) 4500lm
Optical Attenuation(%) 0.0001
Power Other, 30W
Power Dissipation 0.005
Color Rendering Index(Ra) 80
Color Temperature 2000-25000K
Operating Temperature(℃) -30, 80
Storage Temperature(℃) -30, 120
Place of Origin Jiangsu, China
Brand Name TDS
Certification CE
Quick Detail

 Attention: Warm White 3500-3800K  Day / Natural White 6000-6200K / Cool white: >7000K

                     The Led Size has different Type. If you have request in its size, please contact                            our salesman.we will give you alternative Led Shape for your Selection.

Remark:  There are 3 different of dimension for 30W LED Like Following:

12V Led fishing chip 30W With battery powered

Name

Model

Color

Angle(°)

wave length/Color     (IF=2.45A)

Luminous flux  (IF=2.45A)

forward voltage (IF=2.45A)




MIN

MAX

LM-1

LM-2

MIN

MAX



30W LED

TDS-P030LRC11

RED

160

620nm

625nm

500

600

12

13



TDS-P030LAD18

BLUE

160

460nm

465nm

400

550

12

13



TDS-P030LAF25

GREEN

160

520nm

525nm

3000

3100

12

13



TDS-P030LAO27

WHITE

160

2000K

3000K

3000

4500

12

13



TDS-P030LAQ27

WHITE

160

3000K

4000K

3000

4500

12

13



TDS-P030LAS27

WHITE

160

4000K

5000K

3000

4500

12

13



TDS-P030LAU27

WHITE

160

5000K

6000K

3000

4500

12

13



TDS-P030LAW27

WHITE

160

6000K

7000K

3000

4500

12

13



TDS-P030LAY27

WHITE

160

7000K

8000K

3000

4500

12

13



TDS-P030LAZ27

WHITE

160

8000K

9000K

3000

4500

12

13



TDS-P030L4RGB

RGB

160±5

R=40LM

G=100LM

B=25LM

As per Data sheet





Voltage alternative:



     30W LED 28 1400mA 20-26V
28 2450mA  12-15V
30 1750mA 18-22V
30 2100mA 15-18V
30 900mA 30-36V
12V Led fishing chip 30W With battery powered

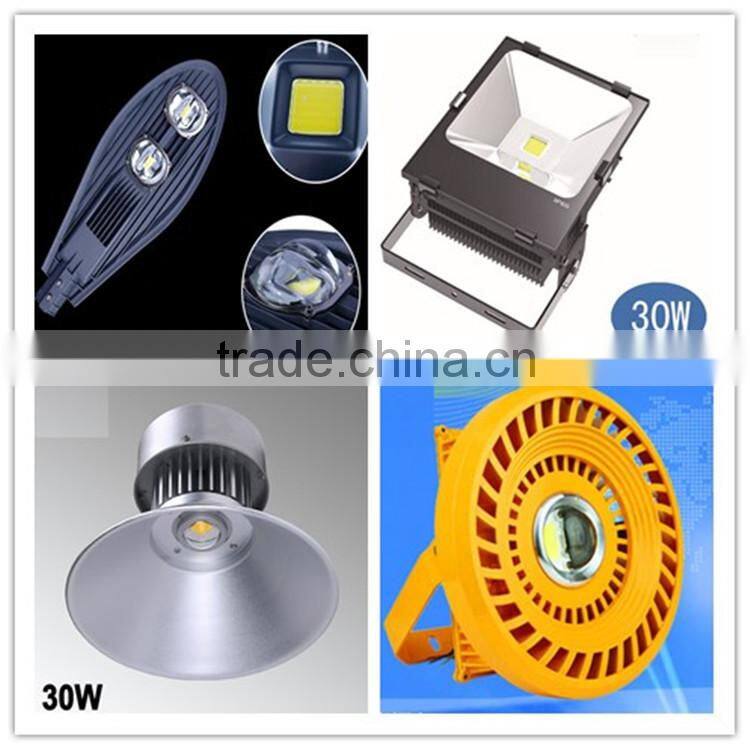

Application

 12V Led fishing chip 30W With battery powered

Material Show

 12V Led fishing chip 30W With battery powered

Company View

 12V Led fishing chip 30W With battery powered12V Led fishing chip 30W With battery powered

Related Product



T.D.S. is an Chinese company
T.D.S.main products is high power led which includes :1 watt led , 3 watt led, 3 watt RGB led , 5 watt led,

10 watt led ,15 watt led, 20 watt led, 30 watt led , 50 watt led , 60 watt led , 80 watt led , 100 watt led

 , 300W led. We also have 3mm led / 4.8mm / 5mm / 8mm led / 10mm led Led in all colors such

as red , green , blue , yellow , white , warm white , cool white , purple , pink , uv , amber. Our main led is

5mm round led , 5mm oval led, 5mm  strawhat

led , 5mm helmet led , 5mm blinking led , 5mm flash rgb led , 5mm screen display led , 5mm

concave  led , 5mm traffic light led , 5mm warning board led. The LED can be 3mm / 4.8mm

 / 5mm / 8mm / 10mm in various color and different viewing angle. Such as 5mm round led with 45 degree ,

5mm round led with 15 degree
