Specifications
EPS Foam block machine1.adopt PLC touch screen
2.fully automatic
d cooling method
4.CE
EPS Foam block machine
three parts:
1. EPS preexpander: it is used in first foam for polystyrene material which has deat with the foaming agent (just is pre-foam

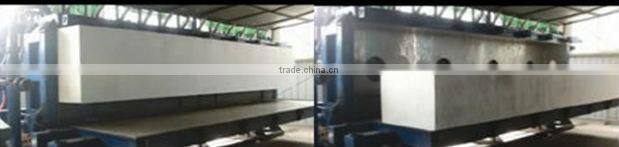

2.EPS block molding machine:it is the large and special machine for producing the expandable polystyrene foam block
3.EPS sheet metal cutting machine:it is used to cut complax shapes of EPS products.

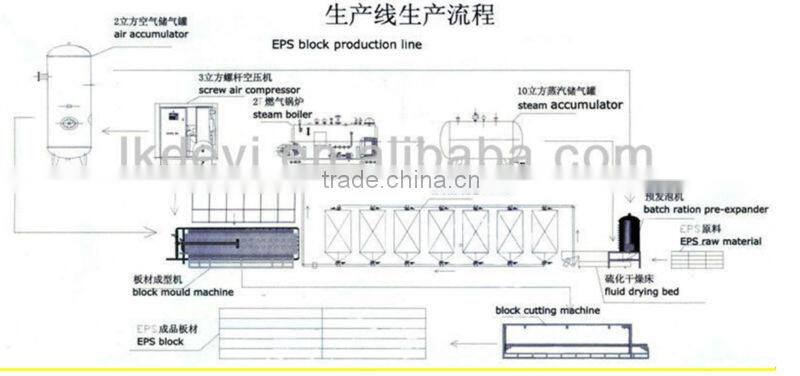

production flow chart
A. EPS pre-expander

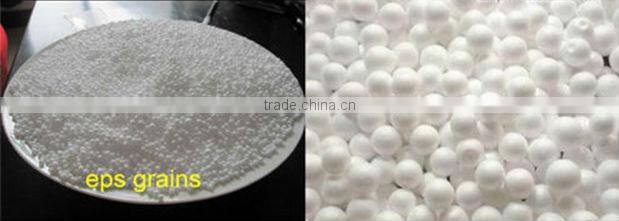

make eps raw material (expanded polystyrene) become big and light foam beads through steam heating. With PLC English touch screen to realize full automatic production for feeding, heatingto ejectfoam beads.

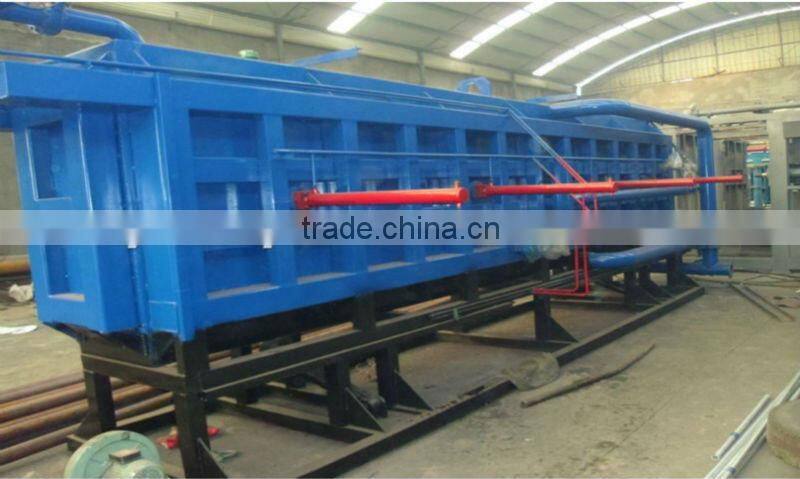

B. Main features of eps block molding machine
1.It is welded by high-quality shape steel and treated in an effective way which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
2. The machine adopts PLC and touch screen for automatic mould opening ,mould closing ,material feeding ,steaming ,temperature keeping ,air cooling ,de-moulding and ejecting;
3. The surface of the mould is made of special aluminum ally which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
4.Adopting advanced moulding technique ,the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block.
Item |
Unit |
PSB-2000 |
PSB-3000 |
PSB-4000 |
PSB-6000 |
PSB-8000 |
Mould chamber internal size |
mm |
2040x1020x530 |
3060x1250x630 |
4080x1250x630 |
6100x1250x630 |
8160X1250X630 |
Mould chamber volume |
M3 |
1.10 |
2.41 |
3.21 |
4. 82 |
6.43 |
Product density |
Kg/m3 |
4-45 |
4-45 |
4-45 |
4-45 |
4-45 |
Product efficiency |
Piece/h |
2-9 |
2-9 |
2-9 |
2-9 |
2-9 |
Steam pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Compressed air inlet diameter |
mm |
80 |
80 |
80 |
80 |
80 |
Steam inlet diameter |
mm |
80 |
80 |
108 |
159 |
159 |
Power supply |
V |
380 |
380 |
380 |
380 |
380
|
Power |
Kw |
7 |
7 |
13 |
13 |
13 |
Dimension |
mm |
3600x2000x3000 |
4500x2150x2950 |
5500x2150x2950 |
7500x2150x2950 |
9500x2150x2950 |
Installed weight |
KG |
2800 |
4600 |
6000 |
9600 |
10600 |

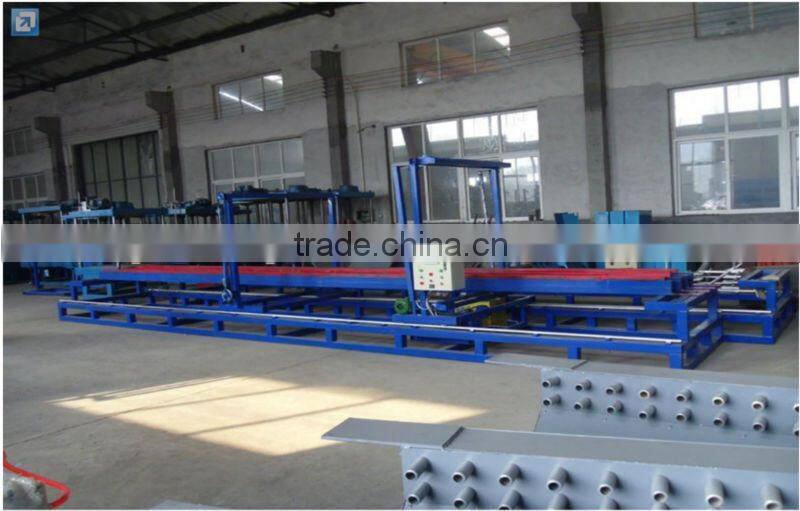

C. EPS Cutting Machine
Adopts high quality rectangle steel pipe which features in reasonable structure, firm, high intension, without deformation. Equipped with horizontal, vertical and block cutting equipment. Stable movement, precise cutting size and adjustable. Realize three directions cutting.
