Specifications
1:Excellent beam quality2:we are manufacture ,so low price
3:no maintenane opreation
4: long service life
good beam quality :
1: quality is much better than traditional solid laser engraving machine, the output is TEM00,
2:focus on the spot diameter less than 20 um.
3: the Divergence Angle is only 0.3mrad
4: Especially suitable for precision engraving.
5: Lightning conversion efficiency to a maximum of 30%, the power consumption less
than 500 w, save energy consumption expenditure.
6: Laser is no need for any maintenance, also need not adjust or clean lens
Advantages:
1, high-definition: the resolution is measured by micron; It is two times clearer that traditional machine.
2, Less power consumption: occapy traditional consumption of one and two-fifths to one and ten.
3, high-speed:the speed is three to five times faster than traditional machine.
4, stability: the stability of machine is much better than similar counterpart.
5, long life:its lifespan is ten times longer than traditional machine.
laser long service life :HL-FM series optical fiber laser engraving machine use laser diode, average working time is 100000 hours, so, HL-FM series laser engraving machine service life is long
Small size, applicable in the bad environment:the processing speed is 2-3 times than traditional laser engraving machine
Fiber Laser Marking Machine principle: Fiber laser using an integrated overall structure of the optical contamination with other lasers do not have high efficiency, long life and less maintenance performance.
Optical fiber laser parameters
| average output power | 10w |
| power adjust range | 10-100% |
| repeat frequency | 20-80KHz |
| Output beam quality | 1.4-1.8 |
| Divergence Angle | 0.3mrad |
| Electro-optic conversion rate | 30% |
engraving performance
| engraving style | Stationary or mobile marking |
| engraving line depth | 0.01-0.2mm |
| Minimum gathering spot | 0.01mm |
| Minimum character | 0.1mm |
| Repeat precision | 0.002mm |
| engraving speed | 12000mm/s |
| engraving format | all kinds of format |
| Standard character type | Vector type and bitmap graphics, text |
| Operating system | WIN98 ,PLT,PCX,DXF,BMP,SHX,TTF |
| engraving scope | 50×50/100 × 100/150 × 150mm |
| Size | 550mm × 900mm × 1200mm |
| Power supply | 100-240v,500w |

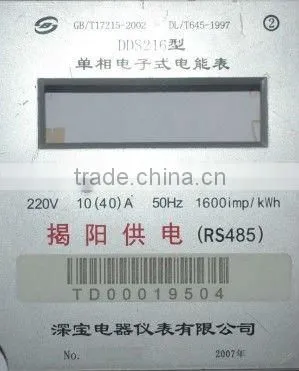

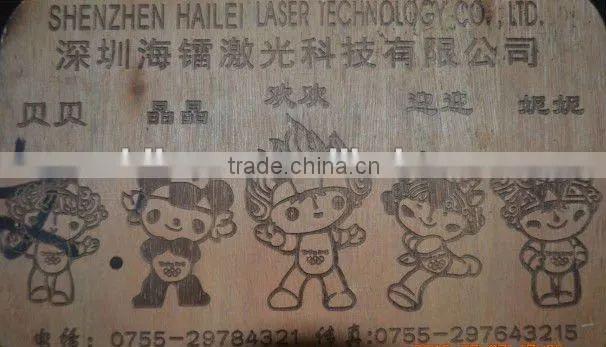

applycation range :
2. Ceramics, EP materials; marking of electronic component package, IC, etc.
3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
4. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
5. Keyboard and keystoke; Fine Marking of keyboard and keystoke.
[note] :Welcome to send samples to our company, we can make samples for free and choose the most suitable machine for you or do customize for your special request
